KEY DESCRIPTION OPTIONS
Operating from or Switch to Battery Power. Green when current
state (Pressing key performs no action). White if selection is
possible.
Status or Action
Operating from or Switch to External Power. Green when current
state (Pressing key performs no action). White if selection is
possible.
Status or Action
Restart (Depending on Air/Ground Logic State). Action
External Power Source Voltage. Displays voltage level of
inputpower.
Status Only
BATTERY STATUS DESCRIPTION
Status Only
##% Displays battery % charge.
CHARGING
The battery has sucient voltage and can
accept charging, aircraft power is available,
and the temperature sensor is within limits
(0°C to +55°C).
FAILED
The battery voltage is less than 6 volts; i.e.
insucient for charging.
READY
The connected battery and battery voltage
are satisfactory, but the temperature limits
(0°C to +55°C) that will permit charging
have been exceeded.

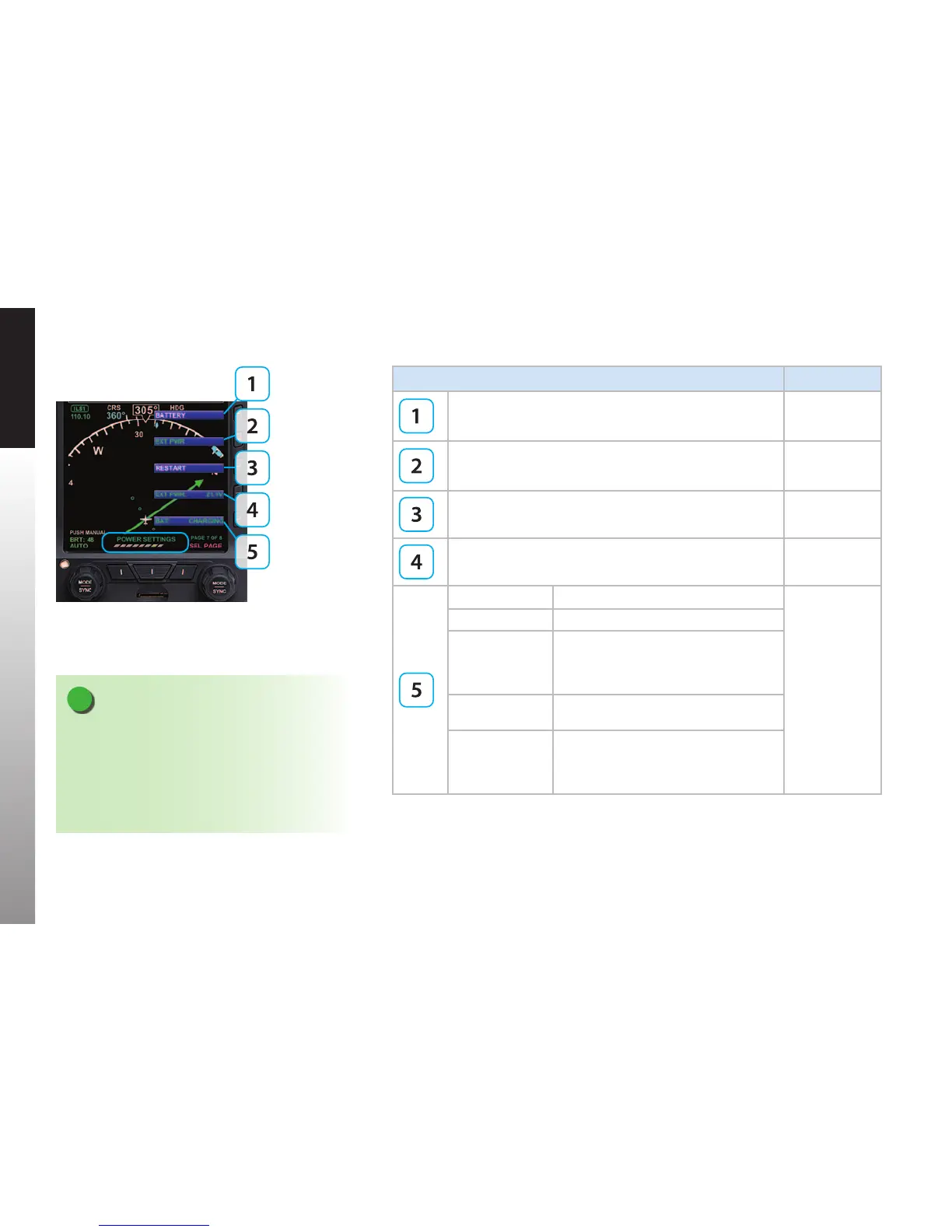

Table 5-7
Menu – POWER SETTINGS
Figure 5-7
POWER SETTINGS
NOTE
For external/battery power control, the legend of
the current power source is shown in green; pressing
the associated menu key will perform no action. The
legend of an available power source is shown in white,
and pressing the associated menu key changes input
power to that power source.
