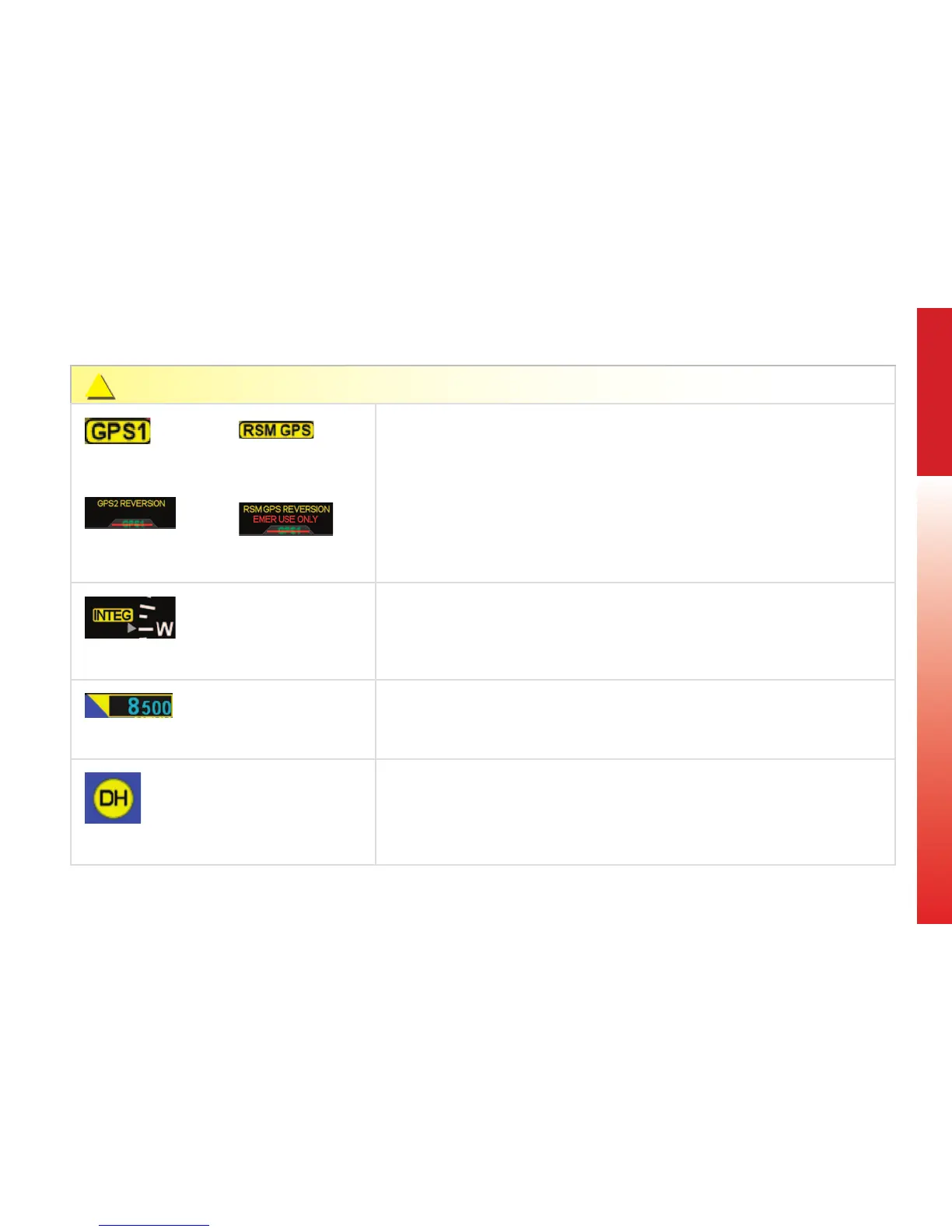

CHAPTER 6 EXPANDED EMERGENCY AND ABNORMAL PROCEDURES
EFD1000 C3 Pro PFD Pilot’s Guide
CAUTION
Figure 6-20
GPS Invalid
Figure 6-21
RSM GPS
Presented when a congured GPS source’s data is invalid or unavailable. GPS# or RSM REVERSION
annunciations indicate the current GPS basemap source.
Figure 6-22
GPS Reversion
Figure 6-23
GPS Reversion Emergency
Figure 6-24
GPS Integrity Flag
Presented when the PFD Selected CDI Navigation Source is a GPS and that GPS is sending an
Integrity alert (see GPS AFMS for more information)..
Figure 6-25
Altitude Caution
Presented to indicate the aircraft is reaching (steady) or deviating (ashing) from the preset altitude.
May be accompanied by an optional one-second steady tone.
Figure 6-26
Decision Height Caution
Presented when a connected radio altimeter indicates it has reached the altitude set by the pilot
(see Radio Altimeter AFMS for more information).
