4.4.8. Bearing Pointer Source Selection
When the 360° Compass mode is selected, single- and double-line bearing pointers are
available (Figure 4-76). The bearing pointers are independent of the CDI and provide
supplemental navigation information by pointing to active GPS waypoints or navaids.
By default, the bearing pointers are o and not displayed.
Single-Line Bearing Pointer
Single-Line Bearing Pointer Source Information
Top Line Distance (nm) to active GPS waypoint
Bottom Line
Waypoint identier, station identier (when available, or the tuned
frequency of the associated VHF NAV radio (when available)
Single-Line Bearing Pointer Icon
Double-Line Bearing Pointer
Double-Line Bearing Pointer Source Information
Top Line Distance (nm) to active GPS waypoint
Bottom Line
Waypoint identier, station identier (when available), or the tuned
frequency of the associated VHF NAV radio (when available)
Double-Line Bearing Pointer Source
Table 4-5
Bearing Pointer Description
NOTE
Distance to waypoint < 100nm, display is in tenths of a
mile, i.e., ##.#.
Distance to waypoint is 100 – 9999nm, display in
whole miles, i.e., ####.
Distance to waypoint is > 9999nm, display is dashed,
i.e., ----.

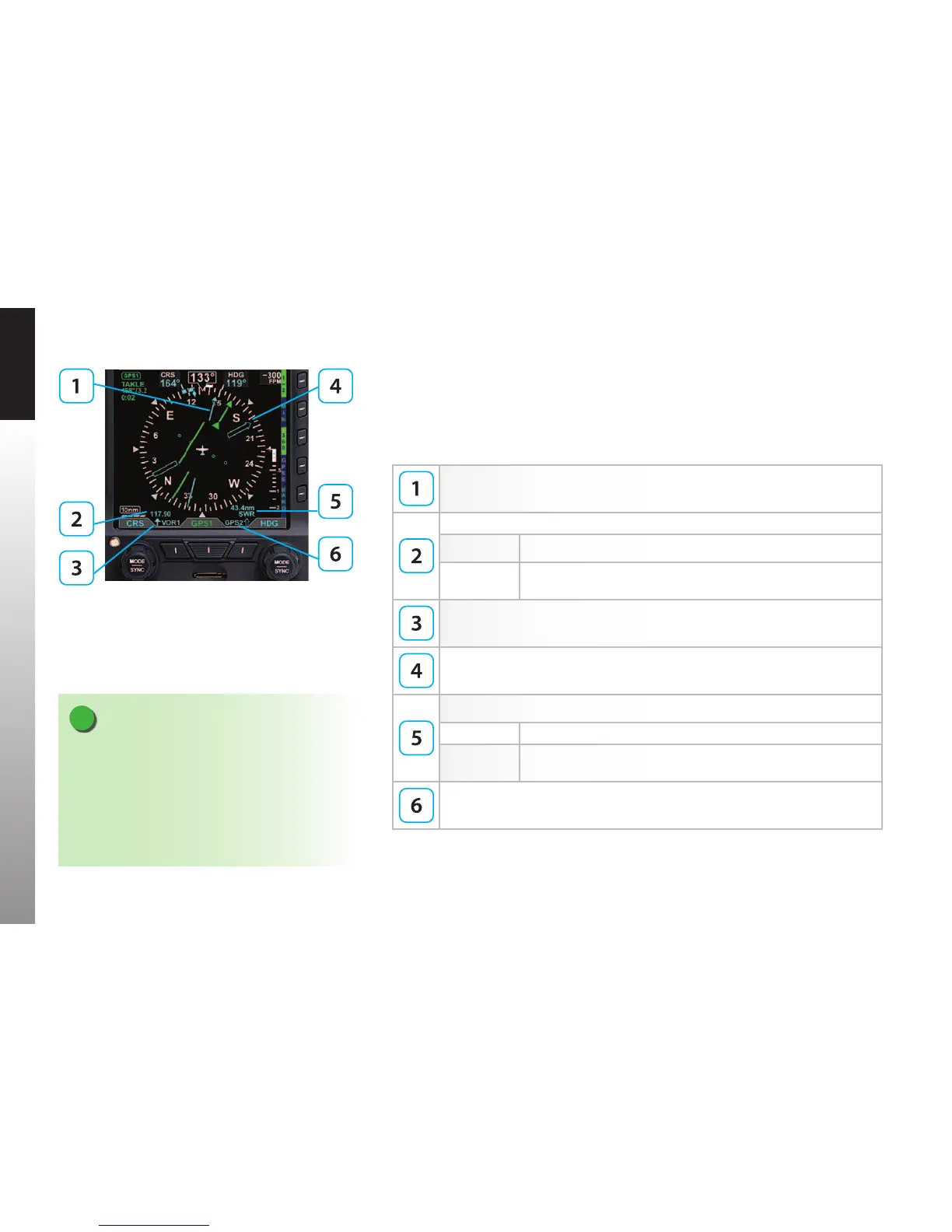

Figure 4-76
Bearing Pointer Description
