4.4.2. Course Pointer
For all Compass Modes, the arrowhead of the Course Pointer aligns with the
corresponding value on the compass scale regardless of the aircraft heading. The ARC
Compass HSI and CDI Course Pointers are dierent and are described in Table 4-2.
COMPASS DESCRIPTION
ARC HSI
The Course Pointer length shortens as necessary when rotated to remain
within the display area (Figure 4-49).
ARC CDI
The Course Pointer is shown as a stub arrow or tail whenever the CRS value
or its reciprocal falls within the displayable range of the compass scale arc
(Figure 4-50 and 4-51).
Table 4-2
ARC Compass Mode Course Pointer Display

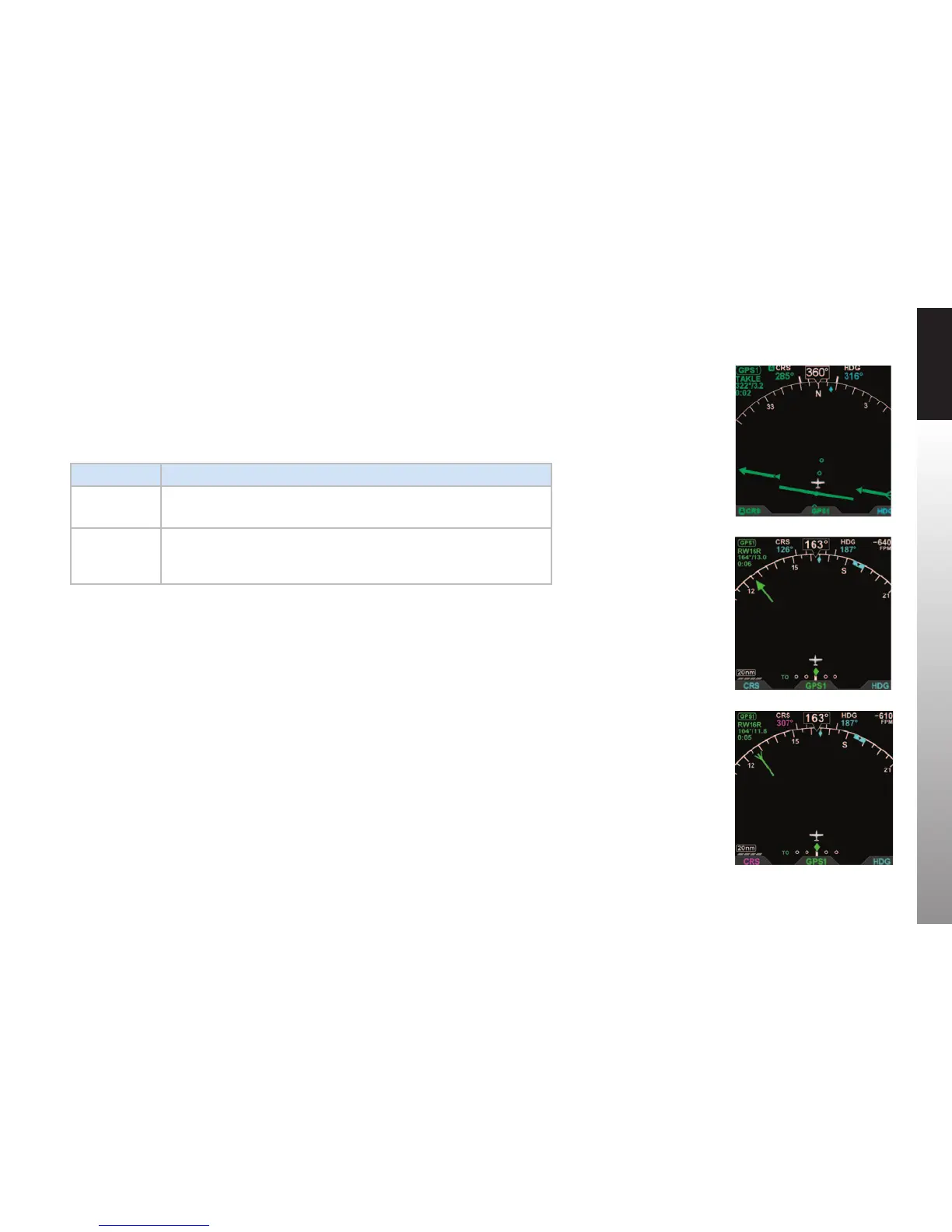

Figure 4-49
Reduced Length Course Pointer,
ARC HSI Compass Mode
Figure 4-50
Stub Course Arrowhead ,
ARC CDI Compass Mode
Figure 4-51
Stub Course Tail , ARC
CDI Compass Mode
