The ARC CDI Compass Mode uses a xed CDI, resembling a contemporary GPS
navigation deviation display. The ARC CDI Compass Mode is intended to maximize the
lower display area for map and ight plan data (Figure 4-42).
Select ARC CDI/HSI Compass Mode
1. Press the MENU Button.
2. Rotate the Right Knob to the GENERAL SETTINGS A page
(Figure 4-43).
3. Press the ARC MODE Menu Key.
The Menu label turns magenta, and the EDIT VALUE label displays above the Right Knob
(Figure 4-44).
4. Rotate the Right Knob to select either HSI or CDI (Figure 4-45).
5. Press the MENU Button to exit.

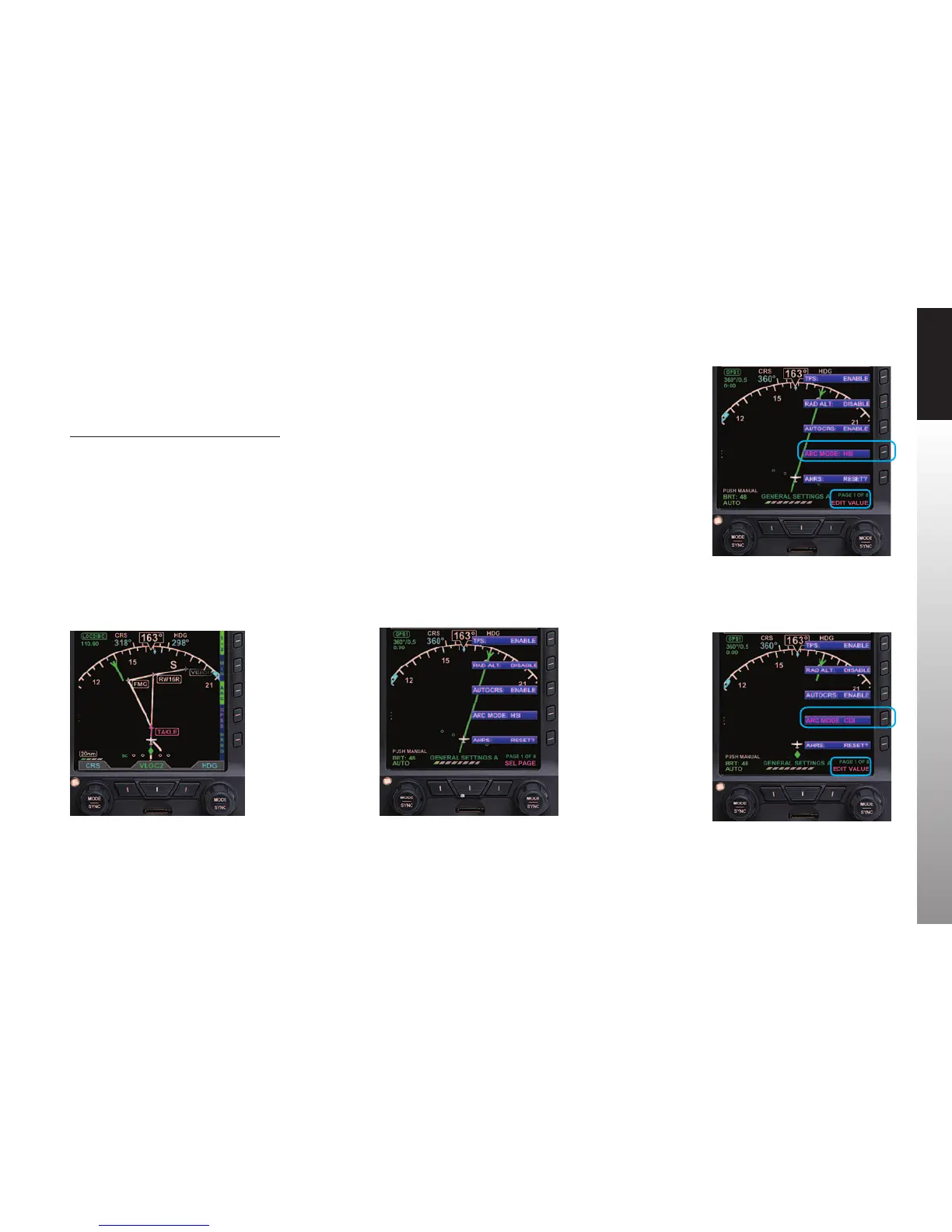

Figure 4-45
CDI ARC Compass MODE Selected
Figure 4-44
Changing the ARC Compass MODE
Figure 4-43
GENERAL SETTINGS A
Figure 4-42
ARC CDI Compass Mode
