Select a Compass Mode
• Press the 360/ARC Hot Key to alternately select either the 360° (Figure 3-30)
or the ARC (Figure 3-31) Compass Mode.
We set cruise power and lean the mixture. As the airplane stabilizes in cruise, we check
the Data Bar to monitor performance. True Airspeed (TAS) is close to book performance
for this altitude and power setting. OAT is close to ISA. Winds aloft are close to forecast,
about a 30º left quartering headwind at 15 knots, so we’ll expect to gain some ground
speed due to a stronger tailwind component when we turn northwest toward Reno.
Check TAS, GS, and winds and temperature aloft on the Data Bar (Figure 3-32).
Continuing enroute, we monitor progress along our ight plan on the extended
forward view of ARC mode, watching as GPSS keeps us exactly centered on course
through several turns on the airways.

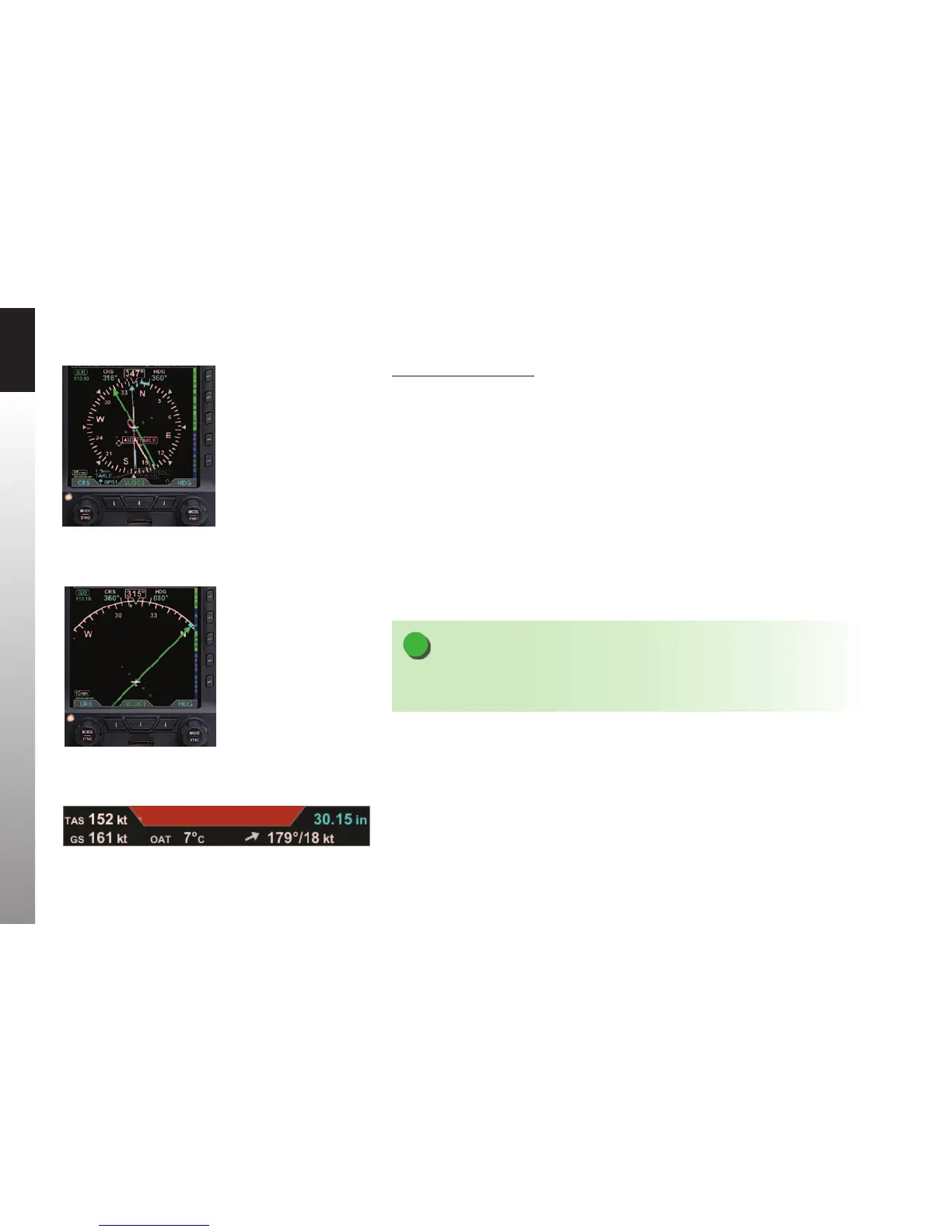

Figure 3-30
360° Compass Mode
Figure 3-31
ARC CDI Compass Mode
NOTE
Each HSI Compass Mode (360 and ARC) retains its own Range and Map declutter settings
when switching between the two.
Figure 3-32 Data Bar
