2.2.1.4. Using the Knobs (Example)
How to Set the Heading Bug (HDG)
1. Rotate the Right Knob to the desired heading value, shown both by
the position of the Heading Bug and the numeric value in the Selected
Heading Field (Figure 2-5). The HDG label, Heading Bug and the Selected
Heading Field appears in magenta
2. After 10 seconds of inactivity, the knob defaults to HDG. The HDG label,
Heading Bug and Selected Heading Field value will appear in cyan
(Figure 2-6).
2.2.2. Navigation Source Select Buttons
The three buttons on the bottom of the PFD (Figure 2-7) allow the pilot to select
the navigation source for the CDI and Bearing Pointers (see Section 4.4.5. CDI
Navigation Source and Section 4.4.8. Bearing Pointer Source Selection for more
detailed information).

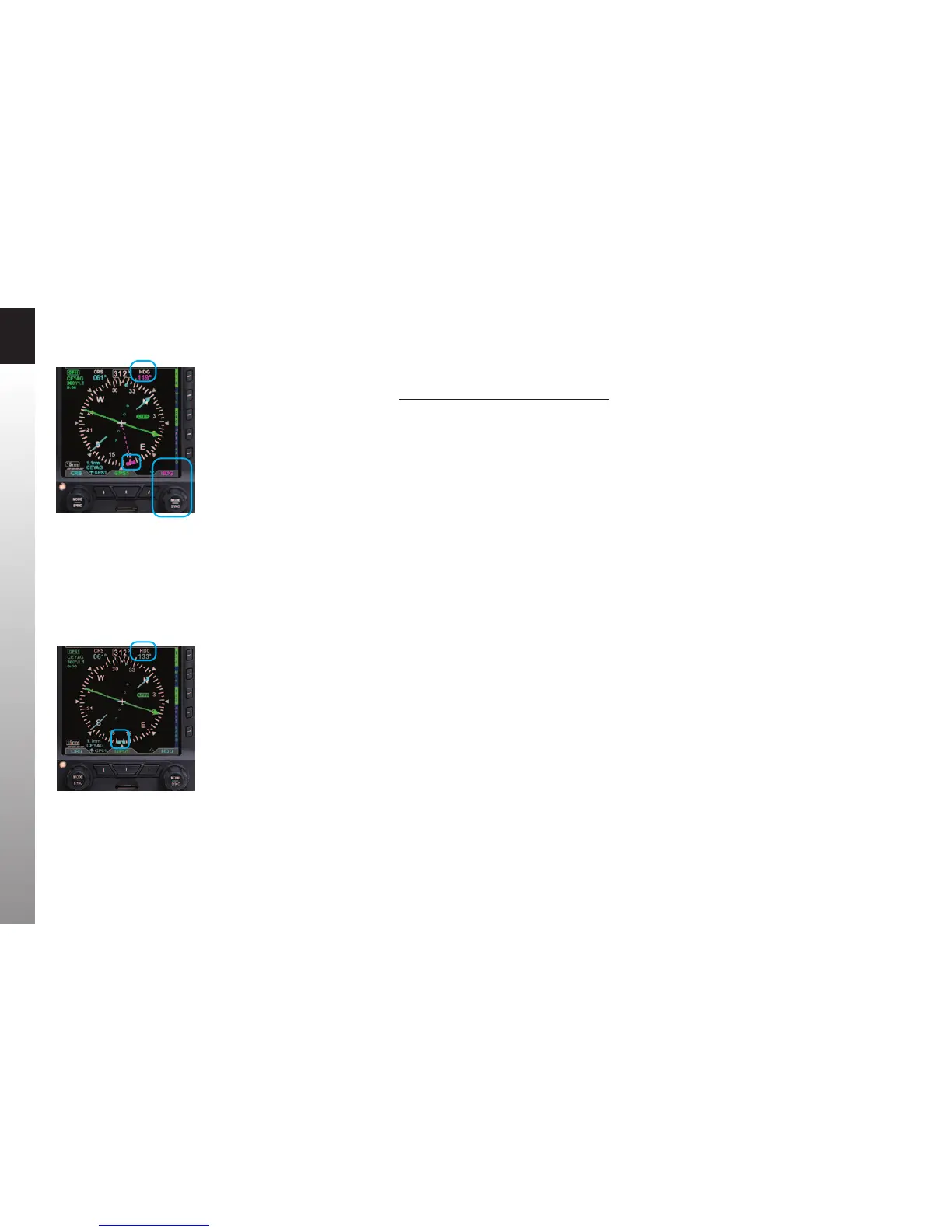

Figure 2-5
Editing the HDG eld
Figure 2-6
HDG eld updated and inactive
