DATA BAR
38 True Airspeed (TAS) or Mach number
39 Barometric Pressure Setting Field
40 Wind Direction and Speed
41 Wind Direction Arrow
42 Outside Air Temperature (OAT)
43 Ground Speed
NAVIGATION DISPLAY
44 Navigation Display
45 Ownship Symbol
46 Course Pointer
47 TO/FROM Indicator
48 Rate of Turn Indicator
49 Ground Track Indicator
50 Numerical Direction Indicator
51 Selected Course (CRS) Field
52 Selected Heading Field
53 Heading Bug
54 Course Deviation Scale
55 Course Deviation Indicator
56 Vertical Speed Numerical Value

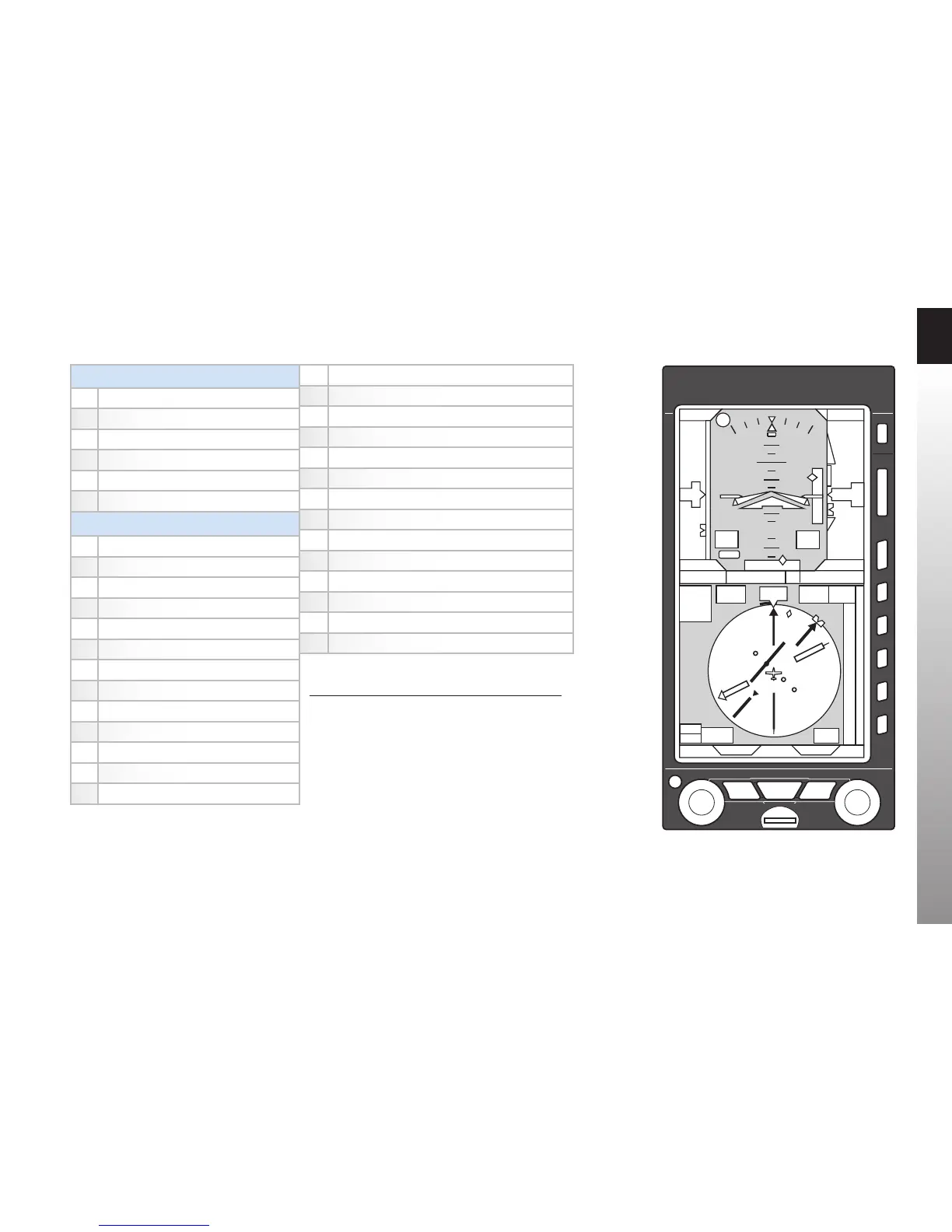

Figure 2-2
EFD1000 C3 Pro PFD Display Elements
Table 2-1
PFD Components
57 Vertical Speed Tape
58 Single-Line Bearing Pointer
59 Single-Line Bearing Pointer Source
60 Single-Line Bearing Pointer Source Info Block
61 Double-Line Bearing Pointer
62 Double-Line Bearing Pointer Source
63 Double-Line Bearing Pointer Source Info Block
64 Selected CDI Navigation Source
65 Selected CDI Navigation Source Information Block
66 Left Knob State
67 Right Knob State
68 Hot Key Labels
69 Basemap Range
70 Declutter Level
1. The Hot Key menu 2/2 is only available when the PFD is
congured with the Evolution Hazard Awarenes Trac option
and the associated sensor(s)
2. With compatible autopilots
3. With compatible radar altimeters
4. When congured with the Evolution Synthetic Vision option,
refer to the Evolution Synthetic Vision Pilot Guide Supplement
091-00031-001 for additional Hot Key menu
