When available, the bearing and distance to station is displayed on the third line of the
information block in the format dddº/nnnn or dddº/nn.n, where ddd is the bearing in
degrees and nnnn or nn.n is the distance in nautical miles (e.g., 360º/1103 or 322º/3.2,
shown in Figure 4-64). The distance to waypoint is displayed as follows:
• Distance to waypoint < 100nm, display is in tenths of a mile, i.e., ##.#.
• Distance to waypoint is 100–9999nm, display in whole miles, i.e., ####.
• Distance to waypoint is > 9999nm, display is dashed, i.e., ----.
When available, the estimated time enroute information is displayed on the fourth line
of the information block in the format h:mm (where h is hours and mm is minutes).
When CDI Navigation Source data is invalid or unavailable from a congured navigation
source, the HSI course deviation bar and the TO/FROM indicator are removed from the
display (Figure 4-65). Additionally, the selected CDI Navigation Source label in the CDI
Source Information Block is slashed with a red line (Figure 4-66).
When information for a congured and selected navigation source is unavailable or is
invalid, the CDI Source Information Block is blank (Figure 4-67).

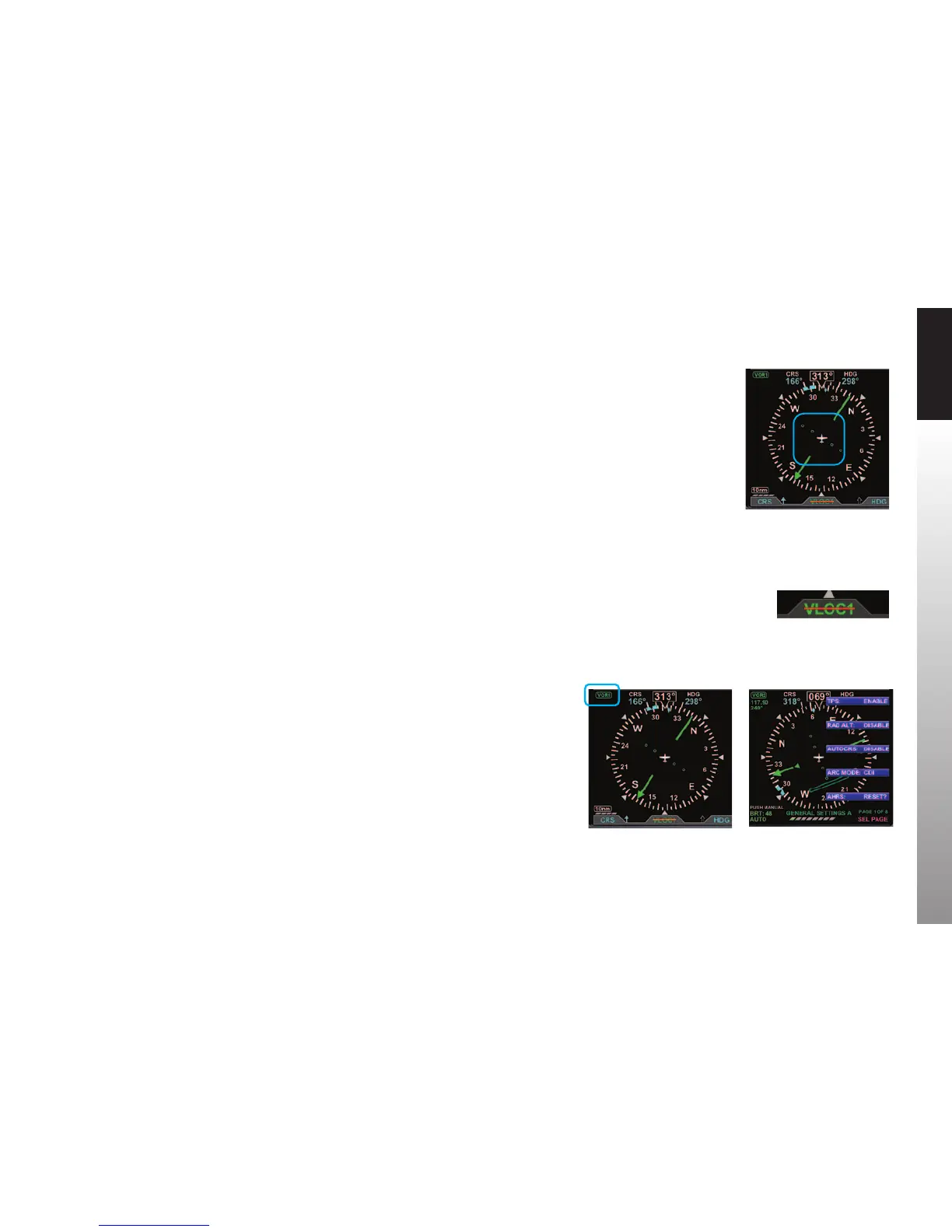

Figure 4-66
Invalid CDI Navigation Source Label
Figure 4-65
No Course Deviation Bar or
TO/FROM Indicator
Figure 4-67
CDI Source Information Blank Block
Figure 4-68
Menu, GENERAL SETTINGS
