20 Configuring FXS Ports and PSTN Trunks
This section describes how to configure FXS ports and PRI (i.e., E1/T1) or BRI trunks
connected to the PSTN Gateway.
20.1 Enabling FXS Ports and PSTN Trunks
The procedure below describes how to enable the FXS ports and PSTN trunk (E1/T1)
channels of the Enhanced gateway. This is done by defining telephone numbers for the
channels and assigning them to Trunk Groups. To ensure correct routing of IP-to-Tel calls,
you need to define different Trunk Groups for the digital trunk and the FXS module.
To enable the FXS ports and PSTN trunks:
1. Open the Trunk Group Table page (Configuration tab > VoIP menu > GW and IP to
IP > Trunk Group > Trunk Group).

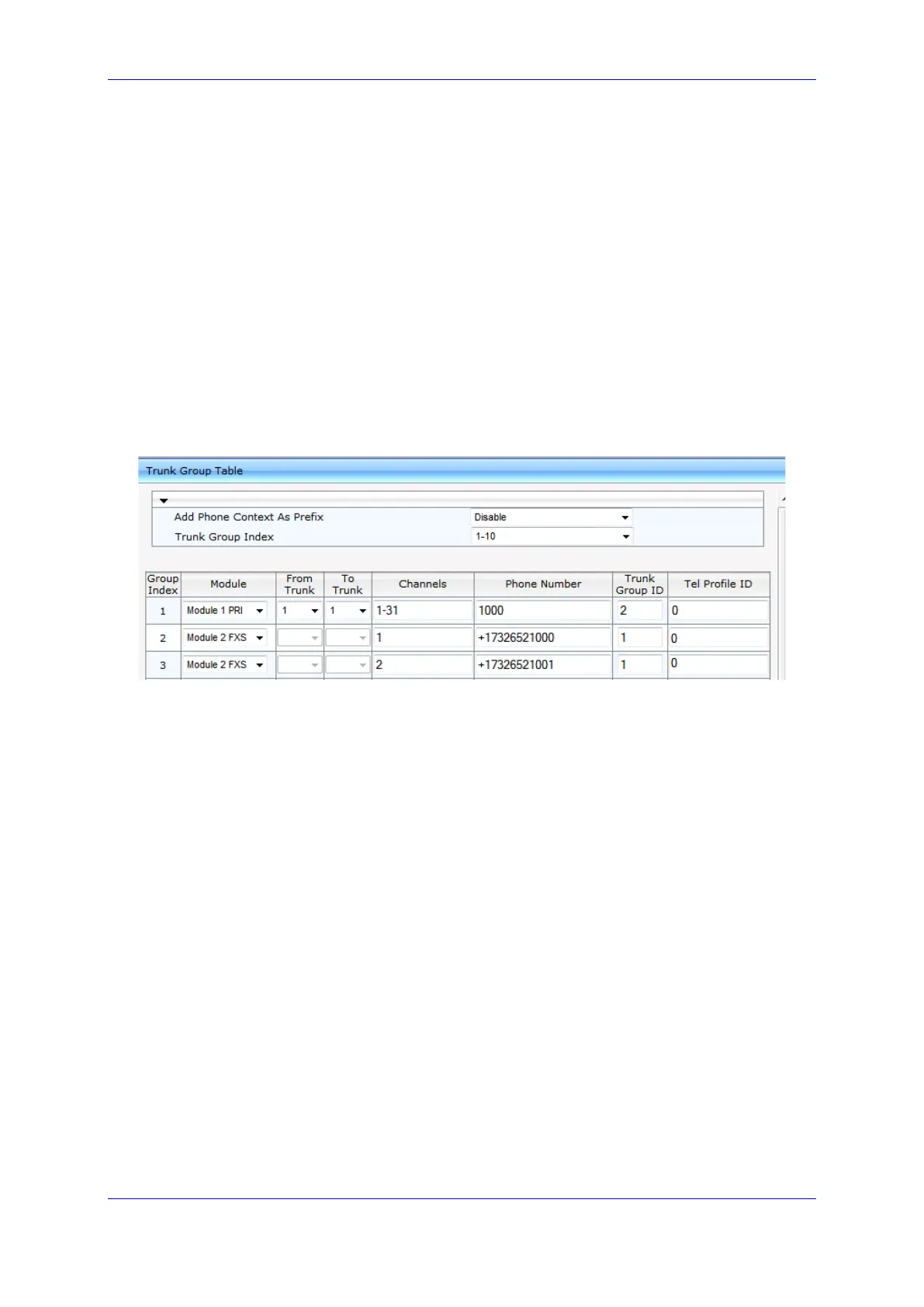

Figure 20-1: Trunk Group Table Page
2. Define the following Trunk Groups:
• Trunk Group #2: PRI module (E1/T1) with one span (1-31 channels)
• Trunk Group #1: FXS module with two FXS channels – Channel 1 with phone
number +17326521000 and Channel 2 with phone number +17326521001
• Those numbers need to be configured as TelUri numbers for analog devices in
Lync environment using the powershell command New-CsAnalogDevice.
3. Click Submit to apply your settings.
4. On the toolbar, click Burn to save the changes to the Enhanced gateway flash
memory.
