Installation & Maintenance Manual 60 Document #: LTRT-40111

Mediant 1000B SBA

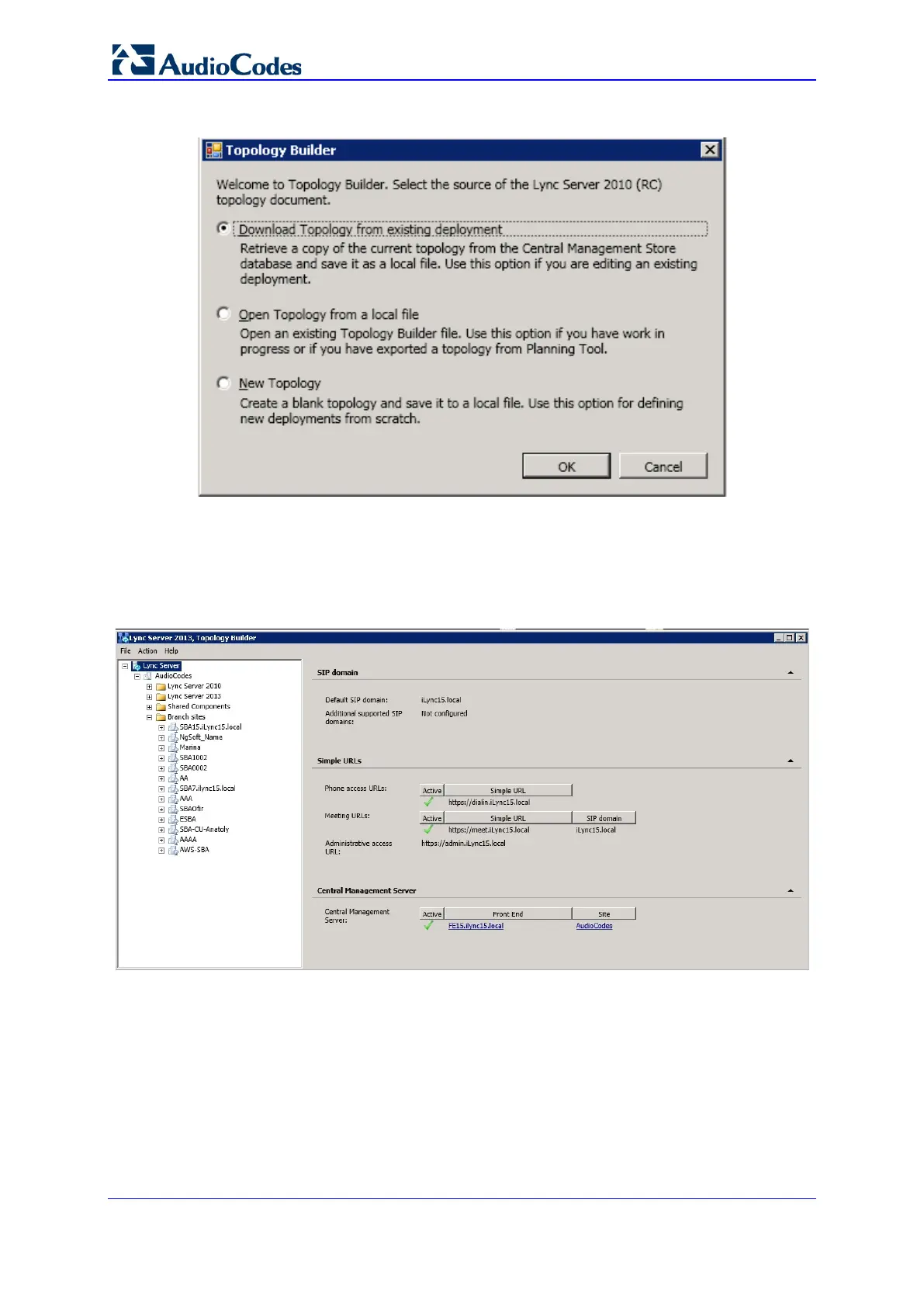

Figure 9-4: Topology Builder Lync 2010

2. Select the Download Topology from existing deployment option (assuming your Lync

Server 2013 or Lync Server 2010 deployment already has a topology), and then click

OK; a dialog box opens, prompting you to save the existing topology file.

3. Save the topology; the following example screens appears:

Figure 9-5: Lync Server 2013 Topology Builder
