Installation & Maintenance Manual 224 Document #: LTRT-40111
Mediant 1000B SBA
4. Plug the USB dongle into the USB port on the OSN module (see Figure 30-1 and
Figure 30-2).
5. Power off and then power on Mediant 1000B to reboot the OSN server; during reboot,
from the USB in the terminal window, the following message is displayed: “Windows is
loading files…”, as shown in the figure below.

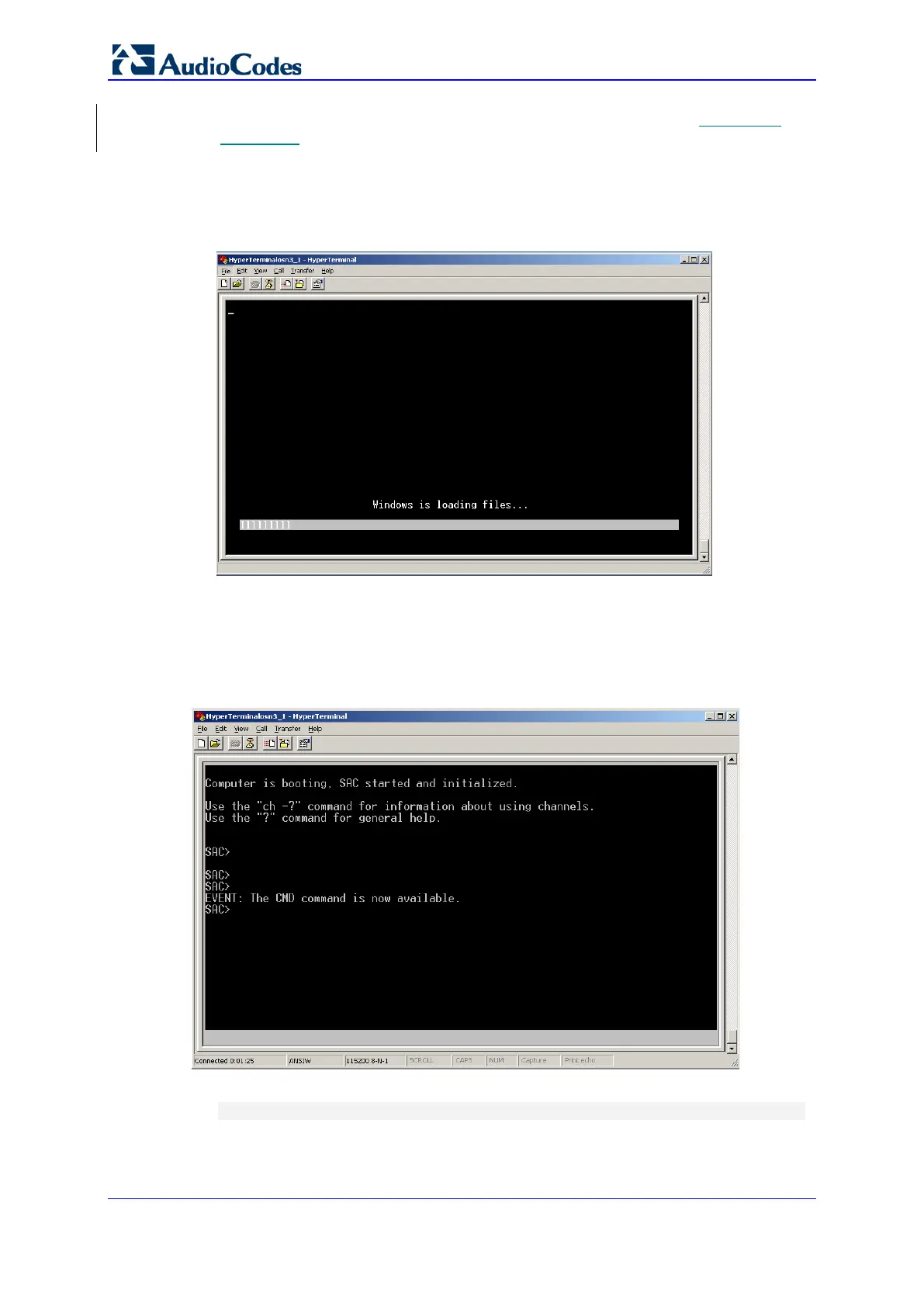

Figure 30-8: Windows Loading Files
In a few moments, the special administration console (SAC) prompt appears and the
following message is displayed: “Computer is booting. SAC is started and initialized.”
6. Wait for the next message: “The CMD command is now available.”, as shown in the
figure below.
Figure 30-9: SAC Started
7. Start the command-line console, by typing the following:
SAC> cmd
