Installation & Maintenance Manual 82 Document #: LTRT-40111
Mediant 1000B SBA

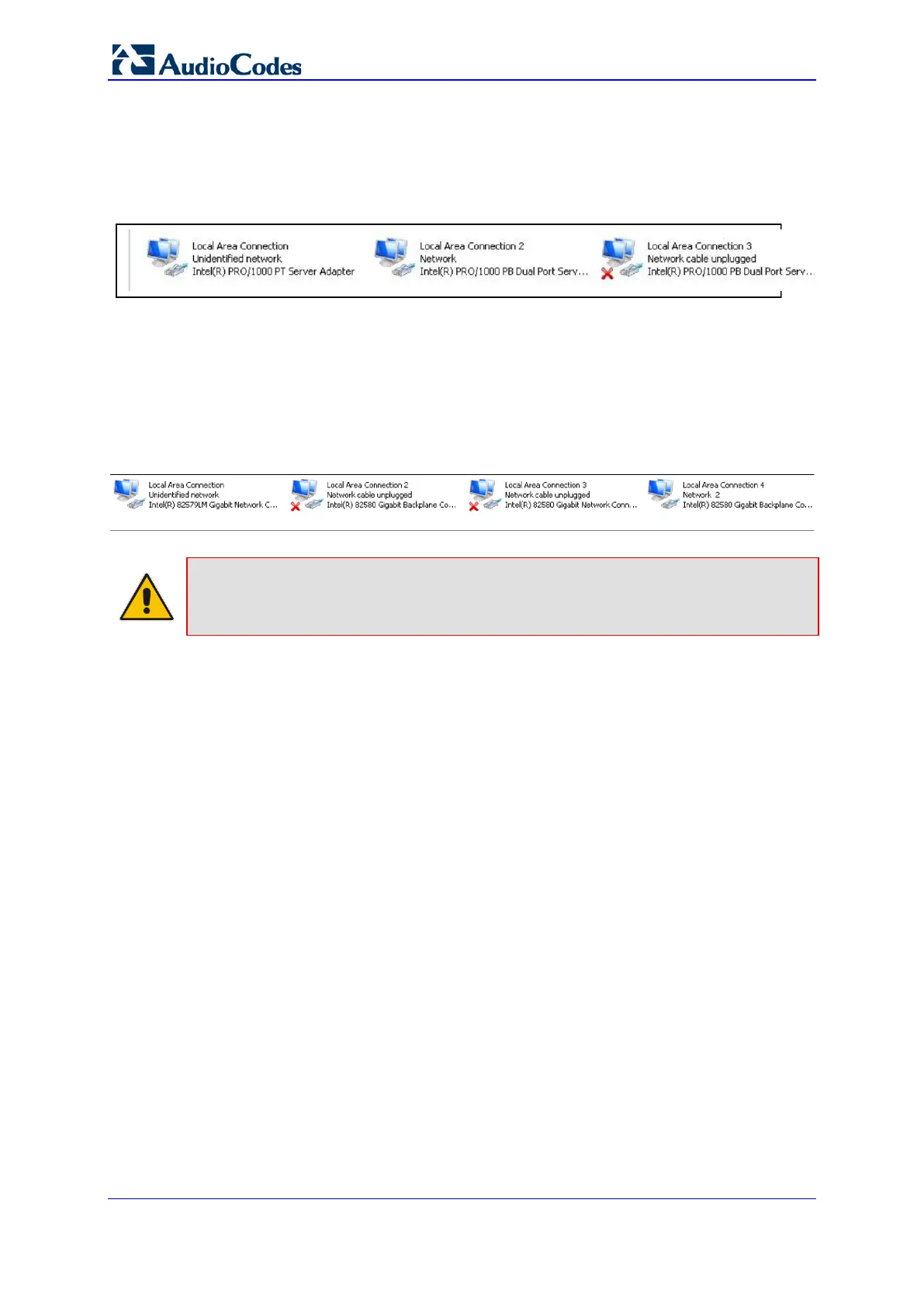

The following figure shows an example of the configured Ethernet ports on the OSN3
Windows server. In this example, the disconnected internal NIC is labeled "Local Area
Connection", the connected external NIC is labeled "Local Area Connection 2" and the
disconnected external NIC is labeled "Local Area Connection 3".
Figure 11-3: OSN3 SBA Server
The following screen shows an example of the configured Ethernet ports on the OSN3B
Windows server. In this example, the disabled internal NIC is labeled "Local Area
Connection", the disconnected external NIC is labeled "Local Area Connection 2", the
disconnected internal NIC is labeled "Local Area Connection 3" and the connected external
NIC is labeled "Local Area Connection 4". Note that whenever you connect or disconnect a
network cable from one of the interfaces, the status changes.
Figure 11-4: OSN3B SBA Server
Note: Whenever you connect or disconnect a network cable from one of the interfaces,
the status icons displayed in the example screens above change.
3. Select the "Use following IP" option.
4. Confirm/change the IP address.
5. Confirm/change the IP mask.
6. Confirm/change the default IP gateway.
7. Select the "Use the following DNS address" option.
8. Enter the details of the DNS server.
9. Click Apply. If the IP address has changed, you will be required to login again.
