Installation & Maintenance Manual 9. Defining the Branch Office Topology using Topology Builder
Version 6.8 61 Microsoft Lync Server

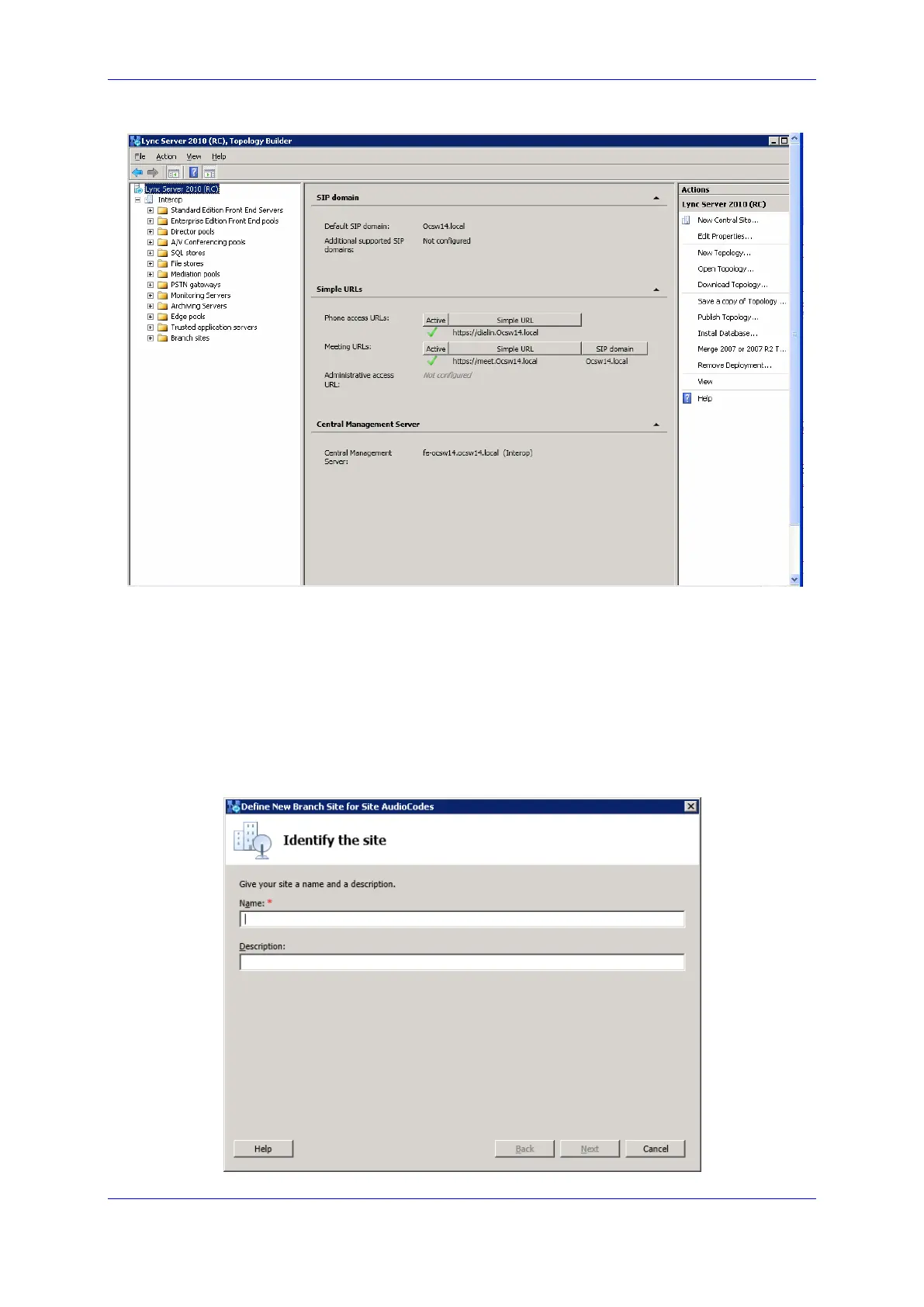

Figure 9-6: Lync Server 2010 Topology Builder
4. From the Topology Builder console tree, do one of the following:
• If you used the Planning tool to design your Enterprise Voice topology, expand
the Branch sites node, and then expand the name of the branch site you
specified in the tool. To modify each section of the branch office, right-click the
branch site, and then from the shortcut menu, choose Edit Properties.
• If you did not use the Planning tool, right-click the Branch sites node, and then
from the shortcut menu, choose New Branch Site; the following dialog box
appears:
Figure 9-7: Identify the Site
