Installation & Maintenance Manual 9. Defining the Branch Office Topology using Topology Builder

Version 6.8 59 Microsoft Lync Server

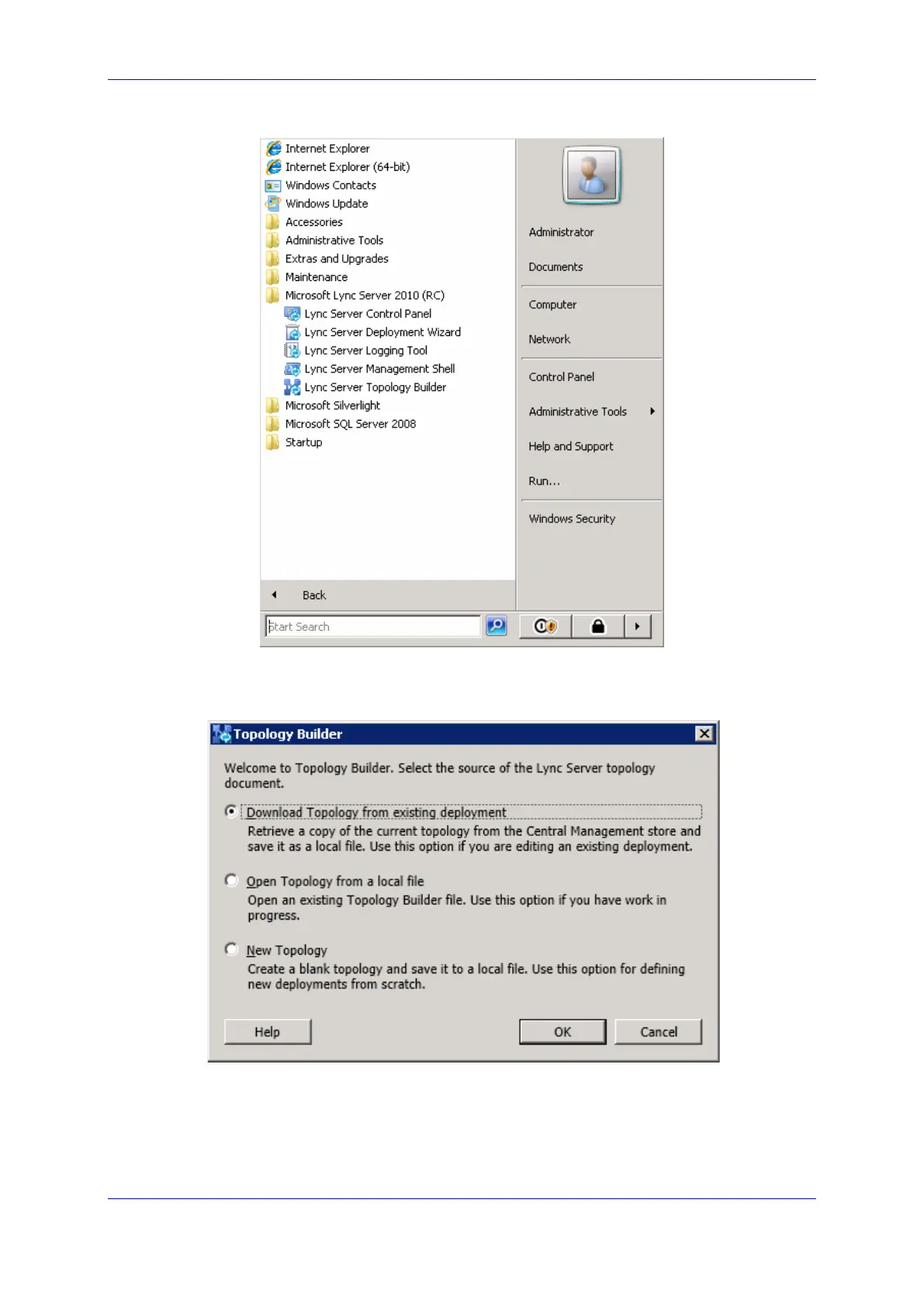

Figure 9-2: Menu Path to Topology Builder Program Lync 2010

The Topology Builder opens as shown in the examples below:

Figure 9-3: Topology Builder Lync 2013
