• For connecting to the network via the external NIC:
a. Determine the NIC used for the Ethernet LAN port, by removing the network
cable from the Ethernet port and viewing on the monitor that the NIC (ID)
has changed to "Disconnected". This is the NIC corresponding to the
Ethernet LAN port.
b. Reconnect the network cable and then do one of the following:
If you have a DHCP server in your network, note the IP address
assigned to the Ethernet LAN port.
If you are not using a DHCP server, then assign a static IP address to
the NIC of the Ethernet LAN port.
c. Skip to Step 9.
3. Connect your PC to the OSN server's serial port:
• OSN3B/OSN4: Using the supplied micro USB- to-USB cable adapter, connect
the micro USB connector end to the OSN serial port on the OSN3B/OSN4
module ( ), and then connect the other end of the cable (USB) to the serial
interface port on your PC.

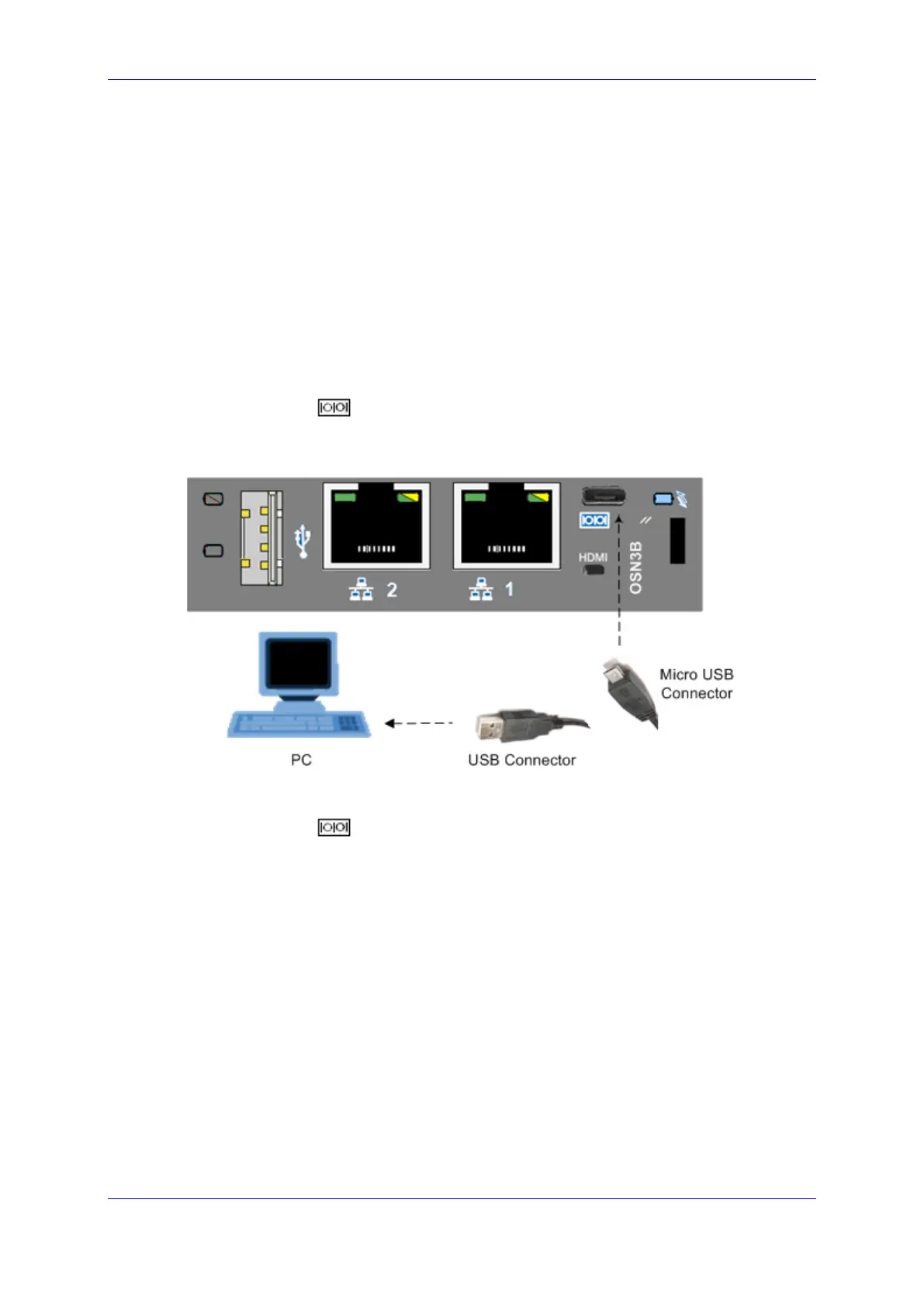

Figure 30-17: Cabling OSN3B/OSN4 to PC for Serial Communication
• OSN3: Connect an RJ-45 network cable to the RJ-45 serial port on the OSN3
module ( ), and then connect the other end of the cable to the serial port of
your PC.
