Installing under Windows
104 AX3000 Models 80 and 85 - User's Manual

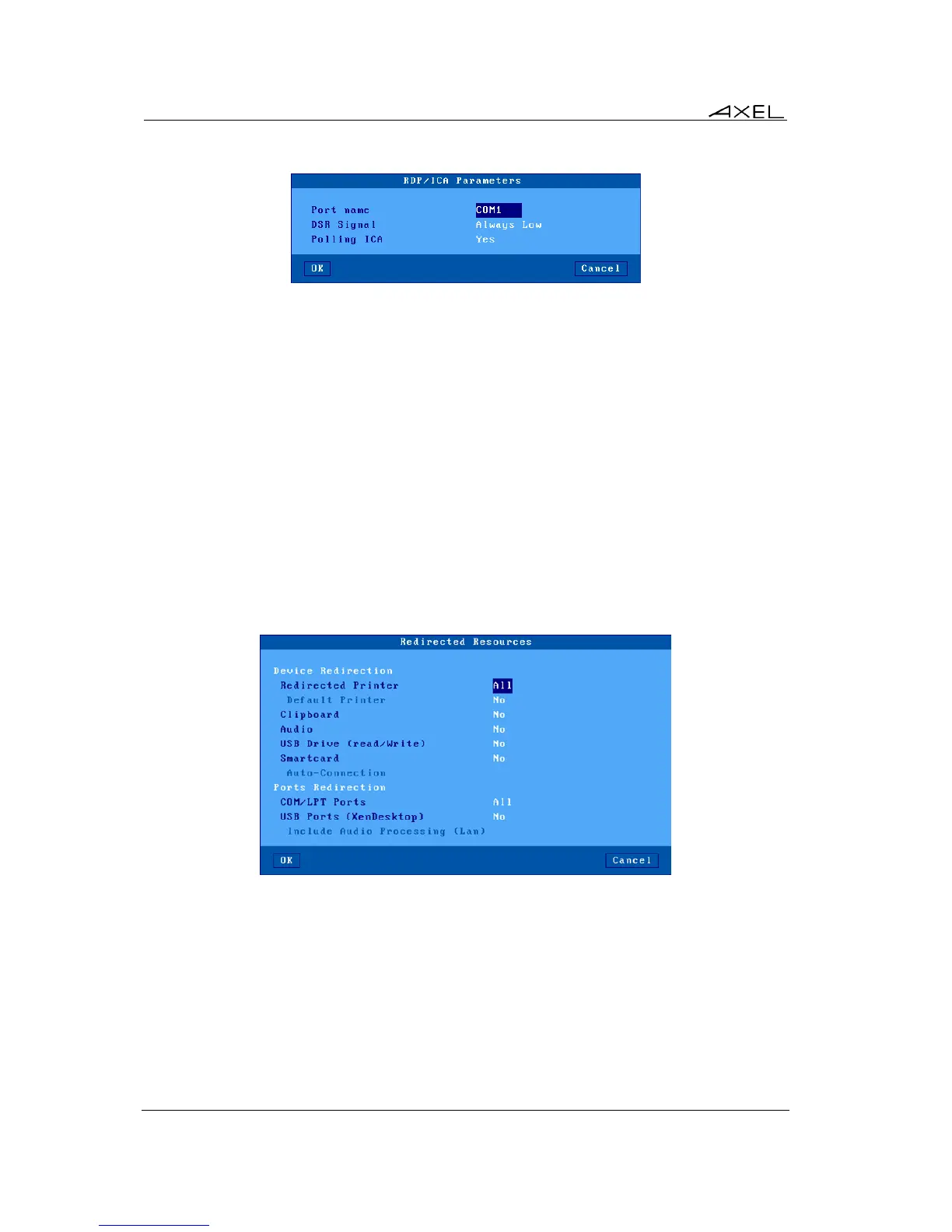

Parameters'. The following box is displayed:
These parameters are:
- Port Name: redirect COM port name (from COM1 to COM255).
- DSR Signal (only for Aux1 and Aux2): the DSR signal is not supported by the AX3000 native
auxiliary ports. This parameter allows the incoming DSR value to be emulated. The possible
values are: "Always Low", "Always Up", "Follows CTS" or "Follows CD".
- Polling ICA: not applicable
Note: for redirecting an LPT port, set the 'Active' parameter to 'As LPT port' or 'As Printer and LPT.
The LPT port settings dialog box only offers to customize the LPT name (LPT1 by default).
The port declaration is completed. For the redirection procedure, consult the next sub-section.
Then consult sub-section d) for remapping procedure.
c) Redirecting Resources
To redirect resources within a session select the session profile box (menu [Configuration]-
[Sessions]-[Session X]). Within this box, select 'Redirected Resources'. The following box is
displayed:
These parameters are:
- Redirected Printer: printer(s) are selected through a list. This list is composed by the
following items:
- All
- None
- Printer Name (port): these are the RDP/ICA printer name(s). This allows the selection
of only one printer to be redirected.
- Default printer: set (or not) a printer as the default printer.
- Clipboard: enable/disable 'copy and paste'.
- Audio: set (or not) the audio redirection ('play' or 'play and record'). The audio quality (and
the amount of audio data) can be customized in the bandwidth option. See next chapter.
