174 AX3000 Models 80 and 85 - User's Manual
9.4.2 - "TCP Server" and "TCP Client" Connection Information
To go further with connection information, two additional statistics dialog boxes are available:
- TCP server: contains information about connections where the AX3000 is acting as a server
(lpd, rtty and rcmd).
- TCP client: contains information about connections where the AX3000 is acting as a client
(telnet, tty, rdp, ica and vnc).
These statistics show the following:
- Information about connections
- Values of counters
These dialog boxes are accessed by the [Diagnostics]-[Statistics]-[TCP xxx]-[yyy] menu.

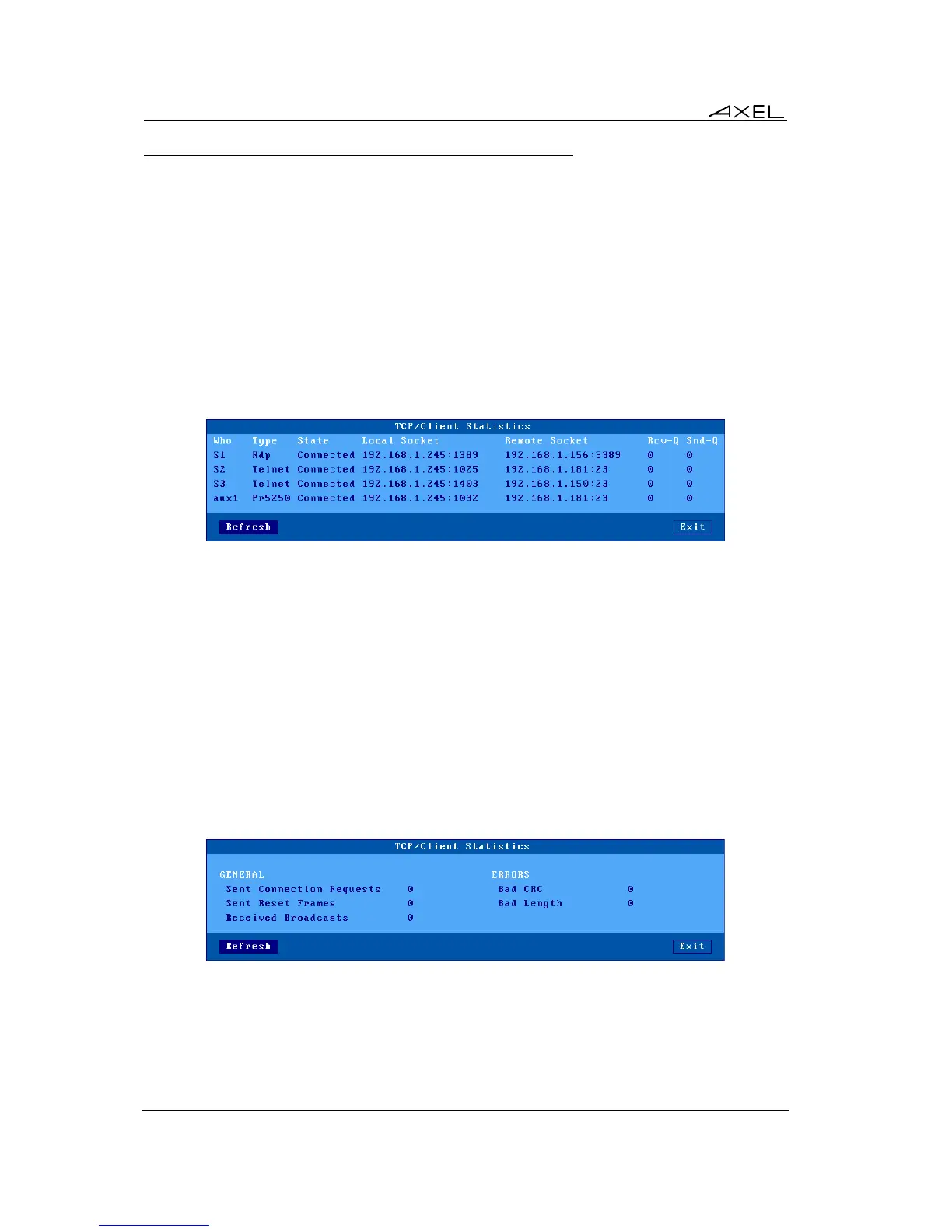

Example of a TCP client connection box:
Description of the information given within this box:
- Who: AX3000 resource involved in the connection: S1 (session 1), ..., S8 (session 8), Aux1,
Aux2, PARA (parallel), Usb1 to Usb4, Net1 to Net4.
- Type: network service being used (telnet, tty, etc).
- State: the possible values are:
- Established: the session is connected,
- Closed: the session has ended,
- Syn sent: connection request in progress,
- Time Wait: connection close in progress.
- Local Socket: IP address and TCP port for the AX3000.
- Remote Socket: IP address and TCP port for the host.
- Rcv-Q: number of bytes received by the AX3000 and not yet processed
- Snd-Q: number of bytes not yet sent to the host
Example of a counter box:
