Installing under UNIX/LINUX
156 AX3000 Models 80 and 85 - User's Manual
There are three groups of programmable keys:
- From F1 to F48: function keys used singly or with a modifier key. Example for ANSI
emulations:
F1 to F12: <Fx> F13 to F24: <Shift><Fx
F25 to F36: <Ctrl><Fx> F37 to F48: <Ctrl><Shift><Fx>
- Numeric pad with Number Lock off
- Special keys: Esc, Backspace and the ‘dot’ of the numeric pad.

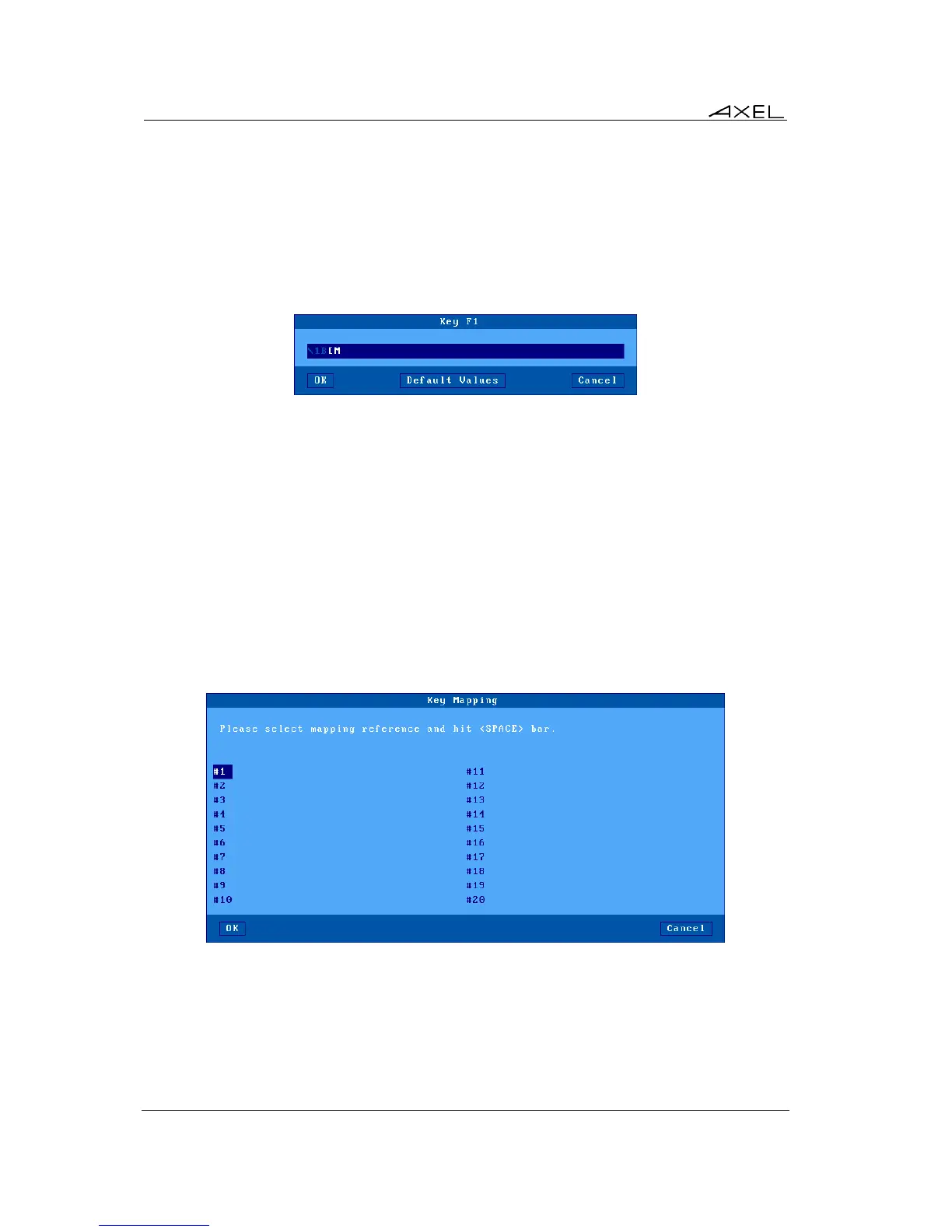

To enter a programmable key value, select this key label. The following dialog box is displayed:
The main field is used to enter the programmable key value. ASCII codes lower than 20h can be
entered as '\xx' (where xx is the hexadecimal value of the ASCII code).
Note: for the 'Backspace' key and the numeric pad dot, a toggle is only available (two possible
values for each key).
Memory usage is limited to 256 bytes maximum per key.
c) Key Mapping
This function allows any key to be remapped into any value (only available for ASCII keyboard
mode)
Select "Key Mapping" within the 'Session Profile' box and press <Space> to display the following
box:
Up to 20 sequences can be remapped (from #1 to #20).
