Tools and Statistics
AX3000 Models 80 and 85 - User's Manual 175
9.5 - ETHERNET INTERFACE INFORMATION
9.5.1 - Ethernet Interface
a) State

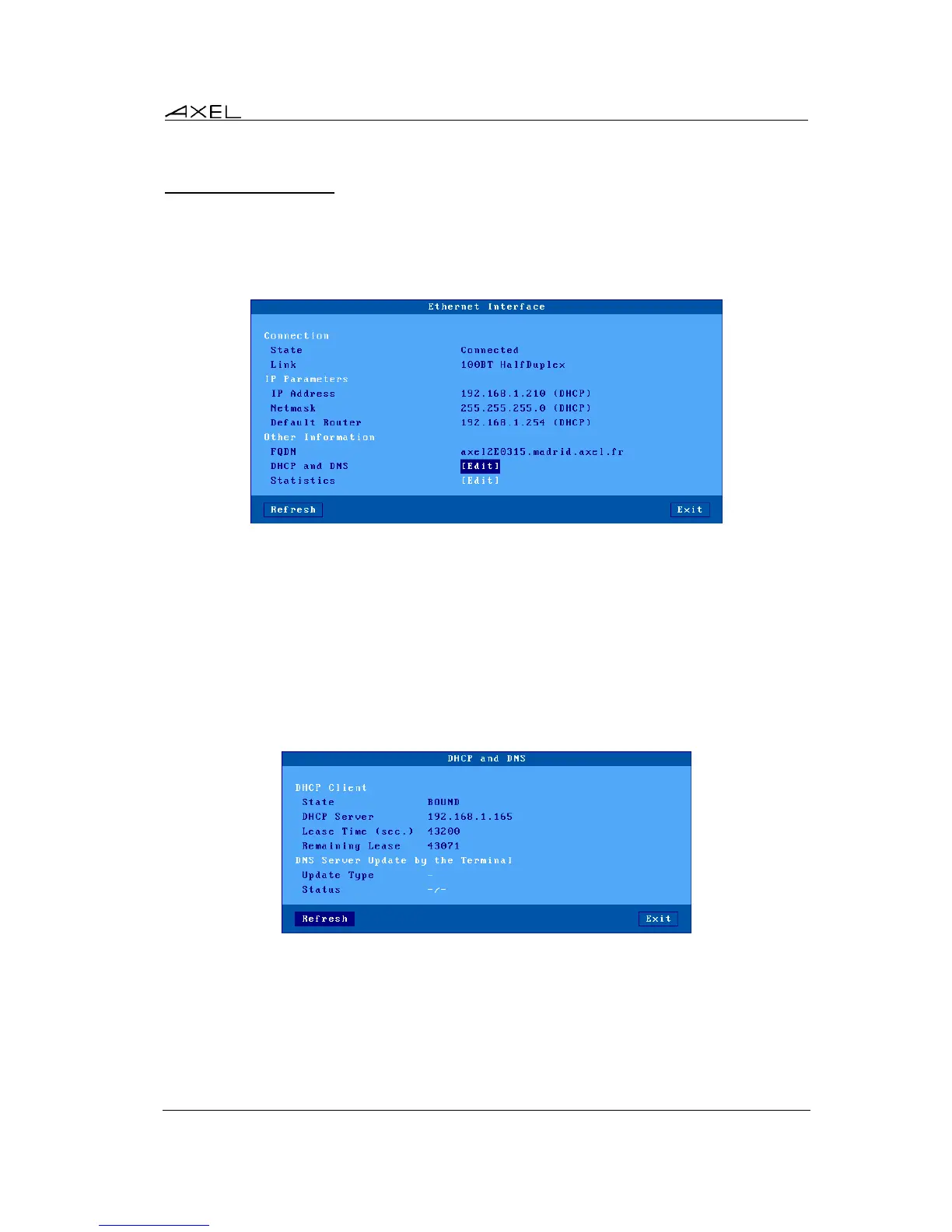

The following information is displayed when selecting the [Configuration]-[Network]-[Ethernet
Interface]-[State] menu:
Note: this information is automatically updated every 5 seconds. To force an update use the
[Refresh] button.
In the above dialog box, the following information is given:
- Link: speed and type the network interface (useful when set in auto-sense mode).
- IP parameters: IP address, netmask and default router
- FQDN: thin client full name
b) DHCP/DNS
The DHCP/DNS box is the following:
In the above dialog box, the following information is given:
- State: the current DHCP state. The possible states are:
- selecting: searching a DHCP server (broadcast)
- requesting: requesting an IP address from the DHCP server which answered
'selecting'
- bound: search has been successfully completed (IP address has been set)
- free: DHCP protocol is not enabled or DHCP protocol failed
