Interactive Set-Up
30 AX3000 Models 80 and 85 - User's Manual
Note: when the wireless interface is connected a [Disconnected] button is available.
a) Selecting the SSID
The first step is to enter the access point SSID. This can be done manually or by a scan operation.
(Available only if the wireless interface is not currently connected). The SSID is case sensitive.

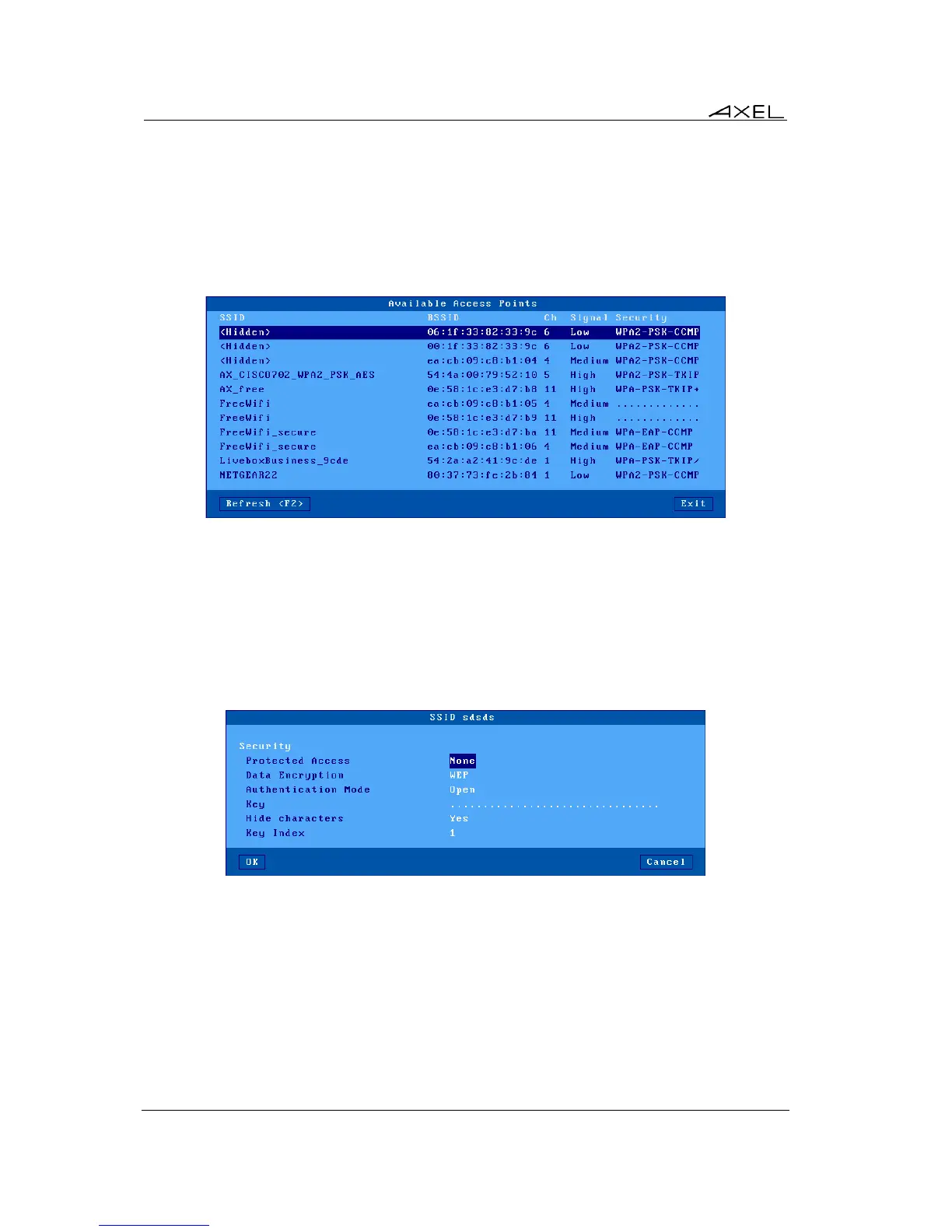

The following shows a typical scan box (press <F2>):
Note about hidden SSIDs: they are listed as <hidden>. If a hidden SSID is selected the actual
SSID name must be manually entered.
If the selected SSID is listed multiple times, a dialog box allows the connection to be forced or not
to this SSID (Forced BSSID - see Sub-Chapter c).
b) Configuring the SSID
After the SSID selection, click "Security Parameters" to enter the SSID settings box:
Note: if the SSID had been selected through a scan, SSID security parameters are automatically
picked up.
The dialog box may differ depending of the 'Protected Access' setting. Possible values are:
- None: encrypted (WEP) or non-encrypted connection
- Personal (PSK): encrypted connection (WPA/WPA2)
- Enterprise (EAP): authenticated (LEAP/PEAP) and encrypted (WPA/WPA2) connection
- 802.1X: authenticated (LEAP/PEAP) and encrypted (WEP) connection
The following describes each protected access type.
