Axel AX3000 80 User Manual

Installing under Windows
AX3000 Models 80 and 85 - User's Manual 111
5.4.1 - Setting-Up the Session
To set a Virtual Desktop session, enter the AX3000 Set-Up and select the [Configuration]-
[Sessions]-[Session X] menu (where X is the session number to be configured). The following

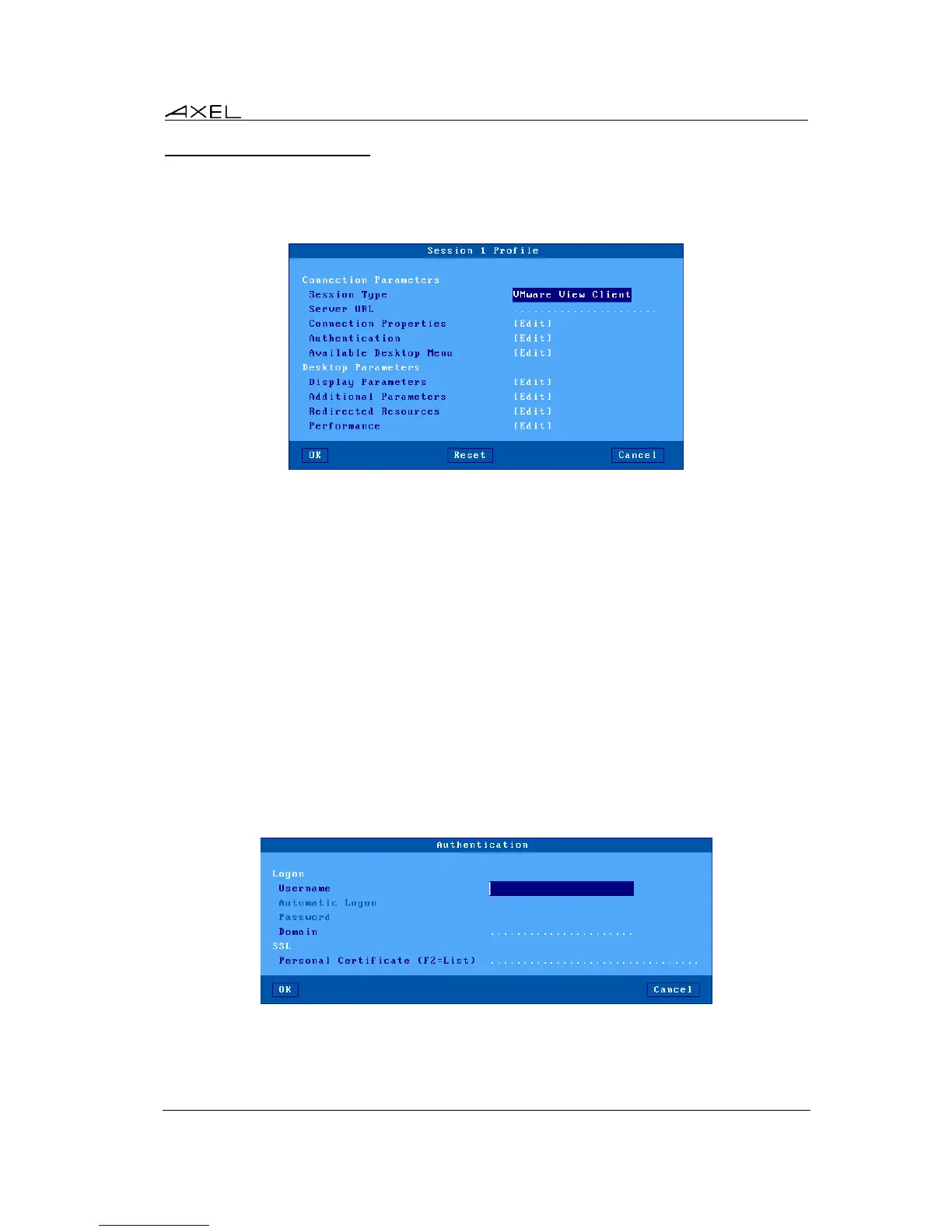

box is displayed:
Set the following parameters:
- Server URL: syntax is [https://]server[:port]
- https: optional use (default: http)
- server: DNS name of IP address of View server
- port: optional TCP port (default: 80 for http and 443 for https)
- Connection Properties: see chapter 5.1.2.
- Authentication: permitting the user’s name, password and domain to be entered. This
removes the need to enter these details for every logon. See sub-chapter a).
- Available Desktop Menu: setting-up the virtual desktop list. See sub-chapter b).
- Display Parameters: display settings (resolution and colors). See Chapter 5.1.4.
- Additional Parameters: a box, which lets certain RDP parameters be changed. See
Chapter 5.1.5.
- Redirected Resources: set redirected resources. See Chapter 5.1.6.
- Performance: a box, which lets certain bandwidth parameters be changed. See Chapter
5.1.7.
a) Authentication
The following box is displayed:
Set the following parameters:
- Username: default value for the username field of the logon screen.
- Automatic Logon: set this parameter to 'Yes' to get an automatic logon.
