Interactive Set-Up
64 AX3000 Models 80 and 85 - User's Manual
Note: the rtty service can also be used with the Axel daemon (axttyd) under UNIX (see Chapter
8.4).
To set the rtty service on the port, enter the following parameters in the [Configuration]-[Ports]-
[xxx]-[yyy] dialog box:
- Service: select rtty.

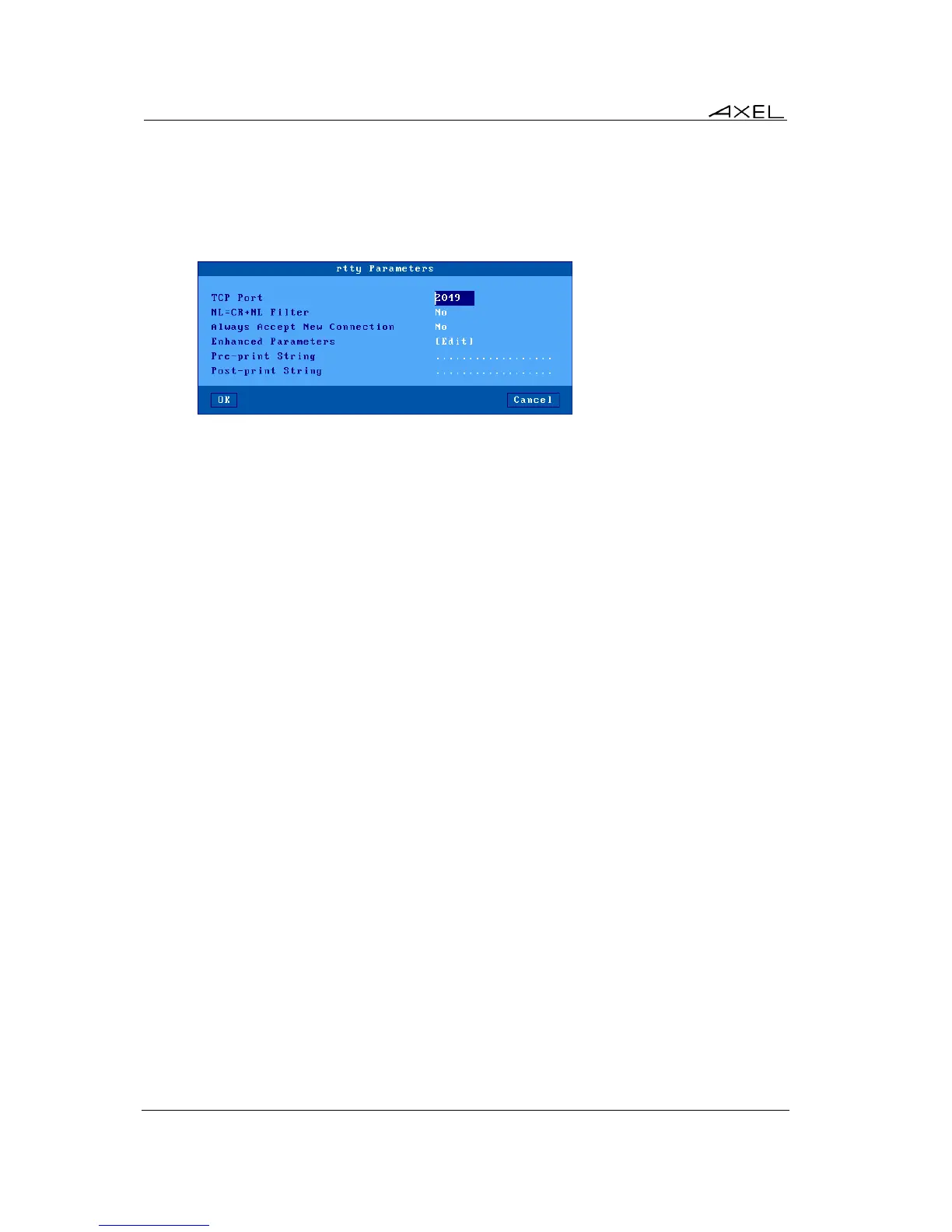

- Parameters: the following box is displayed:
- Port TCP: numeric value associates to this auxiliary port.
- NL=CR+NL Filter: The line feed character (0Ah) can be mapped to carriage return + line
feed (0Dh + 0Ah),
- Always Accept New Connection: set the AX3000 behavior when an rtty connection is
already established and a second connection rtty is received.
- Enhanced parameters: see Appendix A.7.3.
- Pre-print String: character string sent before the printing.
- Post-print String: character string sent after an the printing (for example "\0C" is a form
feed)
Note: If "Choose Portrait/Landscape" is enabled (see Appendix A.7.2), the parameter "Pre-print
String" is replaced by the two parameters "Portrait Pre-print String" and "Landscape Pre-print
String".
b) Using the rsh Command to Print
The embedded rcmd service allows printing with the rsh command (or rcmd command, according
to the operating system used).
To set the rcmd service on the required auxiliary port, select the rcmd service from the
[Configuration]-[Ports]-[xxx]-[yyy] dialog box. Then enter the name of the associated printer
port.
For more information about the rsh command, refer to Chapter 8.3.3.
