Tools and Statistics
AX3000 Models 80 and 85 - User's Manual 173
9.4.1 - Global Connection List.

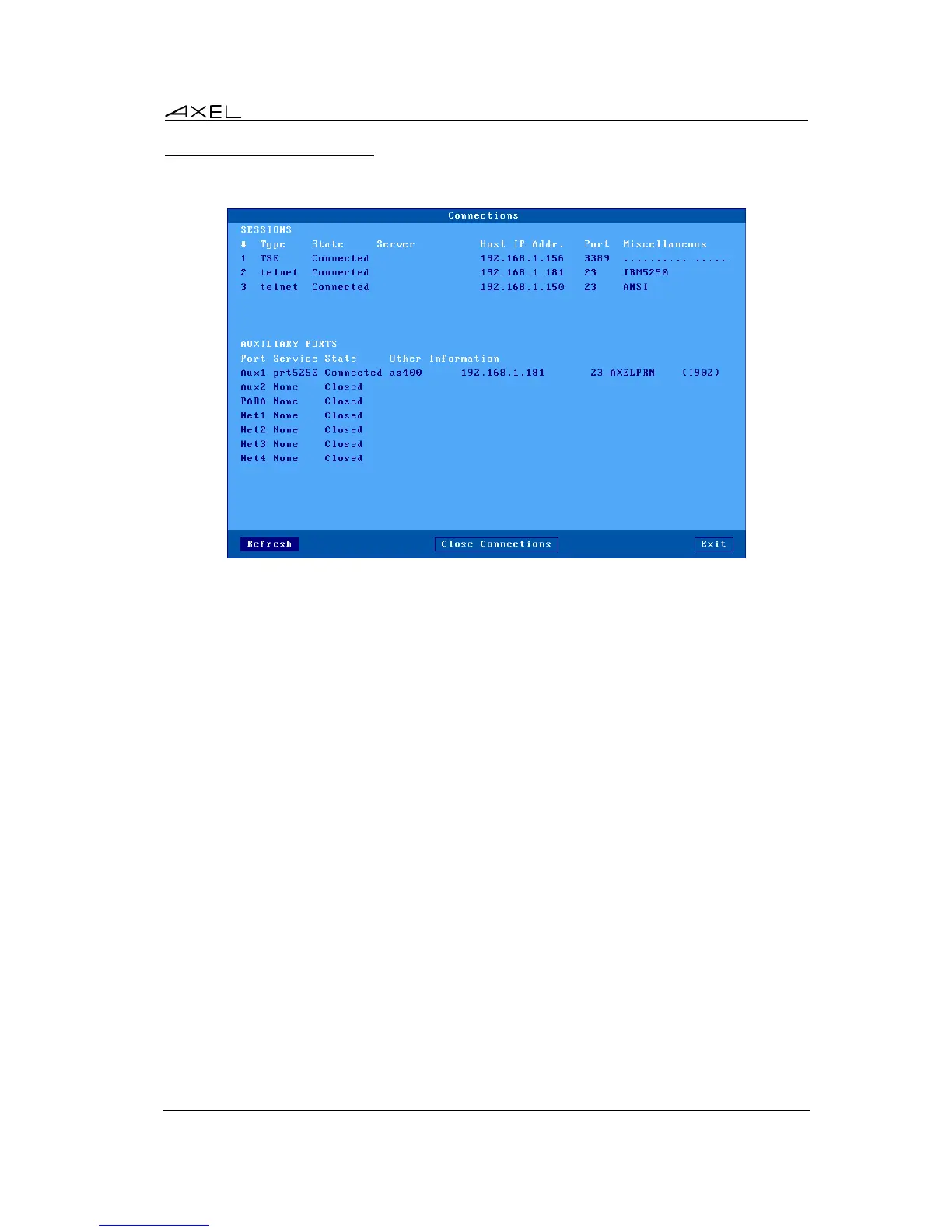

Select the [Diagnostics]-[Connections] dialog to check the status of all defined connections:
Note: 'outside' the set-up, use <Ctrl><Alt><X> displays this box.
For each session, the following information is displayed:
- No: session number.
- Type: main values are TSE, ica, telnet, tty, vnc...
- State: the possible values are:
- Established: the session is connected,
- Closed: the session has ended,
- Syn sent: connection request in progress,
- Time Wait: connection close in progress.
- Server and IP Addr Host: the associated host.
- Port: the TCP port used for the session (this is usually 23 for telnet, 2048 for tty and 59xx for
vnc).
- Configuration: the associated pre-defined configuration.
For each auxiliary port, the following information is displayed:
- Port: the name of the port: Aux1, Aux2, PARA (parallel), Usb1 to Usb4, Net1 to Net4
- Service and Other: information about the associated network service:
- lpd: printer port name and optional filter,
- rcmd: printer port name,
- telnet: associated host, TCP port, TERM and connection flags,
- tty: associated host, TCP port and connection flag,
- prt5250: associated host, TCP port, printer name and AS/400 connection status,
- printd or rtty: TCP port and optional filter.
- State: see above for the possible values.
A connection can be manually closed by selecting the [CLOSE CONNECTION] button.
Note: to refresh the information displayed, select the [REFRESH] button.
