8.2 - GRAPHICAL MODE SESSION (VNC)

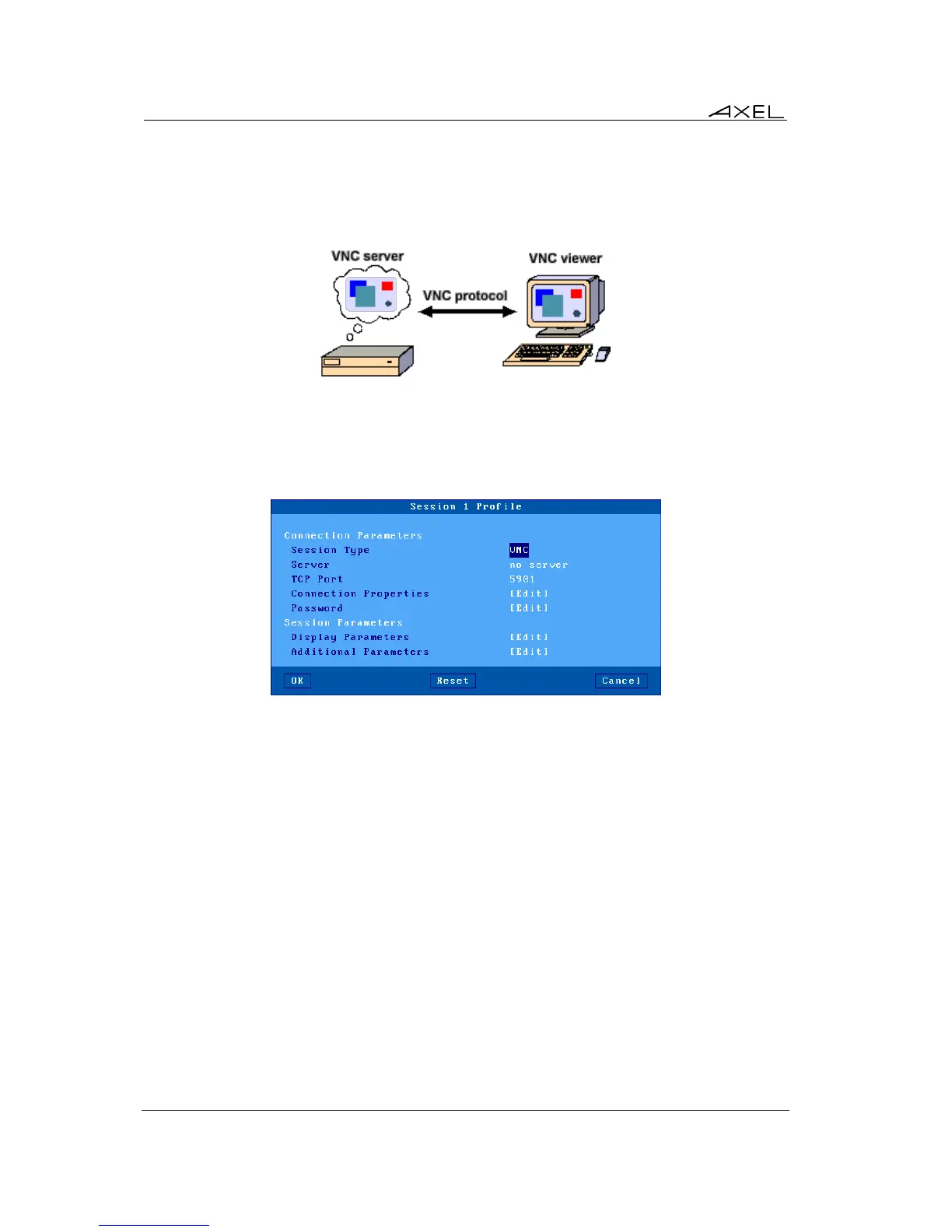

The VNC protocol enables a remote graphical display on the Axel-VNCviewer. The image is
constructed, maintained and updated within the Unix server’s frame buffer, and transmitted across
the TCP/IP network.
Note: this protocol is public and the associated software is free. For more information please see
http://www.realvnc.com/
To set-up a VNC session, select [Configuration]-[Sessions]-[Session X] (where X is the session
number). The following dialog box is displayed:
Set the following parameters:
- Session Type: select 'VNC'
- Server: selected from the server table (see Chapter 3.1.4). A new server can be added by
selecting 'IP address' or 'Server Name'.
- TCP Port: numeric value associated with the display (see Chapter 8.2.2).
