Tools and Statistics
AX3000 Models 80 and 85 - User's Manual 177
9.5.2 - Wireless Interface
a) State

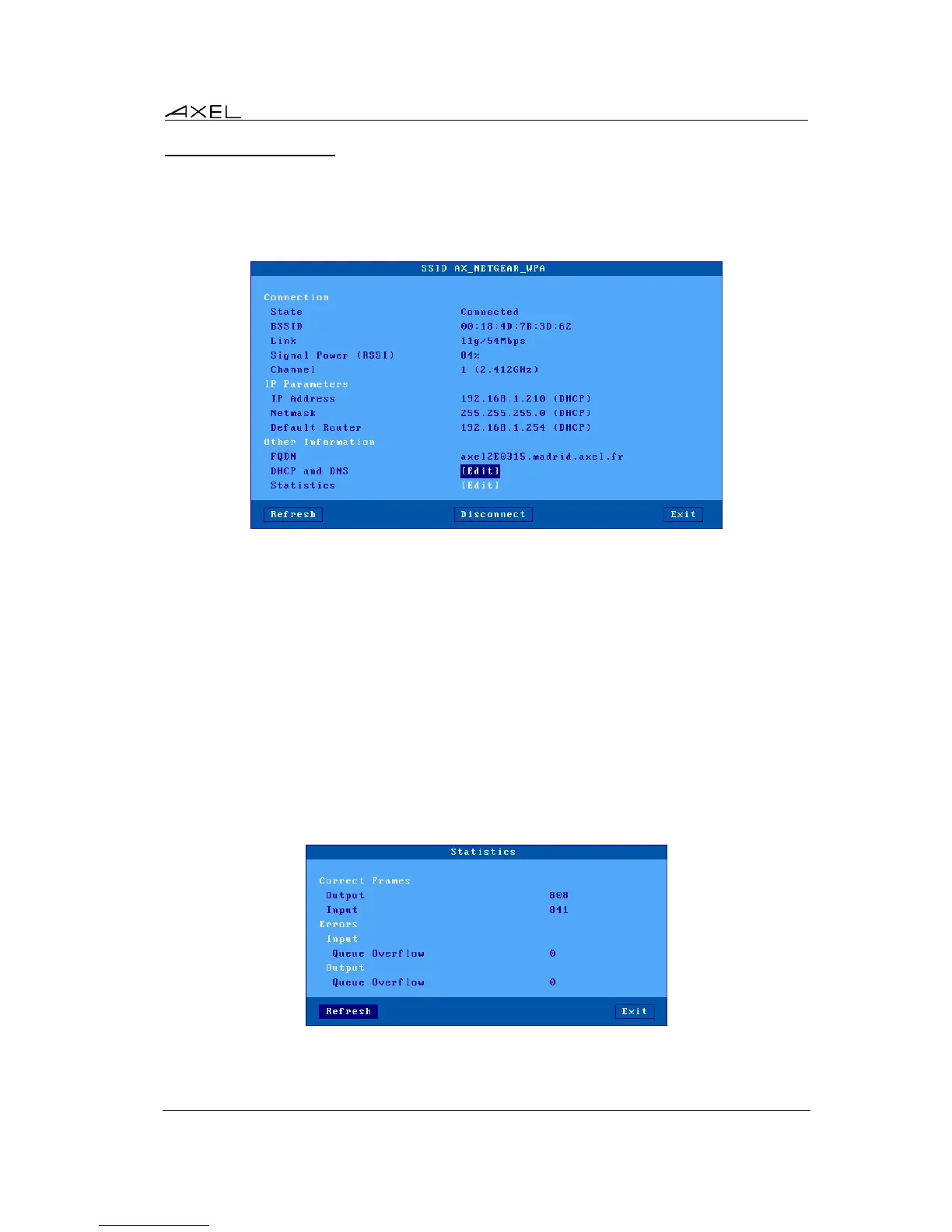

The following information is displayed when selecting the [Configuration]-[Network]-[Wireless
Interface]-[State] menu:
Note: this box information is automatically updated every 5 seconds. To force an update use the
[Refresh] button.
When the wireless interface is connected, the 802.11 information available is:
- BSSID: access point MAC address.
- Link: protocol and current speed.
- Signal power (reception)
- Channel: channel number and frequency
b) DHCP/DNS
The DHCP/DNS box is similar to the Ethernet dialog box.
c) Statistic
The statistics box is the following:
