Interactive Set-Up
62 AX3000 Models 80 and 85 - User's Manual
To set the LPD service on a port, select the [Configuration]-[Ports]-[xxx]-[yyy] dialog and enter
the following parameters:
- Service: select lpd.

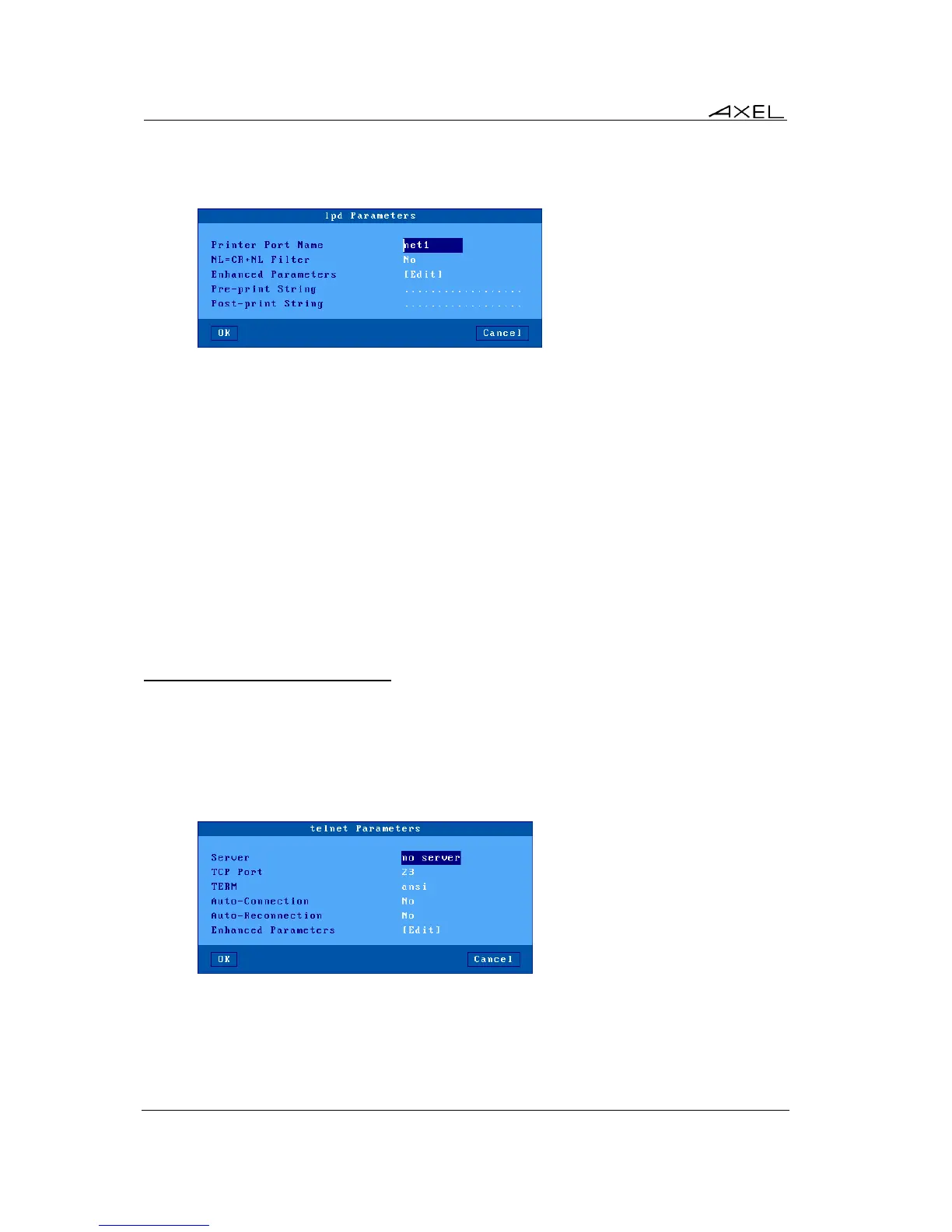

- Parameters: the following dialog box is displayed:
- Printer Port Name: this is the port identifier. Sometimes the same name is used for the
printer at the operating system level.
- NL=CR+NL Filter: The line feed character (0Ah) can be mapped to carriage return + line
feed (0Dh + 0Ah),
- Enhanced parameters: see Appendix A.7.3,
- Pre-print String: character string sent before the print job.
- Post-print String: character string sent after the print job (for example "\0C" is a form
feed)
Note 1: If "Choose Portrait/Landscape" is enabled (see Appendix A.7.2), the parameter "Pre-print
String" is replaced by the two parameters "Portrait Pre-print String" and "Landscape Pre-print
String".
Note 2: if a serial port is used for printing, set the operating mode to 'Printer'.
For more information about lpd printers, refer to the chapter related to your operating system in this
manual.
3.5.3 - Connecting a Serial Terminal
Two serial terminals can be attached to the AX3000’s serial ports. These serial terminals
communicate with the target server(s) using the AX3000’s embedded telnet service.
To configure the telnet service for the chosen serial port, select the [Configuration]-[Ports]-[xxx ]-
[yyy] dialog and enter the following parameters:
- Service: select telnet.
- Parameters: the following box is displayed:
- Server: selected from the server table (see Chapter 3.1.4). A new server can be added
by selecting 'IP address' or 'Server Name'.
- TCP Port: usual value is 23.
- TERM: the value of this variable is 'negotiated', between the server and the AX3000.
