Installing under OS/400

122 AX3000 Models 80 and 85 - User's Manual

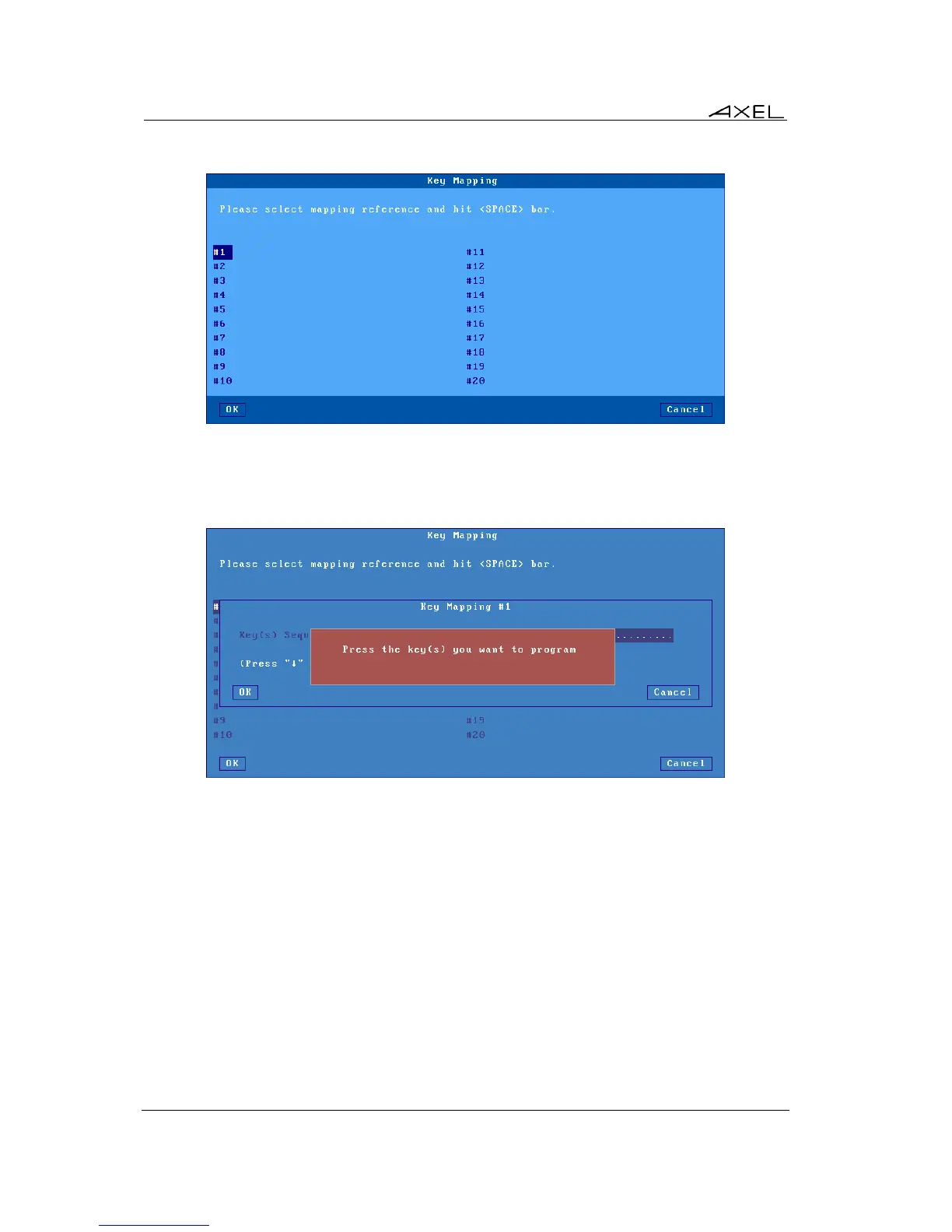

The following box is displayed:

Up to 20 sequences can be remapped (from #1 to #20).

To program a new sequence (or to modify an existing one) select the sequence number. The

following dialog box is displayed:
