3. Advanced Commands
Image 3-1

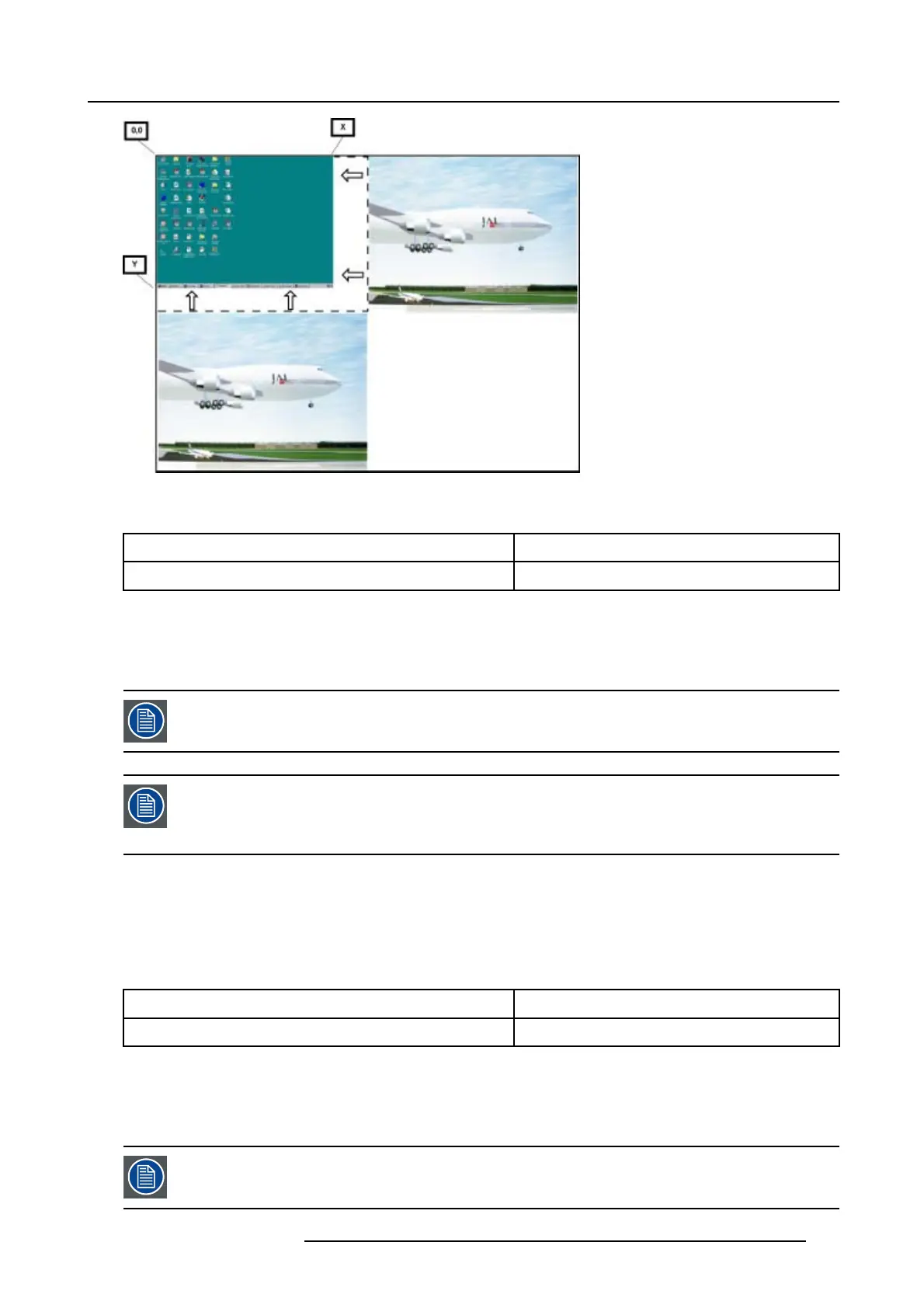

PiP layout (3 windows, 2 video/1data), data window is resized
Command
Command [0]
\x20
Command [1]
\x91
Data
Data[0]...Data[3] = double word Xsize : describes the “width” of the window (x axis).
Data[4]...Data[7] = double word Ysize : describes the “height” of the window (y axis).
Xsize, Ysize are given in “p ixels”
Xsize and Ysize determine the size of the window, since the aspect ratio is fixed , one of the values may be
sufficient to determine the siz e of the window.
If the 2 values d o not match the aspect ratio, then Xsize is taken as reference and Ysize is calculated to match
the aspect ratio.
3.2.17 PiP window size, Read
Description
Retur
ns the size of the active window (works in PiP and in Full Screen mode)
Comm
and
Command [0]
\x21
Command [1]
\x91
Returned Data
Data[0]...Data[3] = double word Xsize : describes the “width” of the window (x axis).
Data[4]...Data[7] = double word Ysize : describes the “height” of the window (y axis).
Xsize, Ysize are given in “p ixels”
R5976884 RLM SERIES 04/04/2006 103
