Barco RLM series - Pip Window Horizontal Position, Read Min;Max

3. Advanced Commands
Image 3-5

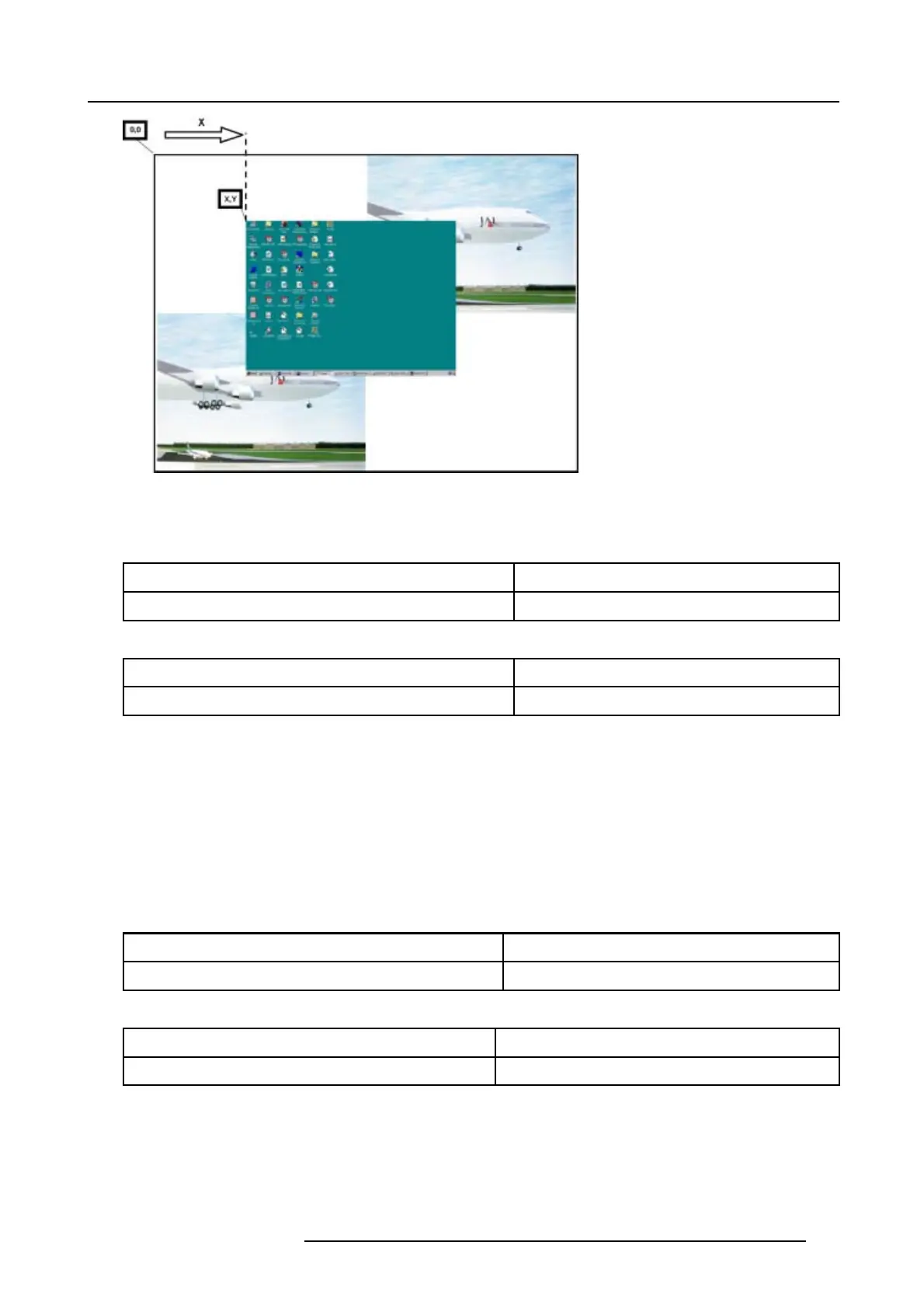

PiP : data window is repositionned
Command
Increment
Command [0]
\x22
Command [1]
\x94
Decrement
Command [0]
\x23
Command [1]
\x94
Data
Data [0] = byRepeat : optional
3.2.28 PiP Window horizontal position, Read Min/Max
Description
Reads the minimum/maximum value for the window horizontal position adjustments in PiP.
Commands
read minimum:
Command [0]
\x26
Command [1]
\x94
read maximum:
Command[0]
\x27
Command[1]
\x94
Returned Data
Data[0]...Data[3] = signed double word Xposition : describes the min/max “width” of the window (x axis).
