6.9.7 FIELD CONTROL / Standby field enable PIN 111
Used to keep motor warm during off periods to prevent condensation in cold climates. When disabled the
field quenches to zero. See 6.9.8 FIELD CONTROL / Standby field current PIN 112.
A run condition is enabled by (ST ART or JOG) and RUN. This parameter prevails for non running conditions.
6.9.8 FIELD CONTROL / Standby field current PIN 112
Used to keep motor warm during off periods to prevent condensation in cold climates.
100.00% represents 4)RA TED FIELD AMPS as set in the C ALIBRA TION menu.
6.9.9 FIELD CONTROL / Quench delay PIN 113
Used to ensure the motor can generate into a dynamic braking resistor after the main contactor drops out.
A run condition is enabled by (ST ART or JOG) and RUN. This delay activates upon commencement of a non
running condition.
6.9.10 FIELD CONTROL / Field reference input PIN 114
This parameter is a scaler of 6.1.4 C ALIBRA TIO N / Rated field amps PIN 4 QUICK START.
It may be used for systems requiring an external field reference input. The minimum field clamp will operate if
the reference goes below minimum field.

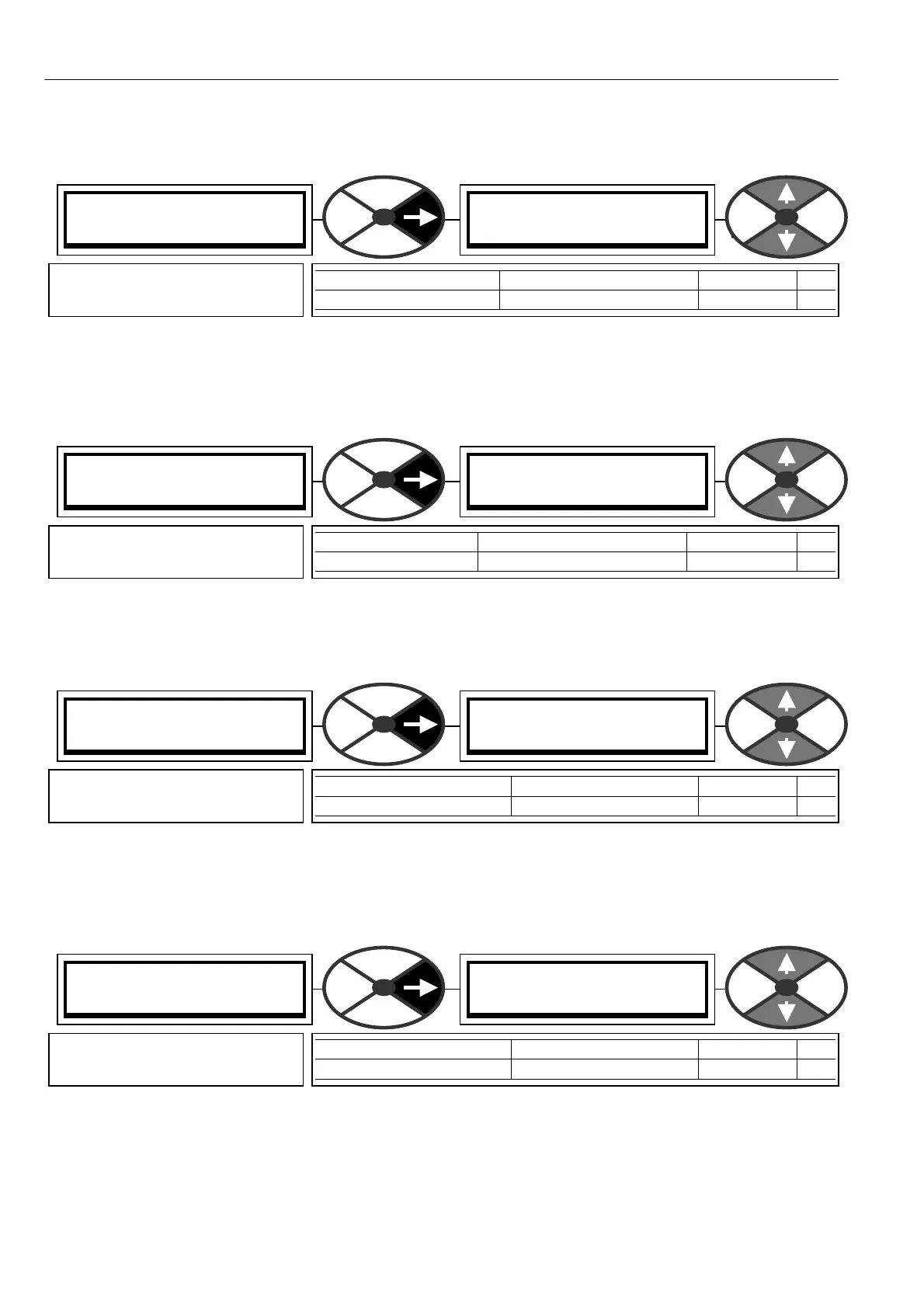

FIELD C ONTROL 3
112)ST A NDBY FLD CUR
112)ST A NDBY FLD CUR
25.00%
PARA METER RANGE DEF AULT PIN
ST ANDBY FLD CUR 0.00% to 100.00 % 25.00 % 112
Sets the standby value of the
field current.
FIELD C ONTROL 3
113)FLD Q UEN CH DELA Y
113)FLD Q UEN CH DELA Y
10.0 SECS
PARA METER RANGE DEFAULT PIN
FLD Q UENCH DELA Y 0.0 to 600.0 seconds 10.0 secs 11 3
Set the field quench delay time
after main contactor drop out.
FIELD C ONTROL 3
114)FIELD REFERENCE
114)FIELD REFERENCE
100.00 %
PARA METER RANGE DEFAULT PIN
FIELD REFERENCE 0.00 % TO 100.00 % 100.0 0% 114
Sets the value of an external
field reference input
FIELD C ONTROL 3
111)ST A NDBY FLD ENBL
111)ST A NDBY FLD ENBL
DISABLED
PARA METER RANGE DEF AULT PIN
ST ANDBY FIELD ENBL EN ABLED OR DIS ABLED DIS ABLED 111
Enables the standby field
quench mode.
