9.1.6 SELF TEST MESSA GE / Stop drive to adjust parameter
This message appears when attempting to alter a
parameter which belongs to the class that is inadvisable
to adjust while the motor is running.
The message wi ll blink as the up/do wn keys are
pressed. The parameter remains unaltered. The drive
must be stopped to adjust the parameter.
9.1.7 SELF TEST MESSA GE / Enter password
This message appears when attempting to alter a
parameter before the correct password has been
entered.
The message wi ll blink as the up/do wn keys are
pressed. See 11.2 DISPLA Y FUNCTIONS / PA SS W ORD CONTROL.
9.1.8 SELF TEST MESSA GE / Enable GOTO, GETFRO M
This message appears when attempting to configure
connections before the ENABLE GOTO, GETFRO M
mode has been enabled. The message will blink as the
up/do wn keys are pressed.
9.1.9 SELF TEST MESSA GE / G OTO C ONFLIC T
At the end of a configuration session the user must
alw ays proceed to the ENABLE G OTO, GETFROM
windo w to set it to DIS ABLED. This message will then
appear if the user has accidentally connected more than
one GO TO to any PIN during the session. It will also appear as an alarm message if the drive is asked to run
and there is a GOTO CONFLICT. E.g. if a parameter file containing a G OTO C ONFLIC T has been loaded.
See 13.14 C ONFLIC T HELP MENU.
9.1.10 SELF TEST MESS A GE / Internal error code
This message will appear for a variety of reasons.
Codes 0001/2/3 indicate a microprocessor system
problem. Please consult supplier.
The message SUPPLY PH ASE LOSS indicates the control supply has dipped. See 3.6 Supply loss shutdown.
Code 000 5 appears if a very small motor is run on a large PL/X with a high inductance 3 phase supply. In
this case it wi ll be necessary to re-calibrate the model rating to a lo wer current. See 13.13.4 DRIVE
PERSONALITY / Armature current burden resistance PIN 680, and 13.13.4.1 50 % / 100 % rating select.
If this message appears when running then:- 1)The armature current will quench. 2)The main contactor and
field will de-energise. 3)The digital outputs will be disabled. 4)The HEALTHY flag (PIN 698) will be set lo w.
Normal operation may be re-instated by pressing the left key or turning the control supply off and on again.
9.1.11 SELF TEST MESS A GE / Authorisation needed
This message will appear if a PARA METER SA VE on
RECIPE PAGE = 3 -KEY RESET , or a DRIVE RECEIVE
of a page 3 file, is attempted, AND the page has been
locked by the supplier. Page 3 may be locked because it contains a recipe that is required to be protected
from being overwritten. Please consult your supplier. It may also appear if certain special parameters are
altered, ho w ever this is unlikely to happen in normal operation.
W ARNING. The lock status is also included in, and travels with a page 3 file. Receiving a page 3 file with
locked status will automatically lock any unlocked page 3. See 10.2.1.1 PARA METER EXCH ANGE with a
locked recipe page 3.

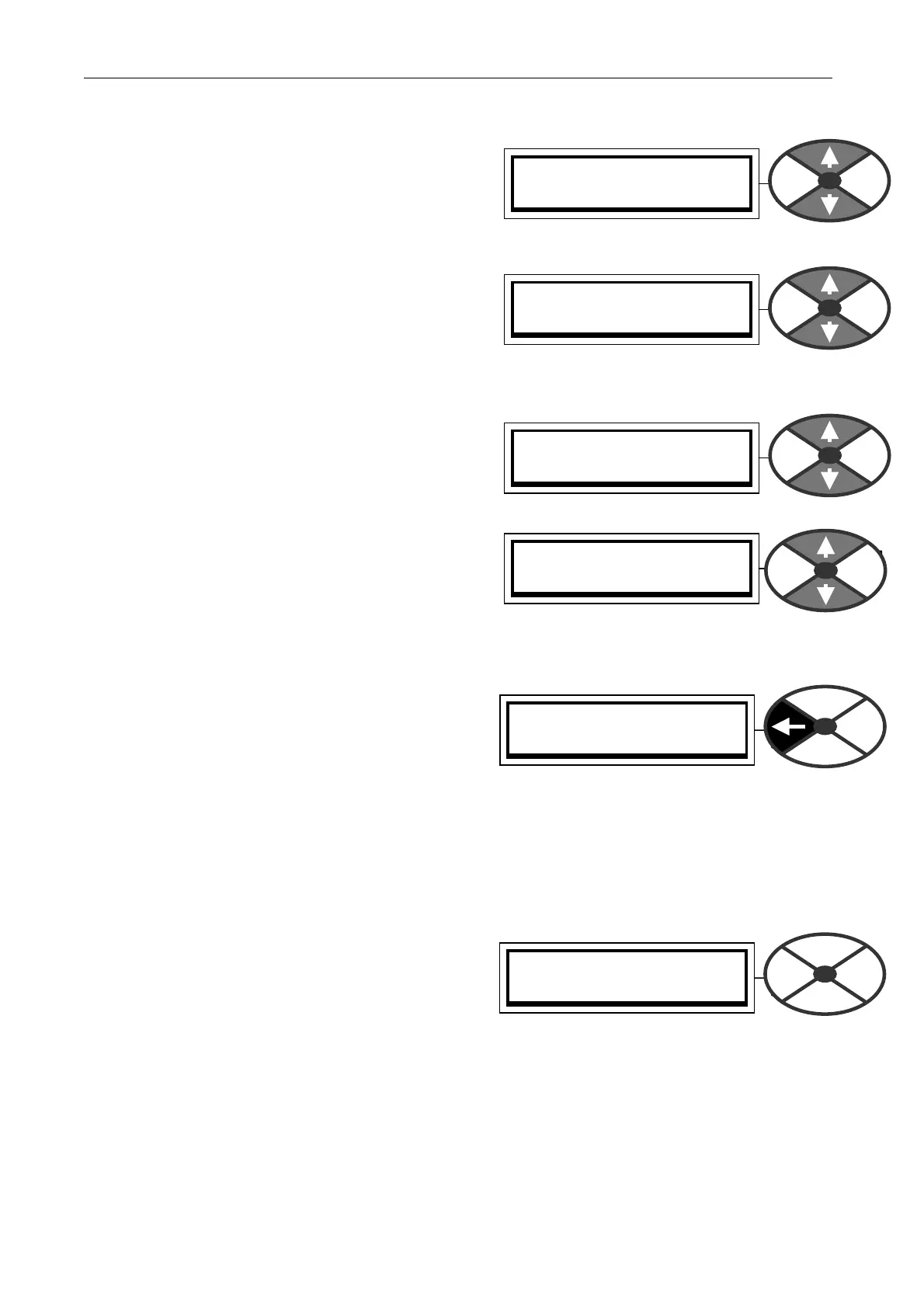

Parameter name
