Bardac PLX - 13.10 CONFIGURATION; JUMPER CONNECTIONS

CONFIGURA TION 193
CONFIGURATION 2
JUMPER C ONNEC TIONS 3
JUMPER C ONNEC TIONS 3
JUMPER 16 4
JUMPER C ONNEC TIONS 3
JUMPER 1 4
JUMPER C ONNEC TIONS 3
JUMPER 2 4
JUMPER C ONNEC TIONS 3
JUMPER 3 4
JUMPER C ONNEC TIONS 3
JUMPER X 4
JUMPER C ONNEC TIONS 3
JUMPER 15 4
GET
FROM
GO
TO
JUMPER C ONNEC TION

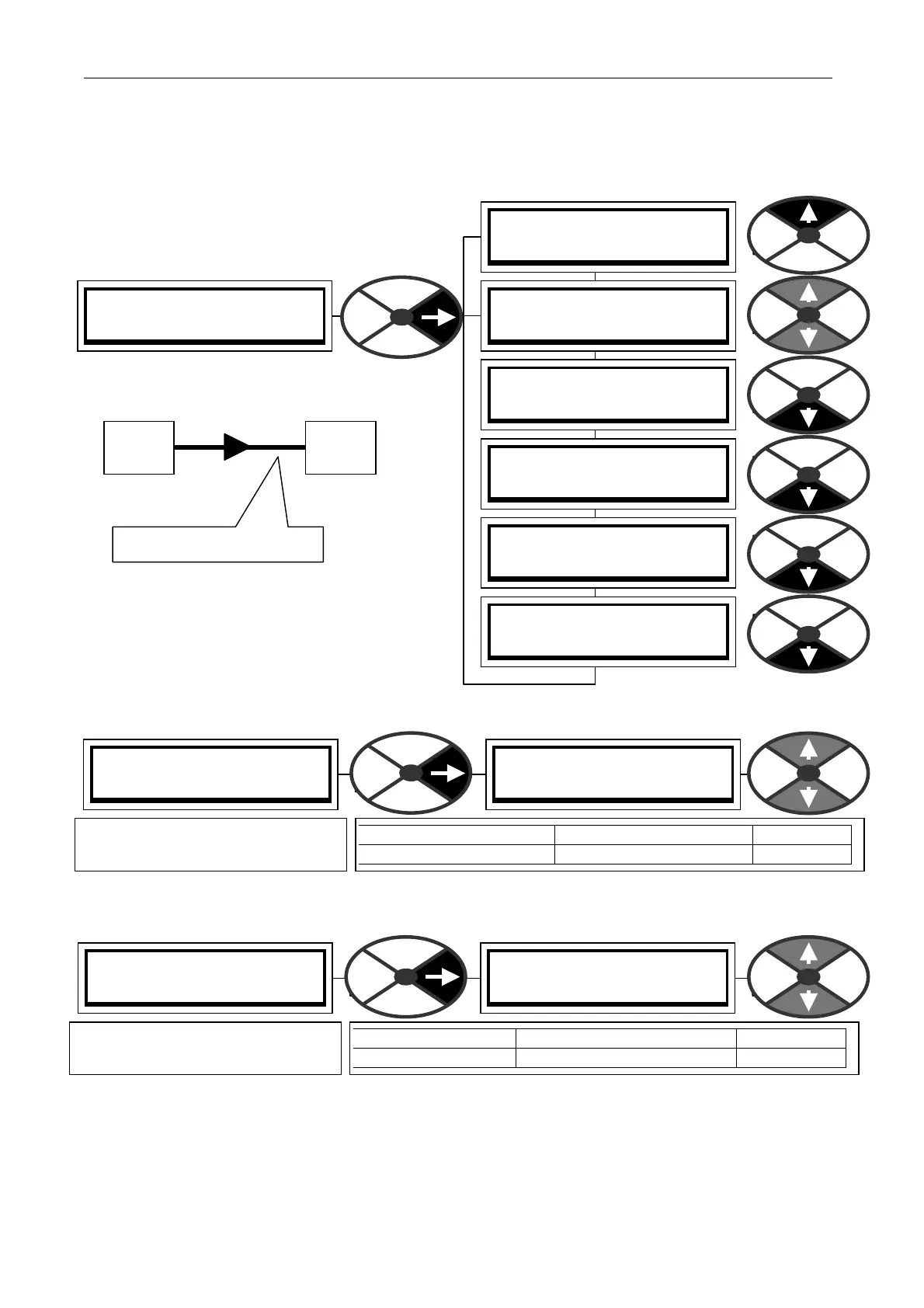

13.10 CONFIGURATION / JUMPER CONNECTIONS
This menu defines the JUMPER connection PINs
using GET FROM and GO TO windows
There are 16 uncommitted JUMPERS
13.10.1 JUMPER CONNECTIONS / Make jumper GET FROM source connection
13.10.2 JUMPER CONNECTIONS / Make jumper GOTO destination connection
See 13.2.4 JUMPER connections for a description of the type of connections possible.
JUMPER X 4
GET FROM
GET FROM
PIN) Description of function
PARA METER RANGE DEF A ULT
GET FROM PIN 000 to 720 400
Defines the source PIN for
connection using JUMPER X.
JUMPER X 4
GO TO
GO TO
PIN) Description of function
PARA METER RANGE DEF AULT
GO T O PIN 000 to 720 400
Defines the destination PIN for
connection using a JUMPER X.
