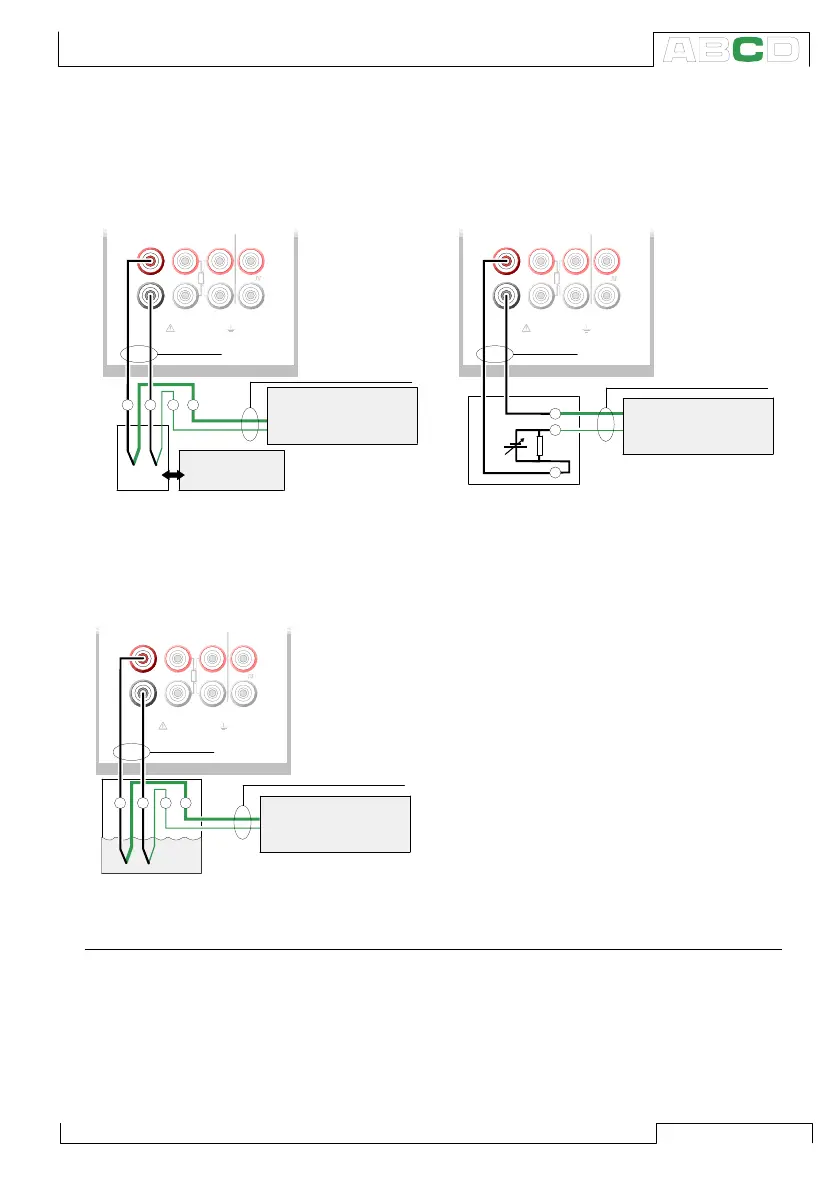

Connection when measuring/simulating
thermovoltage using a temperature con-
troller and Reference Junction compen-
sation method Entered (also RJ-mode
0°C):
Connection when measuring/simulating
thermovoltage using a compensation
box and Reference Junction compensa-
tion method Entered (also RJ-mode
0°C):
See also…
Internal Reference Junction on page 93
Connection when measuring/simulating
thermovoltage using a fixed temperature
and Reference Junction compensation
method Entered (also RJ-mode 0°C):
