Pulse Generation

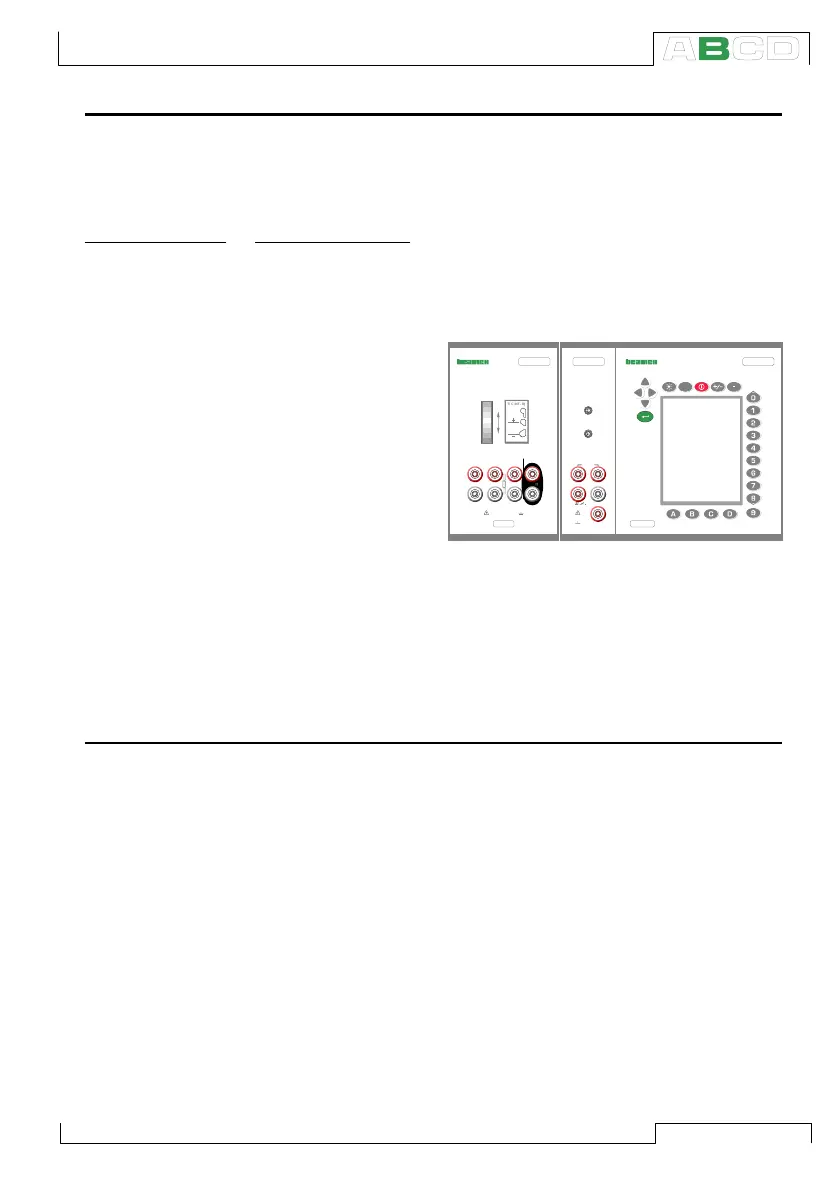

The pulse generation terminals are located in the ET module. Pulse generation is similar
to square wave frequency output, but it generates a predefined count of all positive or
symmetric pulses.
Required settings Options/description
Quantity Pulses
Funct/Port ET: Pls(gen)
Also check the Polarity setting.
Enter the amount of pulses MC5P should
generate in the pulse generation window.
Also enter the amplitude and frequency
to be used.
The pulse generation starts immediately
after the amount of pulses value is entered.
Note.
If you change the frequency after the pulse generation has started,
the frequency is adjusted during the current cycle, but the frequency
is not correct until the next cycle.
Next…
Frequency Generation on page 60
Pulse Counting on page 45
Special Generations on page 65.
ELECTRICAL MODULE
FOR MC5P
S/N
MULTIFUNCTION CALIBRATOR
MC5PE
?
ET
ELECTRICAL AND TEMPERATURE MODULE
FOR MC5P
S/N
Max 60 VDC/30 VAC
Max 60 VDC
Max 30 VAC
OUTPUTSENSOR MEASURE & SIMULATE
INTERNAL REFERENCE JUNCTION
FOR THERMOCOUPLES
T/C, Low V
4-w meas
R, RTD
V, I,
3 & 4-w meas
Open
Close
Open
Close
T/C INT. RJ
T/C
WIRES
ONLY
(ENV), ENVIRONMENTAL
TEMPERATURE SENSOR
(EXT), EXTERNAL
PRESSURE MODULE
MEASURE
+24V
I
meas/sink
HART
®
2-w xmtr
V, ,
Low V
Com
Generating/Simulating
