The Calibration Procedure
Calibrating a HART instrument
does not differ from the calibration
of a non-HART instrument with
similar input quantity, input method,
output quantity and output method.
Refer to the examples in MC5P
User Guide’s Part D.
Note.
Calibrating the Analog Output (AO) of
a HART instrument does not necessar-
ily require HART communication. MC5P
treats it as a standard analog instrument
during the calibration procedure.

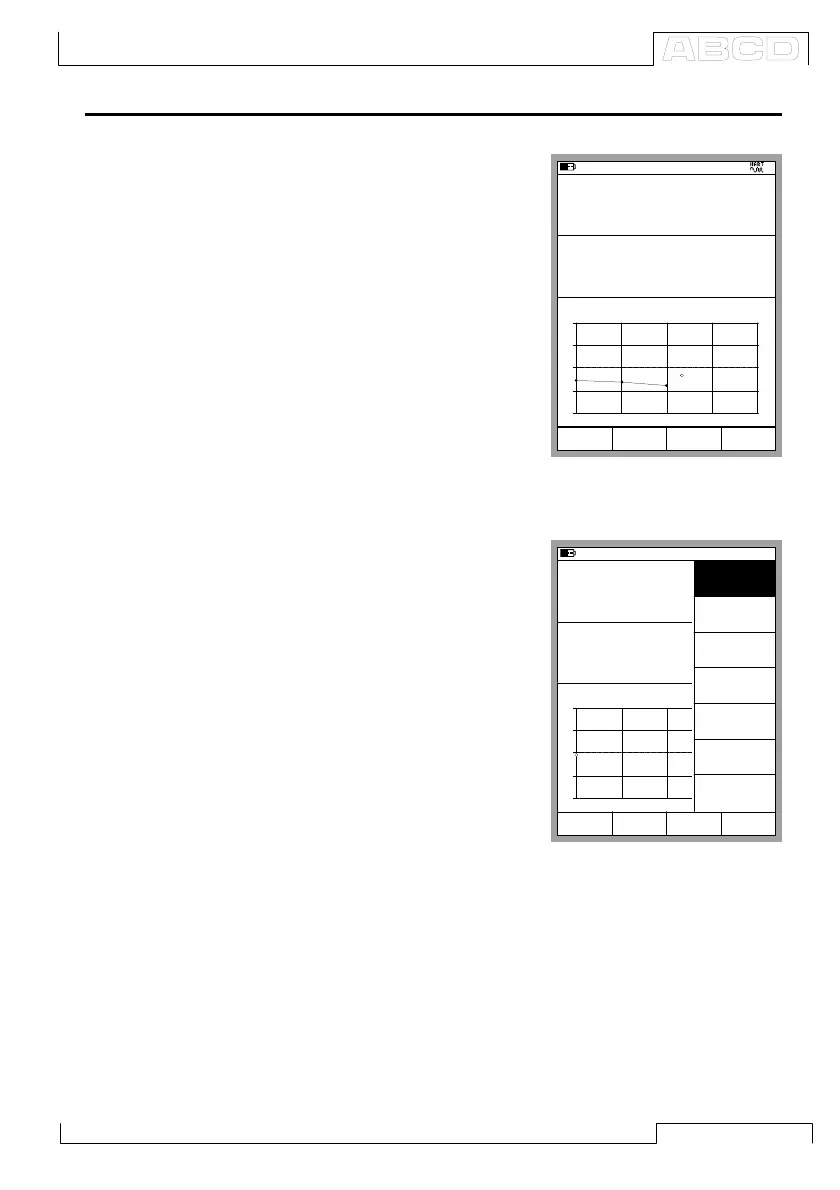

Trimming a HART Instrument in Calibration Mode
There is a special utility for trimming
a HART instrument during calibra-
tion. To start the HART adjustment,
select D/MENU and 1/Start HART
Adjustment.
11.11.2003 14:51
Input
Error
1.00
Output
mbar
510.24
-0.21 % of span
512.156
+
0
-
0% 50% 100%
Pressure [P1:INT1C]
Pressure [E: HART]
mbar
Gauge
Stop
Readings
Accept
11.11.2003 14:52
Input
Error
1.00
Output
kPa
4.3374
-0.06 % of span
0.0434
+
0
-
0% 50% 100%
Pressure [P1:INT20C]
Current [E: Meas]
mA
gauge
MENU
Close
Prescan
[On]
Start
HART
Adjustment
View
Calibration
Results
Zero
Pressure
Module
Calibrating a HART Instrument
