Switch State Sensing

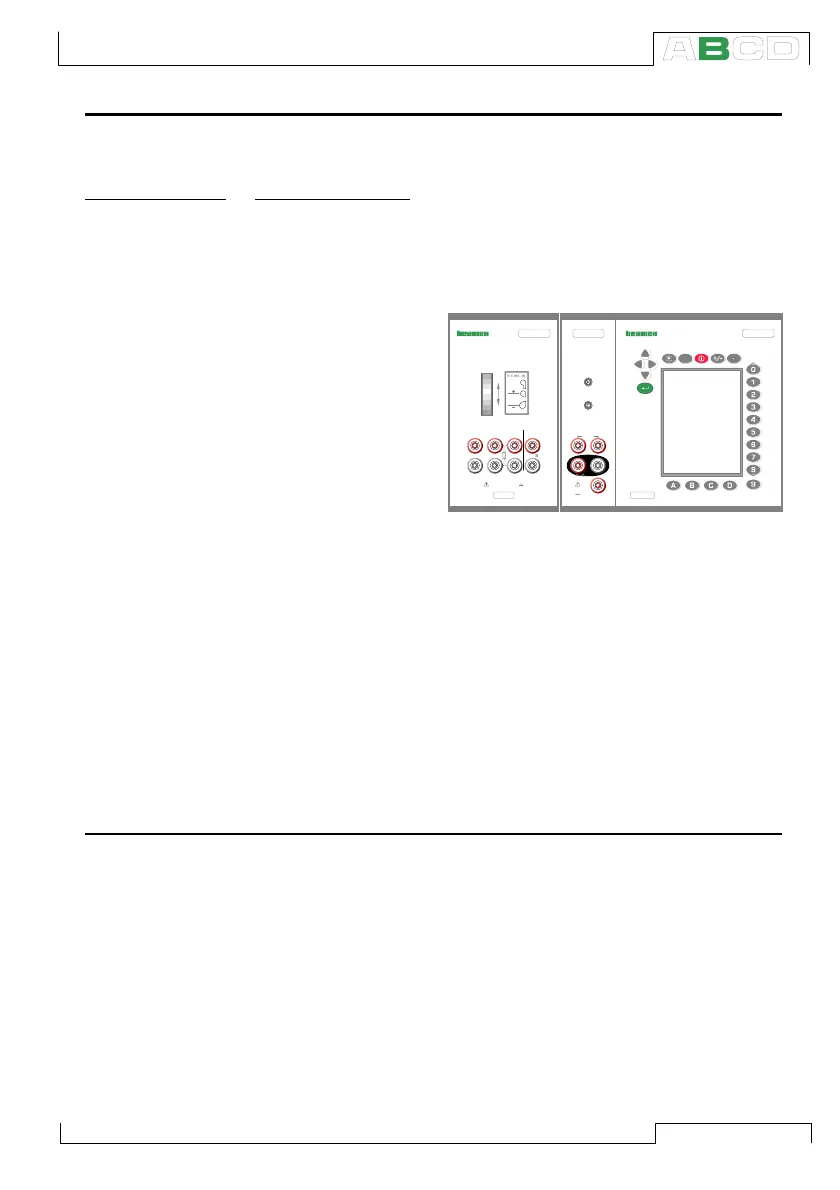

The switch state detection terminals are located in the E module.
Required settings Options/description
Quantity Switch
Funct/Port E: Switch (selected automatically when the
corresponding Quantity setting is activated )
Also check the Sound setting. The option
Change means that MC5P beeps every
time the switch changes its state. When
using options Open or Closed the sound
is continuously on when the switch is
open respectively closed.
The contact should be free of external po-
tential. If this is not possible, use DC volt-
age within the range -10 V to +30 V. MC5P
shows voltages above approx. +1.5 V as
open contact and voltages below approx.
+1.5 V as closed contact.
Hint!
Switch state detection may also be used for binary signal detection.
Next…
Limit Switch Test on page 42
Calibration, see Part D.
ELECTRICAL MODULE
FOR MC5P
S/N
MULTIFUNCTION CALIBRATOR
MC5PE
?
ET
ELECTRICAL AND TEMPERATURE MODULE
FOR MC5P
S/N
Max 60 VDC/30 VAC
Max 60 VDC
Max 30 VAC
OUTPUT
SENSOR MEASURE & SIMULATE
INTERNAL REFERENCE JUNCTION
FOR THERMOCOUPLES
T/C, Low V
4-w meas
R, RTD
V, I,
3 & 4-w meas
Open
Close
Open
Close
T/C INT. RJ
T/C
WIRES
ONLY
(ENV), ENVIRONMENTAL
TEMPERATURE SENSOR
(EXT), EXTERNAL
PRESSURE MODULE
MEASURE
+24V
I
meas/sink
HART
®
2-w xmtr
V, ,
Low V
Com
Measuring
