Transmitter/Switch Simulation
MC5P’s Basic Mode includes a
possibility to simulate a transmit-
ter and a switch. To start a Trans-
mitter or as Switch simulation, con-
figure Window 1 to measure a sig-
nal (transmitter input) and and Win-
dow 2 to either generate or simu-
late a signal (transmitter output),
then select D/Menu, C/Others and
6/Transmitter/Switch Simula-

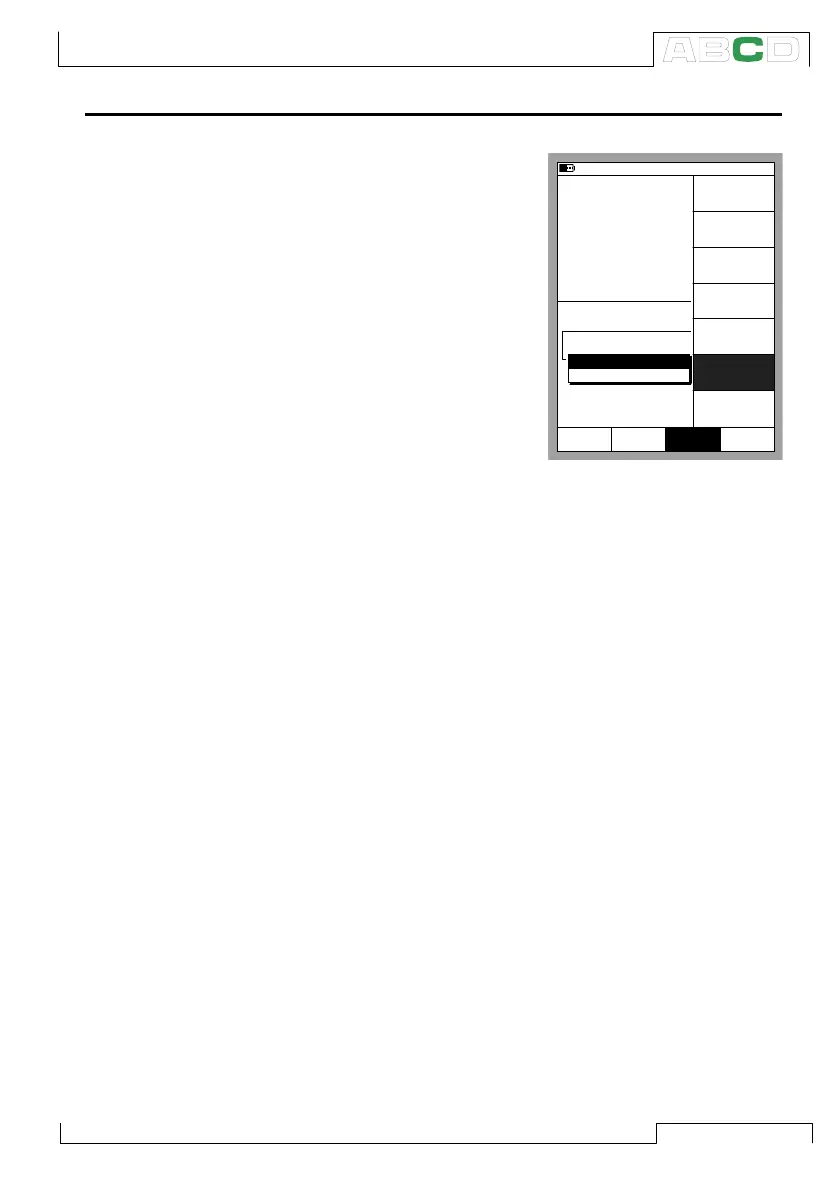

tion. A pop-up list appears where
you can select whether you want
to simulate a transmitter or a
switch.
Note.
To be able to start the Transmitter/Switch Simulation, both Ba-
sic Mode windows need to be configured accordingly. If, e.g.
window 2 is not assigned for generating/simulating a signal,
MC5P can not start transmitter simulation.
