Current Measurement Parallel to a Test Diode, Connections

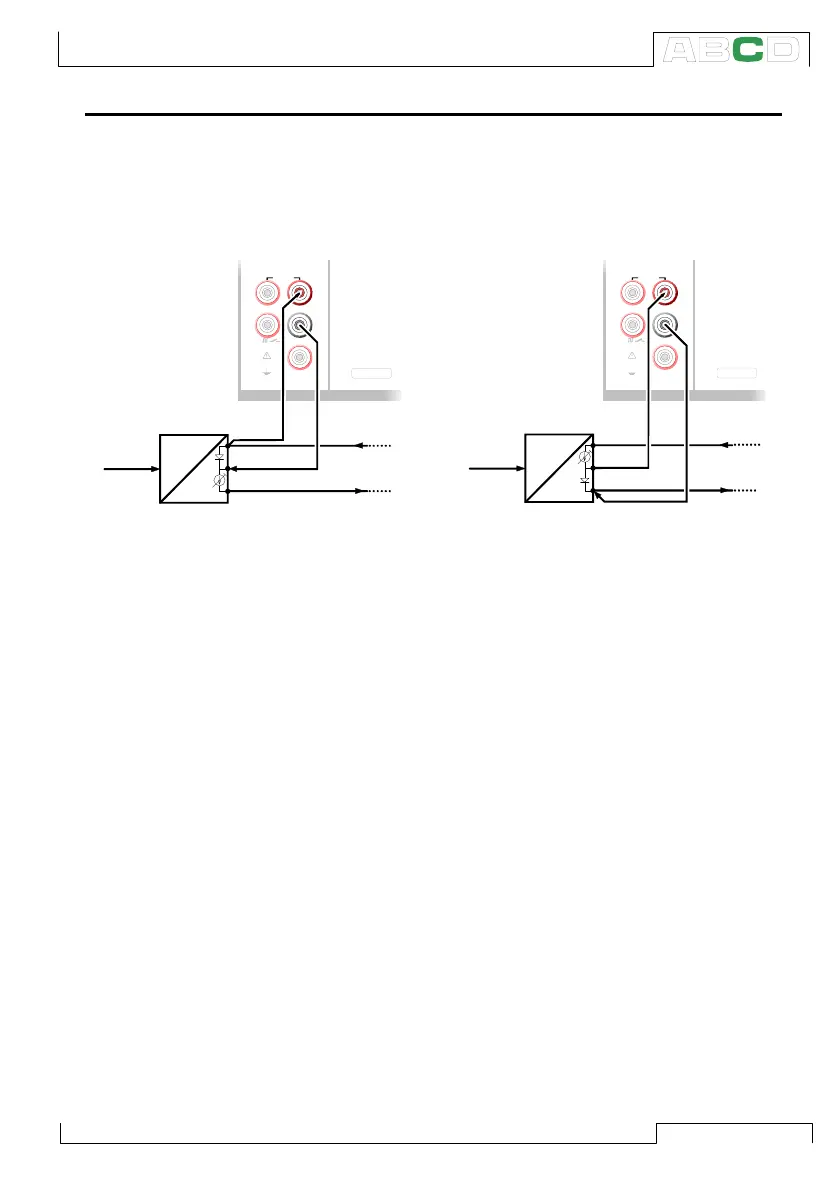

The impedance of MC5P’s milliampere input is low enough to enable current measure-
ment parallel to a test diode in a 20 mA circuit. Connections:
Plus Side Test Diode Minus Side Test Diode
MC5P parallels the test diode of the transmitter and measures the
externally supplied output current of the transmitter. For more infor-
mation concerning test diode connections of HART instruments,
see Appendix 1, chapter Connecting MC5P and a HART Instru-
ment on page 138.
Note.
In higher temperatures: The leakage of the diode in the instrument
may affect the accuracy.
