BEAMEX MC5P - Pulse Counting

45
Pulse Counting

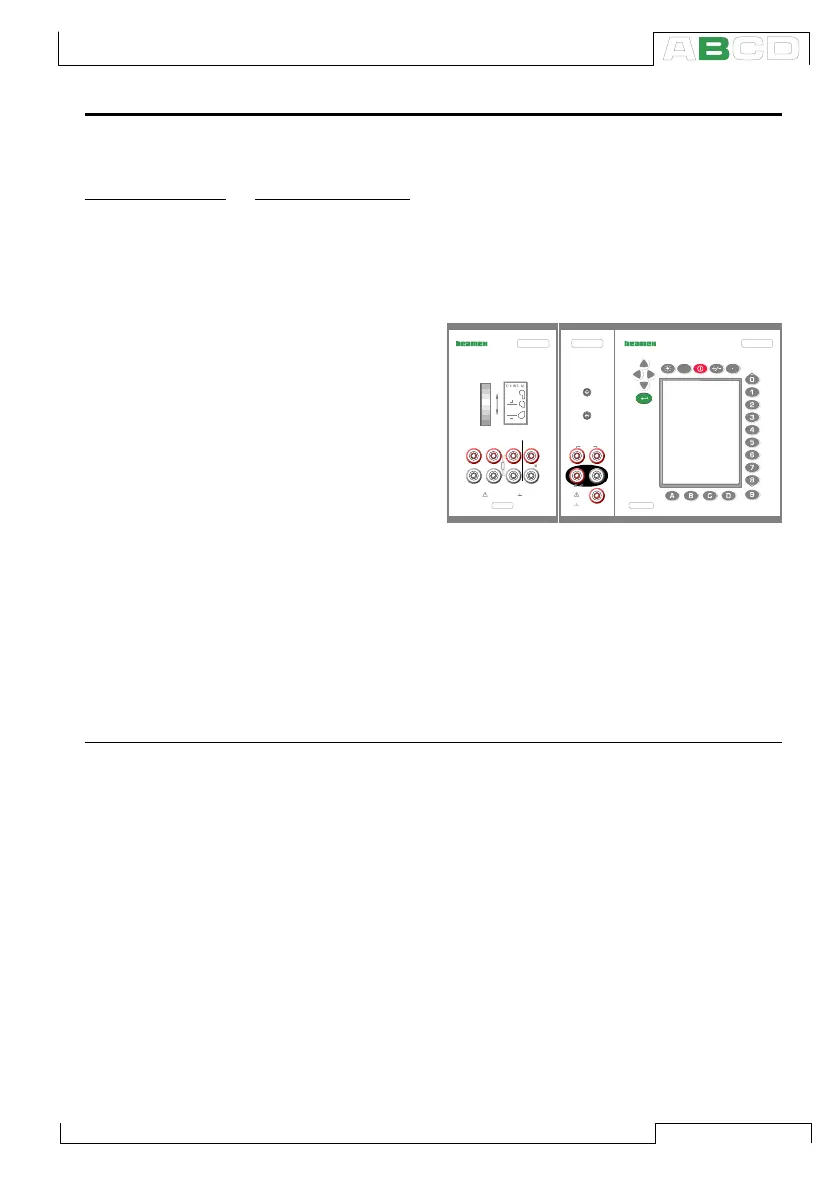

The pulse counter terminals are located in the E module.
Required settings Options/description
Quantity Pulses
Funct/Port E: Pls(count)
Also check the Trigg.Edge setting.
MC5P compares the external potential
against an adjustable reference voltage
(Trigger Level, range: -1 … +15 V) when
counting pulses.
The counter may be cleared (zeroed) by selecting
D/Menu, 6/Clear counter.
Next…
Frequency Measurement on page 44
Switch State Sensing on page 41
Pulse Generation on page 61
Calibration, see Part D.
ELECTRICAL MODULE
FOR MC5P
S/N
MULTIFUNCTION CALIBRATOR
MC5PE
?
ET
ELECTRICAL AND TEMPERATURE MODULE
FOR MC5P
S/N
Max 60 VDC/30 VAC
Max 60 VDC
Max 30 VAC
OUTPUTSENSOR MEASURE & SIMULATE
INTERNAL REFERENCE JUNCTION
FOR THERMOCOUPLES
T/C, Low V
4-w meas
R, RTD
V, I,
3 & 4-w meas
Open
Close
Open
Close
T/C INT. RJ
T/C
WIRES
ONLY
(ENV), ENVIRONMENTAL
TEMPERATURE SENSOR
(EXT), EXTERNAL
PRESSURE MODULE
MEASURE
+24V
I
meas/sink
HART
®
2-w xmtr
V, ,
Low V
Com
Measuring
