Cutter Maintenance B-3
Removing the Stylus Holder
Follow these instructions to remove the stylus for adjusting, cleaning, or replacing.
Step 1: Turn the power off, then open the printer.
Step 2: Move the stylus holder mechanism to the center of the track, to make it easier to
work with.
Step 3: To disengage the stylus holder, turn it counterclockwise to unscrew it, as shown in
Figure B-1.

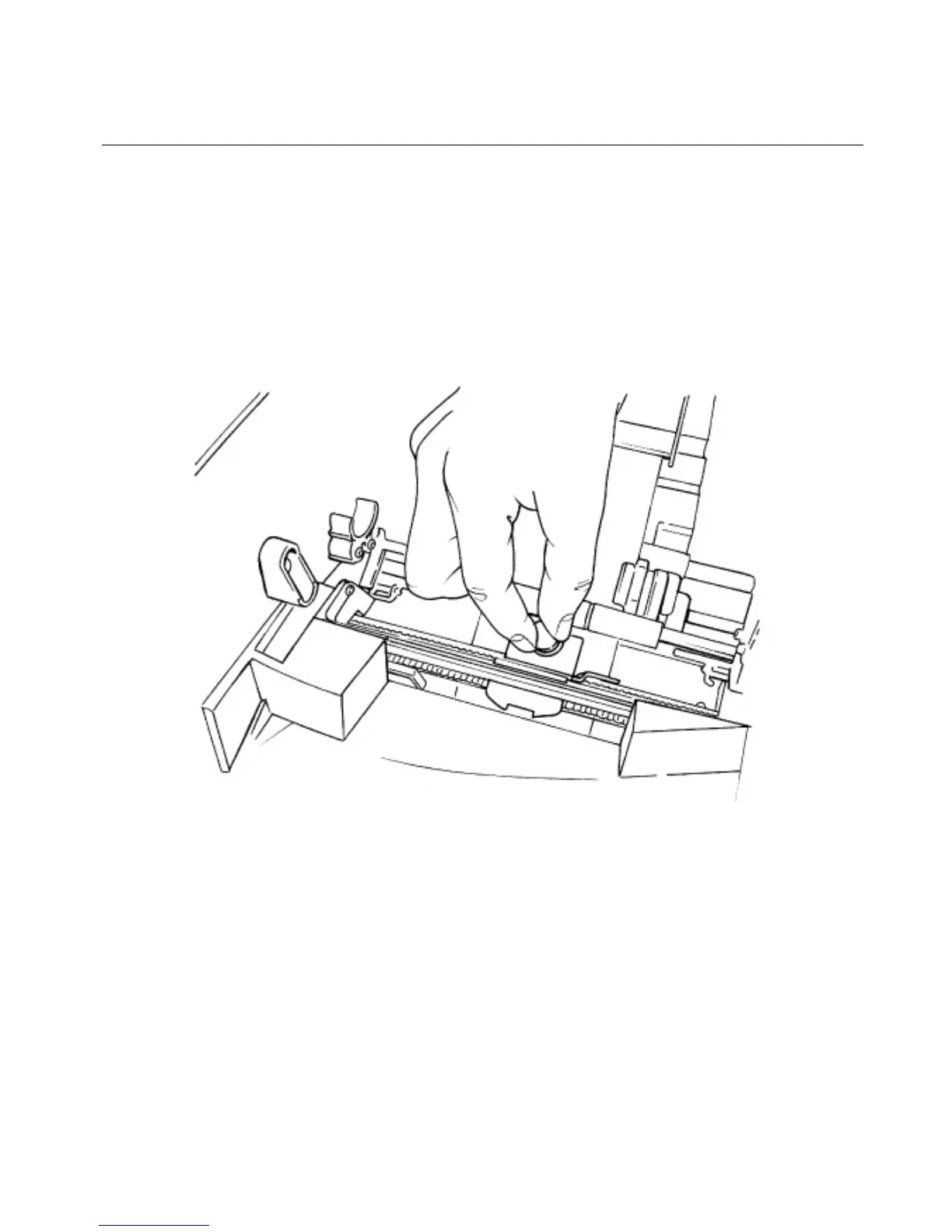

Figure B-1. Removing the stylus holder.
Step 4: Pull straight up to remove the stylus holder from the tracking mechanism.
