B-4 îš¡ Adjusting the Cut Depth
Adjusting the Cut Depth
You may need to adjust the stylus blade on your cutter when:
z The cuts on your cut out labels are either too deep or too shallow.
z You install tape supplies of varying thickness.
The stylus holder has an adjustment dial you use to change the depth at which the
stylus blade cuts the tape.
Step 1: Turn the power off, and open the printer. Follow the instructions in the Removing
the Stylus Holder section above to remove the stylus holder, shown here:

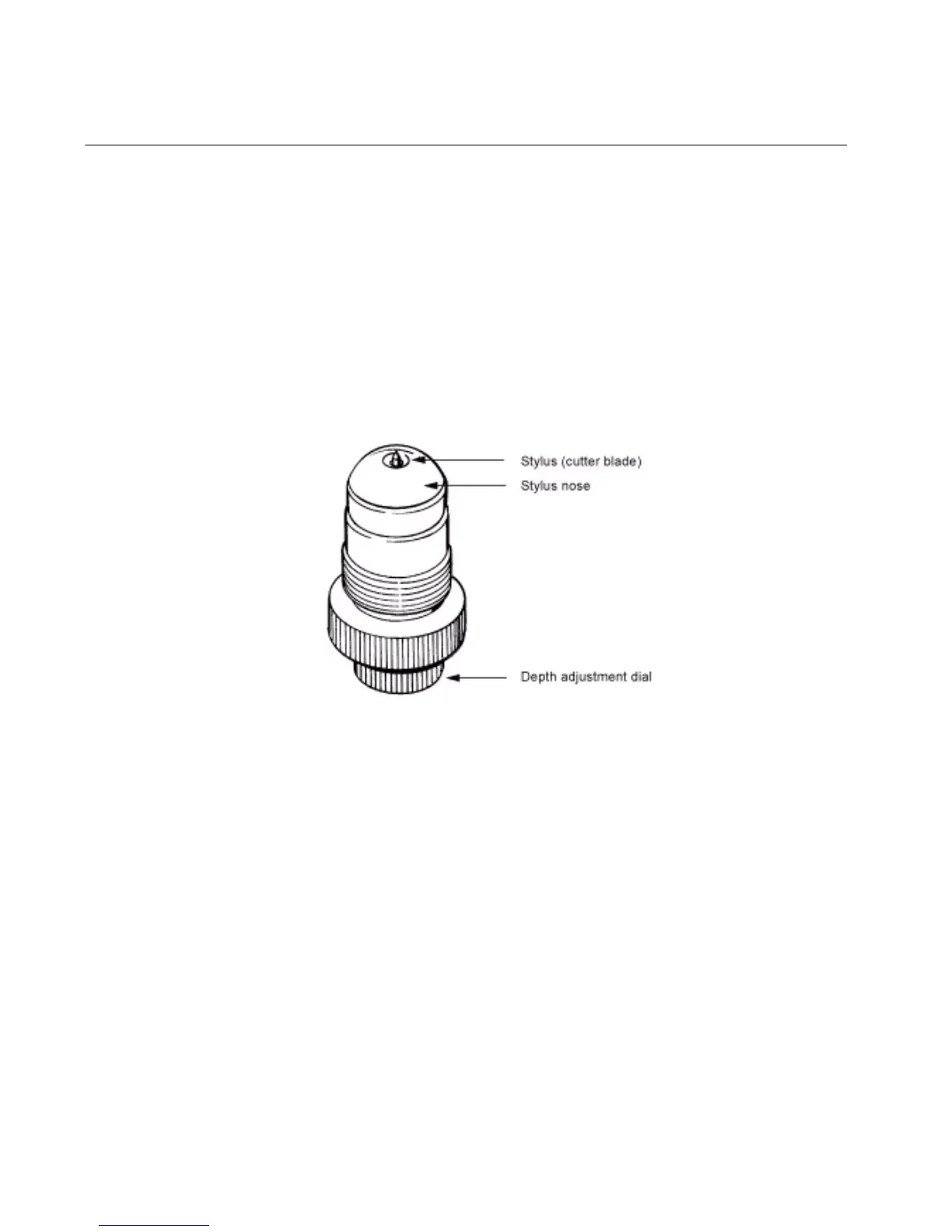

Figure B-2. The stylus holder.
The stylus blade protrudes very slightly from the stylus nose. The stylus glides
across the tape when cutting your label.
