Cutter Maintenance B-7
Replacing the Stylus Blade
At some point, especially after prolonged use with specialty tapes, you may have to
replace the stylus blade.
Step 1: Turn the power off, and open the printer. Follow the instructions in Removing the
Stylus Holder on page B-3.

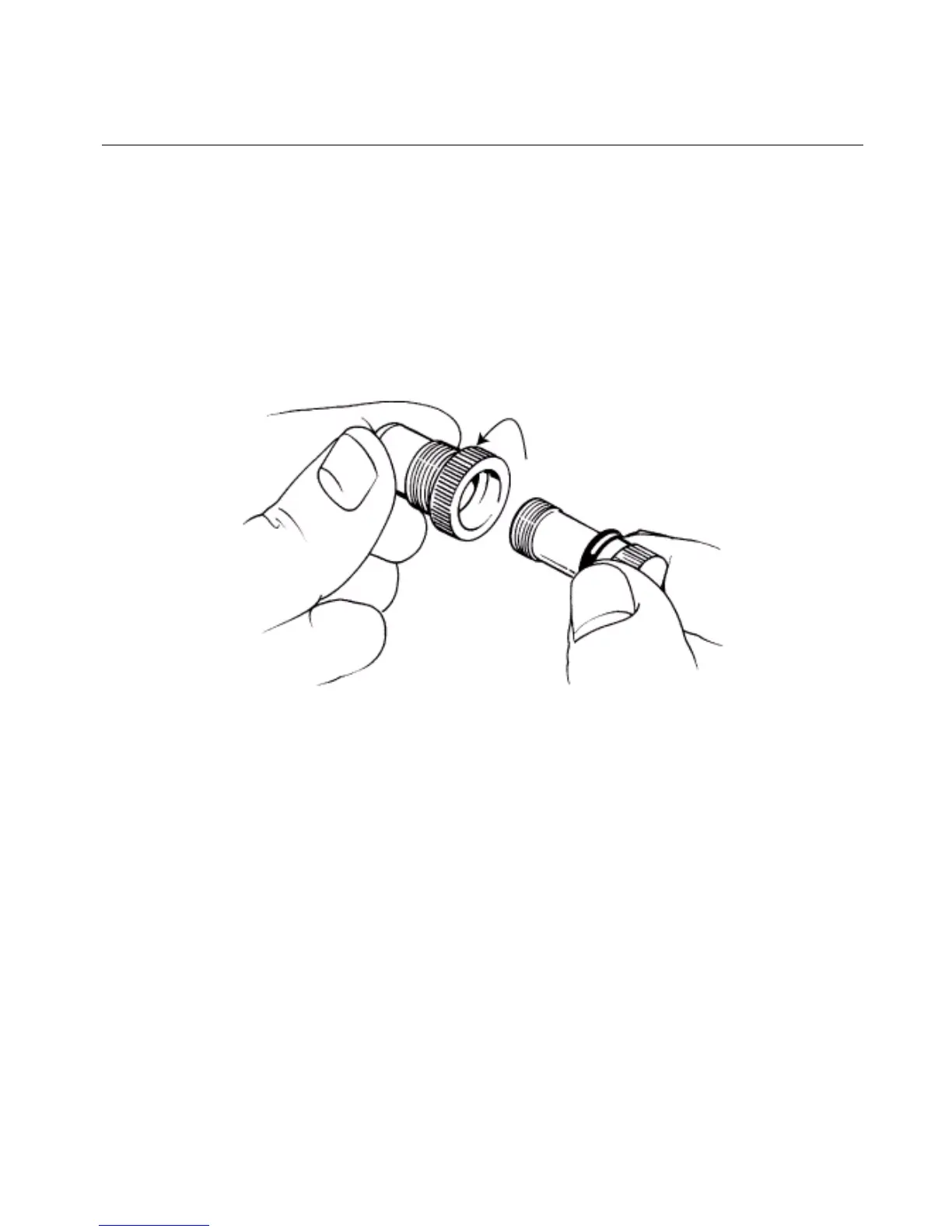

Step 2: Holding the stylus holder in both hands as shown below, keep the nose end of the
mechanism stable and turn the other end counterclockwise, loosening it until the
two parts separate. new diagram
Figure B-5. Detaching the stylus.
