B-6 Adjusting the Cut Depth
2. Holding the stylus holder perpendicular to the surface, glide the stylus nose
lightly cross the tape. need diagram with new stylus holder

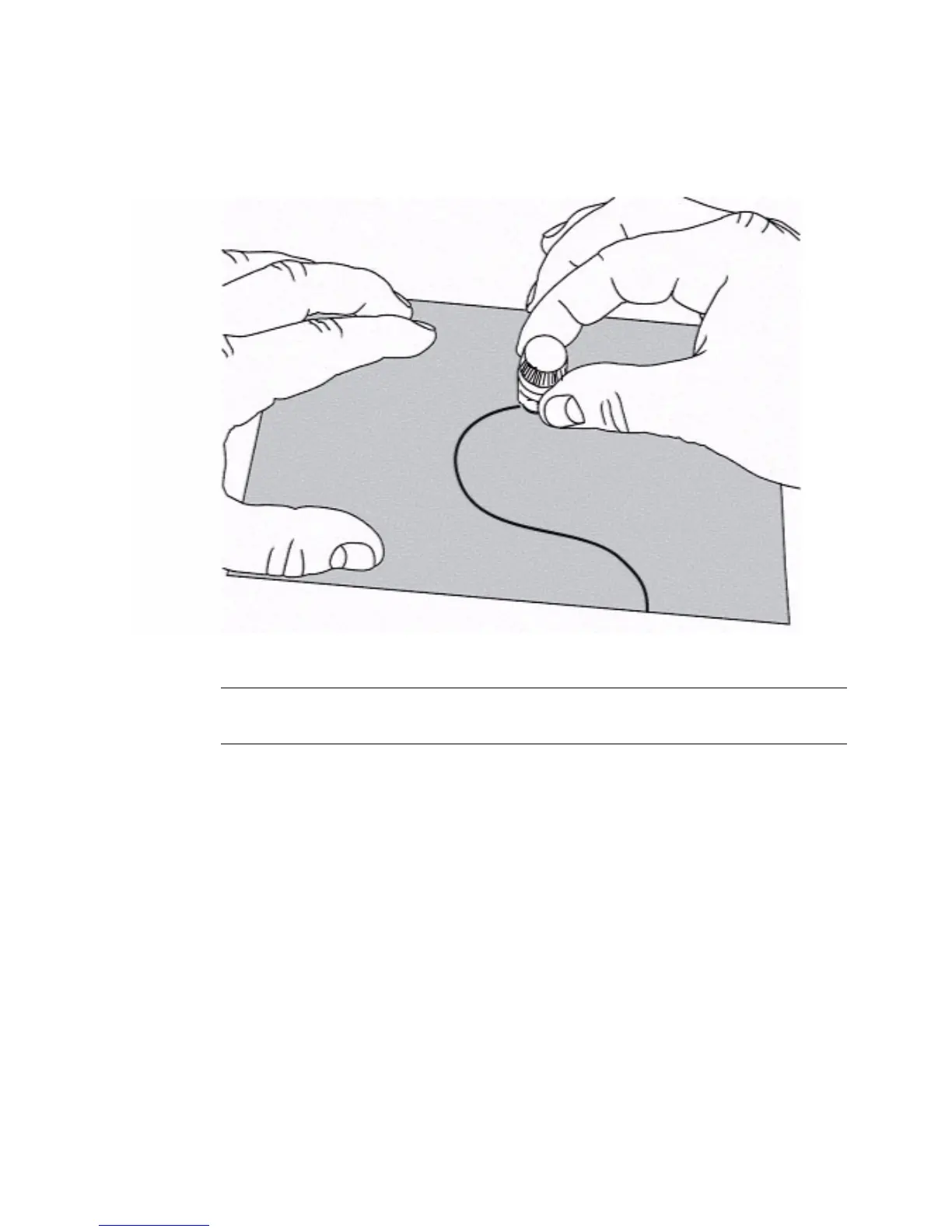

Figure B-4. Testing cutting depth.
Note: Apply slight pressure. Make sure the stylus holder is positioned straight
vertically.
3. Check the tape to see if the cut is correct. The cut should go through the tape,
but leave the backing paper unscored.
Step 5: Make any adjustments required to the stylus depth, then test again.
Step 6: Reinstall the stylus holder. Seat it in the mechanism, then turn it clockwise until it
stops.
