Cutter Maintenance îš¡ B-9
Step 1: Turn the power off, and open the printer. Remove the stylus as described in Steps 1
and 2 in
Removing the Stylus Holder on page B-3.

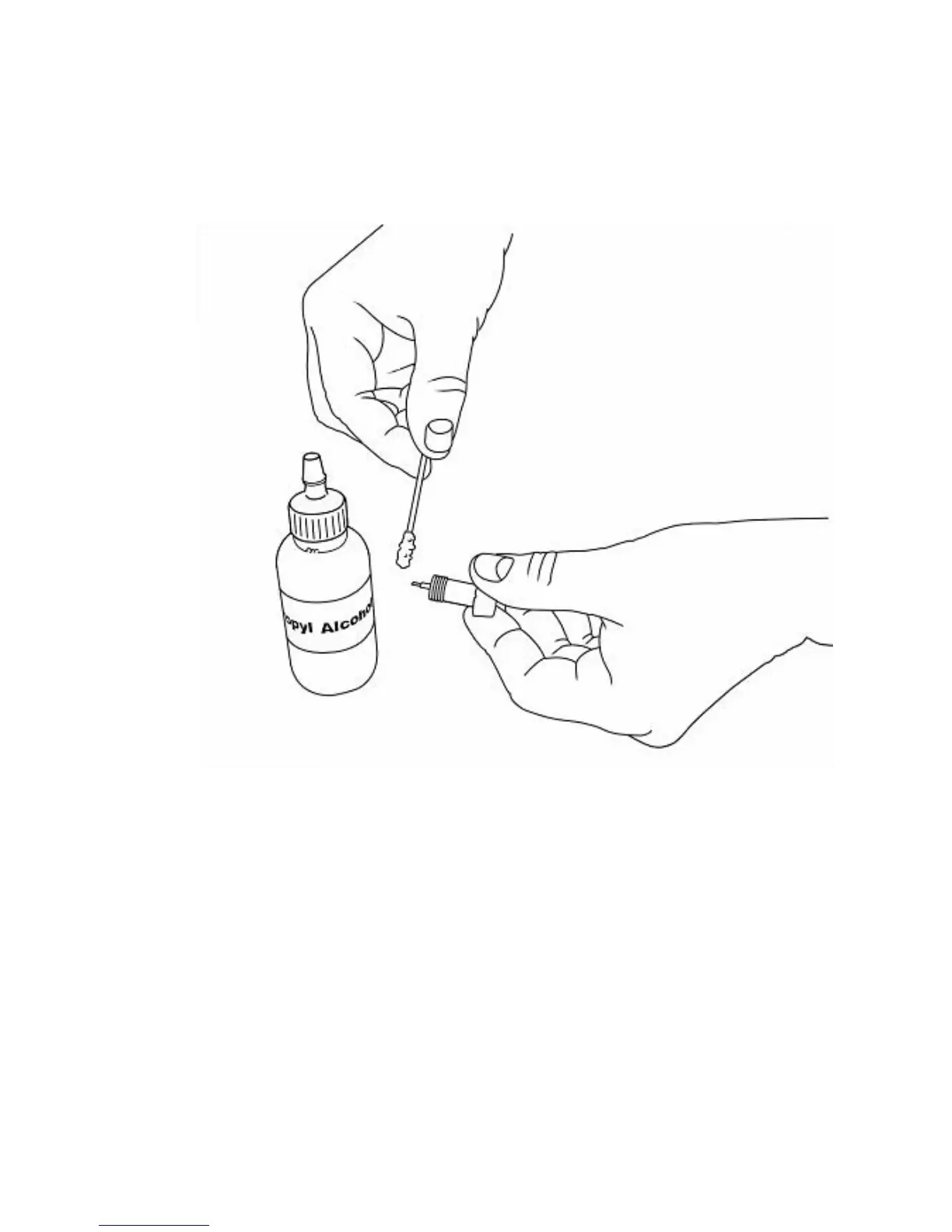

Step 2: Apply alcohol to the cotton swab, and wipe the stylus blade as shown here:
Figure B-7. Cleaning the stylus blade.
Step 3: Reconnect the two parts of the stylus holder:
Push the blade holder as far down as possible, then turn it clockwise, until you feel
the threads engage. Turn until the stylus protrudes from the opening, as shown in
Figure B-2 on page B-4
Step 4: Adjust the blade depth. Follow the instructions in Adjusting the Cut Depth on
page B-4.
Step 5: Reinstall the stylus holder. Seat it in the mechanism, then turn it clockwise until it’s
securely seated.
