3-83
Confidential

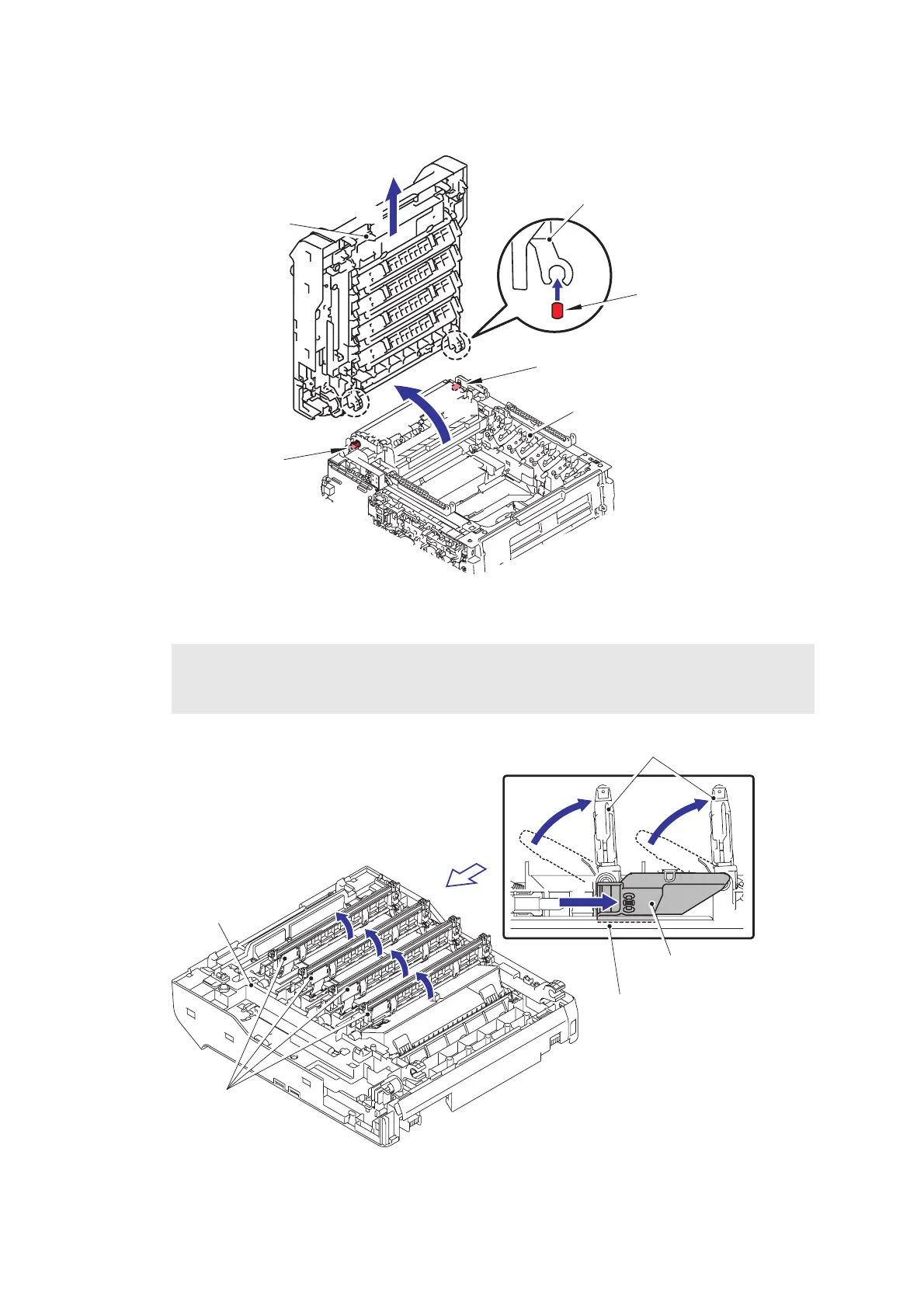

(9) Remove the Joint cover ASSY from the two Bosses of the Main body.
Fig. 3-103
Fig. 3-104
Note:
If the LED ASSY is laid down, slide the Push arm of the Sub frame ASSY in the direction of
the arrow "a" to raise the LED ASSY before performing this step.
Main body
Boss
Boss
Boss
Joint cover ASSY
Joint cover ASSY
9a
9b
<Front side>
LED ASSY
Sub frame ASSY
Sub frame ASSY
Push arm
A view
<A view>
LED ASSY
a
