3-84
Confidential

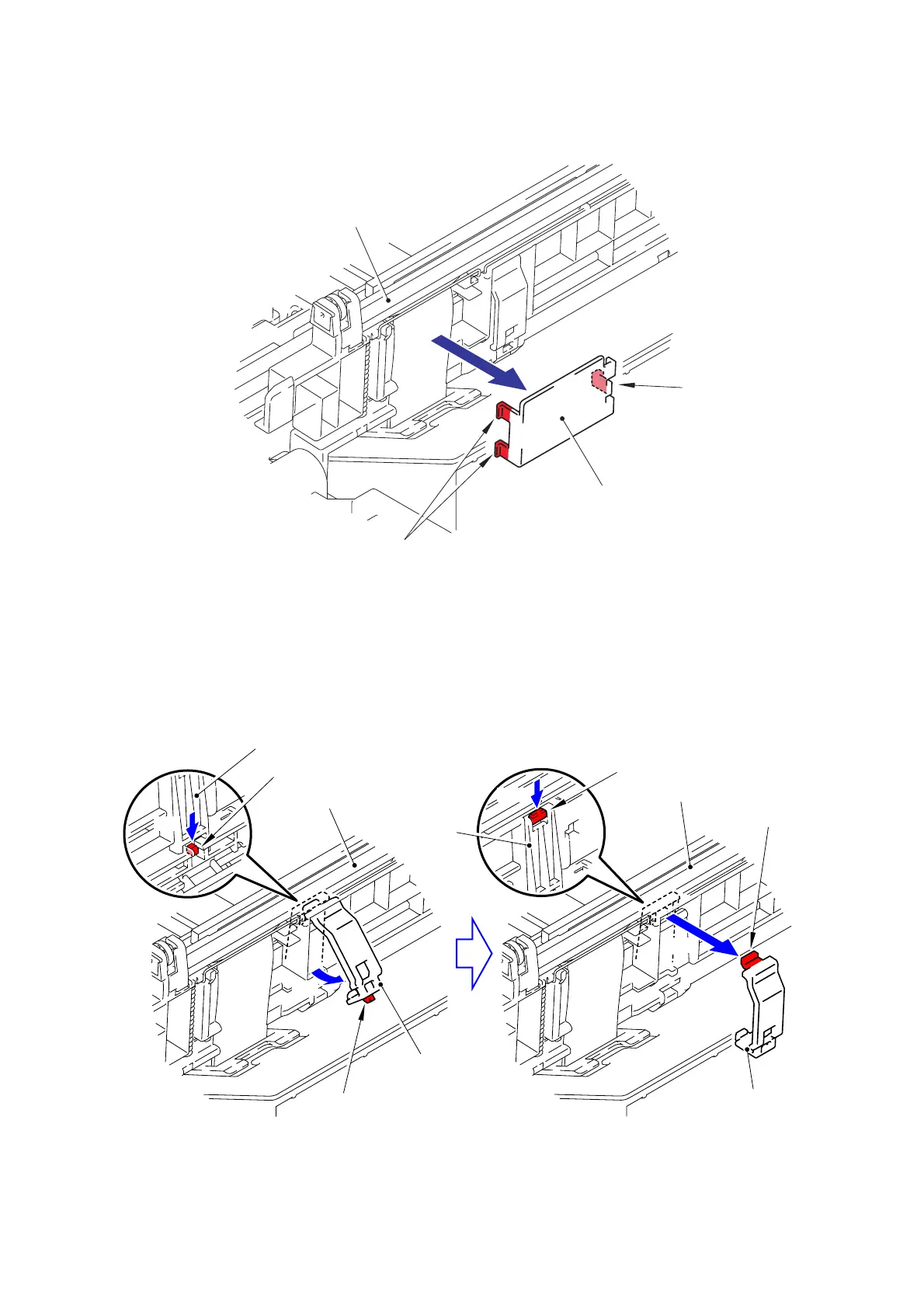

(10) Release the three Hooks to remove the Flat cable cover from the LED ASSY.
Fig. 3-105
(11) Release the Hook of the Holder hook by the driver from the back side of the LED ASSY.
(12) Release the Hook of the upper side to remove the Holder hook on the left side from the
left side of the LED ASSY.
(13) Remove the Holder hook on the right side in the same way.
Fig. 3-106
Hook
Hook
Flat cable cover
LED ASSY
LED ASSY
LED ASSY
Hook
Hook
Hook
Hook
LED ASSY
LED ASSY
Holder hook
Holder hook
12a
12b
11a
11b
