FI002K0018v1530hUK – THS/21 Instruction manual for installation, use and maintenance
5
MAINTENANCE
ORIGINAL INSTRUCTION 173

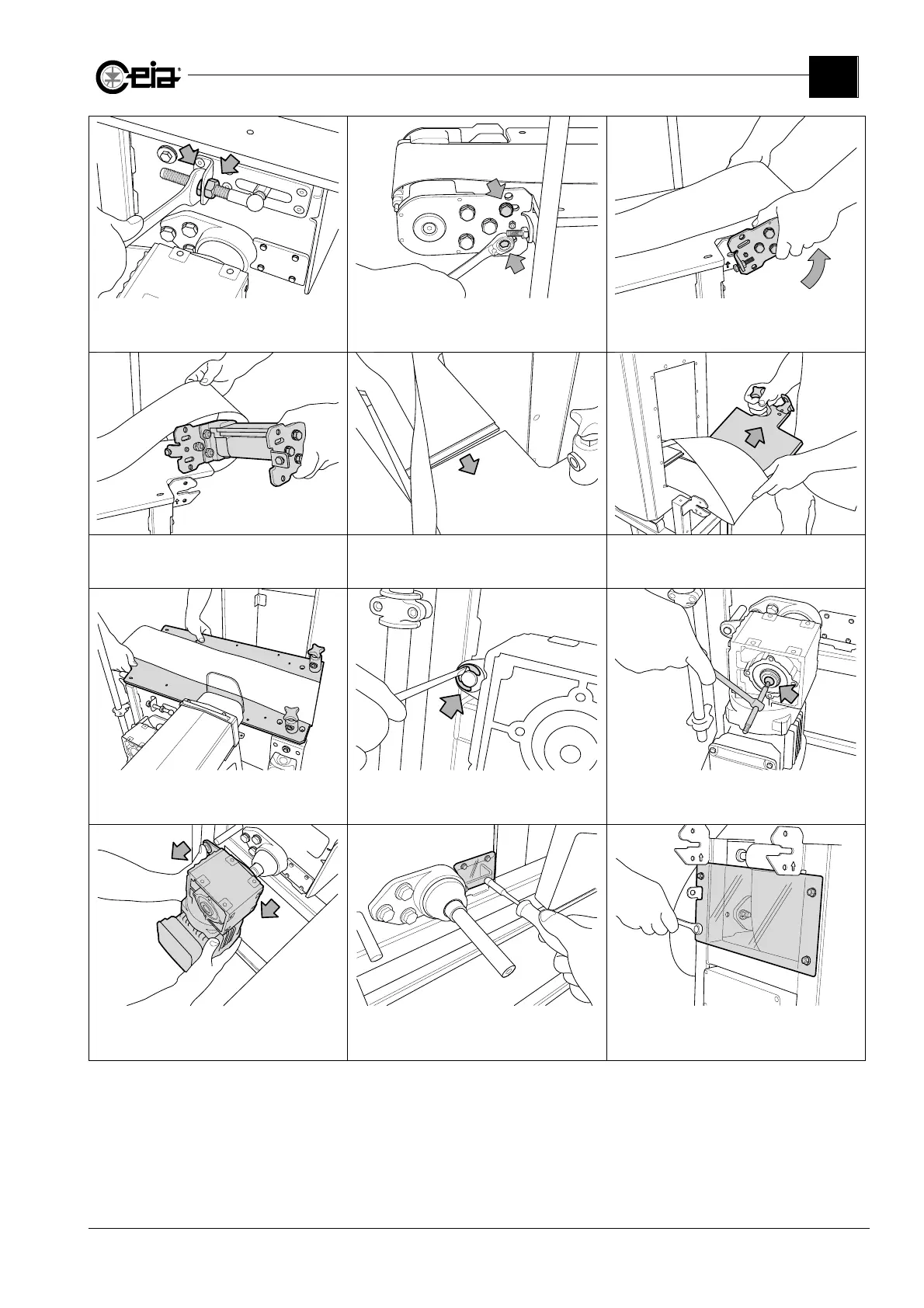

Using a N.19 wrench, unlock and loose the
two indicated nuts, on both sides, so as to
loose the conveyor belt tension.
Using a N.13 wrench remove the output
rolle group bolts indicates above, from
both sides of the conveyor belt.
Grab the output roller group with two
hands and rotate it upward.
Pull the roller group away from under the
conveyor belt. Repeat the last three steps
with the input roller group.
Remove the input sliding surface from the
joint with the output sliding surface, as
shown above.
Remove the input sliding surface from
under the conveyor belt.
Remove the output sliding surface from
under the conveyor belt.
Using a flat screwdriver, remove the
indicated Sieger, located on motor left
side.
Using a N.5 Allen wrench, unlock the
motor shaft.
Pull the motor block away from its shaft,
holding it with two hands and carefully
placing it on the ground.
Using a n.7 pipe wrench, remove the
transparent cover indicated above.
With a n.10 wrench, remove the output
transparent cover.
