MAINTENANCE
174 ORIGINAL INSTRUCTION

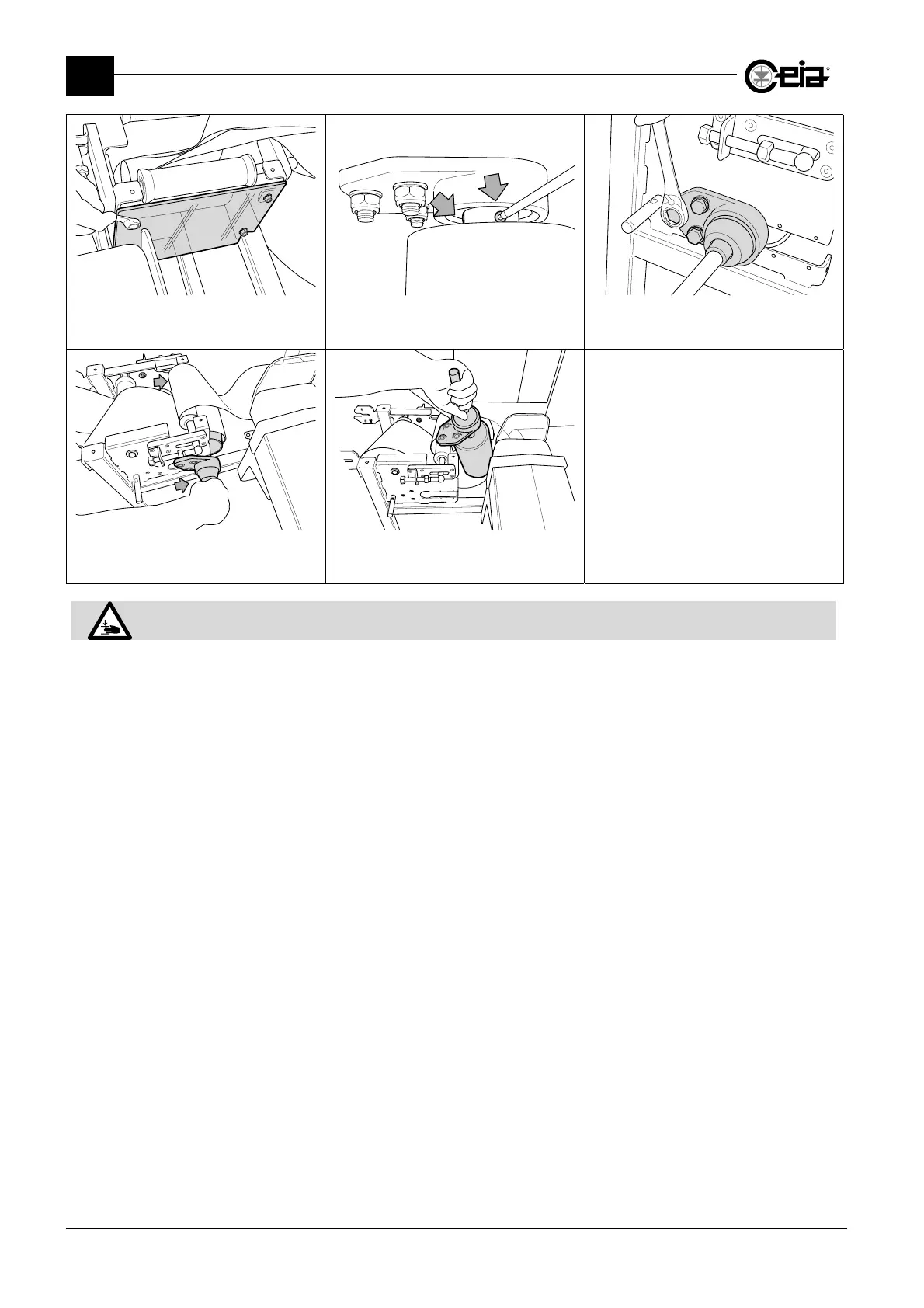

Remove the inner transparent cover. Using a n.3 Allen wrench, loose the two
grains in the main roller shaft
Using a n.17 wrench, unlock the motor
roller by removing the three indicated
bolts.
Push the motor roller horizontally
out of its position.
Remove the motor roller from under the
conveyor belt that is now free and can be
replaced.
Follow the procedure in reverse to re-assembly the conveyor belt.
Pay attention to the hands during the placement of some components, in order to avoid the risk of shearing.
