Air conditioning control system
Removal and installation of the compressor suction pipe assembly
△! Tips:
Every time the refrigerant pipeline is removed, all sealing rings on the refrigerant
pipeline must be replaced.
After removing the refrigerant circulation pipeline, pay attention to using sealing plugs
to seal the air conditioning circulation pipeline.
1. Use the air conditioning refrigerant
charging and discharging machine to
extract the refrigerant.

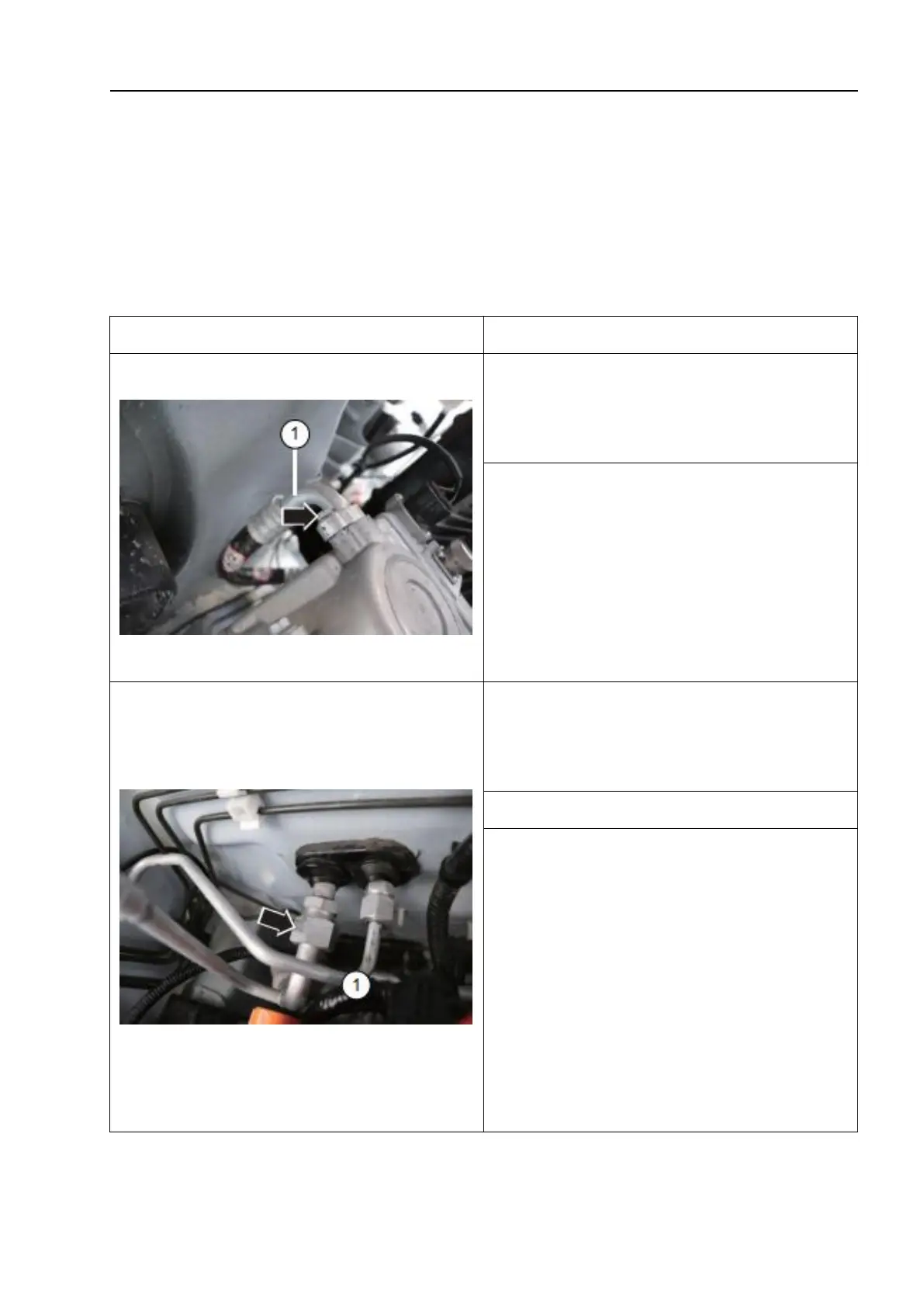

2. Unscrew the fixing bolts between the
compressor suction pipe and the
compressor, and disconnect the
compressor suction pipe - 1 -.
Bolt – as shown by the arrow- tightening
torque: 10~14N·m
3. Unscrew the compressor suction pipe
fixing nut, disconnect the compressor
suction pipe - 1 - and remove it.
1. The installation sequence is the reverse
of the removal sequence, noting the
following:
△!
Tips:
Fill the air conditioning refrigerant into
the air conditioning refrigerant charging
and discharging machine.
Check the air tightness of the
refrigerant circulation circuit.
